Removal And Installation: Notes
WARNING:
- Never repair or disassemble the front impact sensor. If faulty, replace it.
- Handle the front impact sensors very carefully, taking care not to drop them or otherwise a new one is required.
- Replace the sensors with new ones after the air bag has deployed.
NOTE:

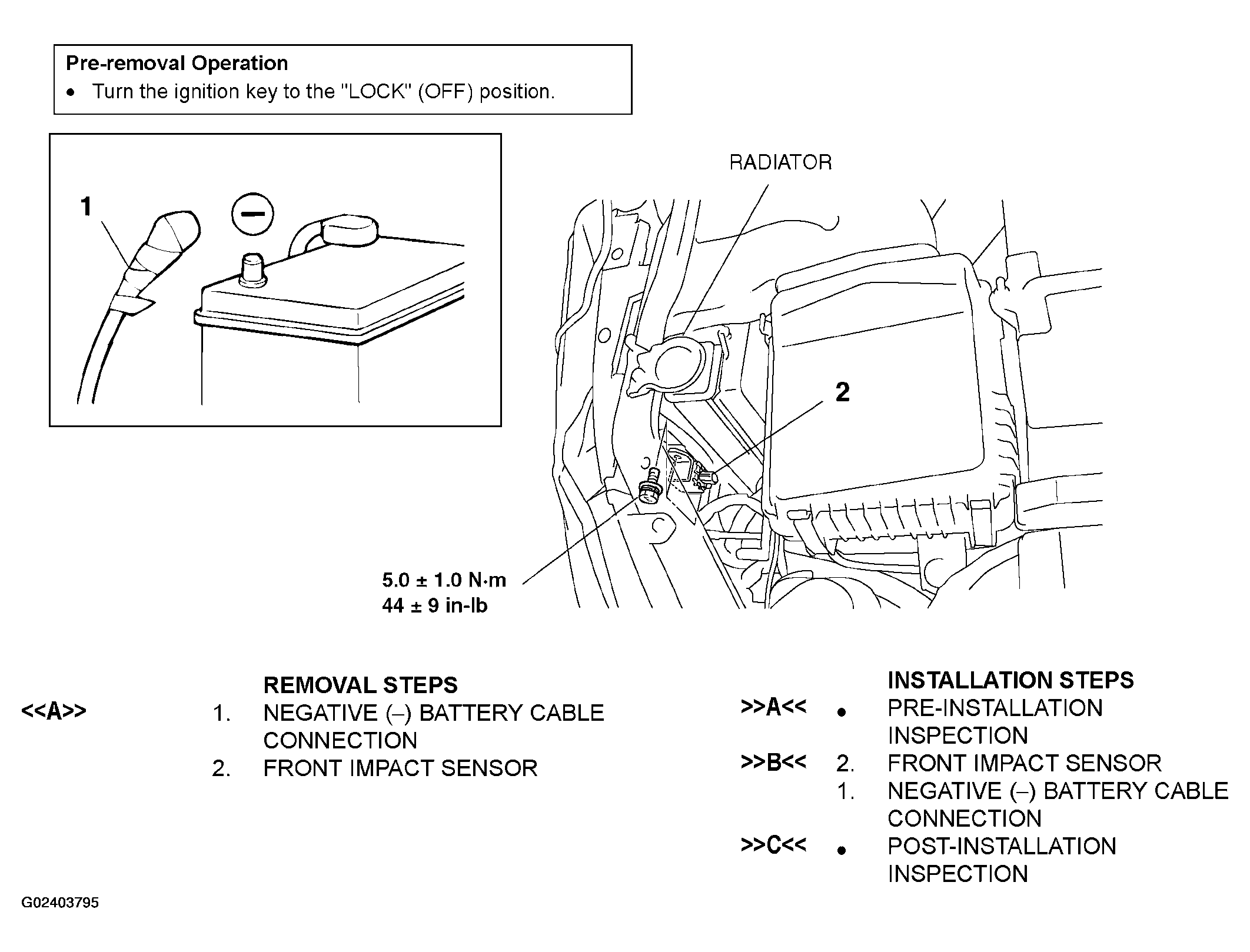

The illustration above shows the front impact sensor (LH). The position of the front impact sensor (RH) is symmetrical to this.
