Power Window Relay Check

WARNING: This page is about a different variant/trim than selected.

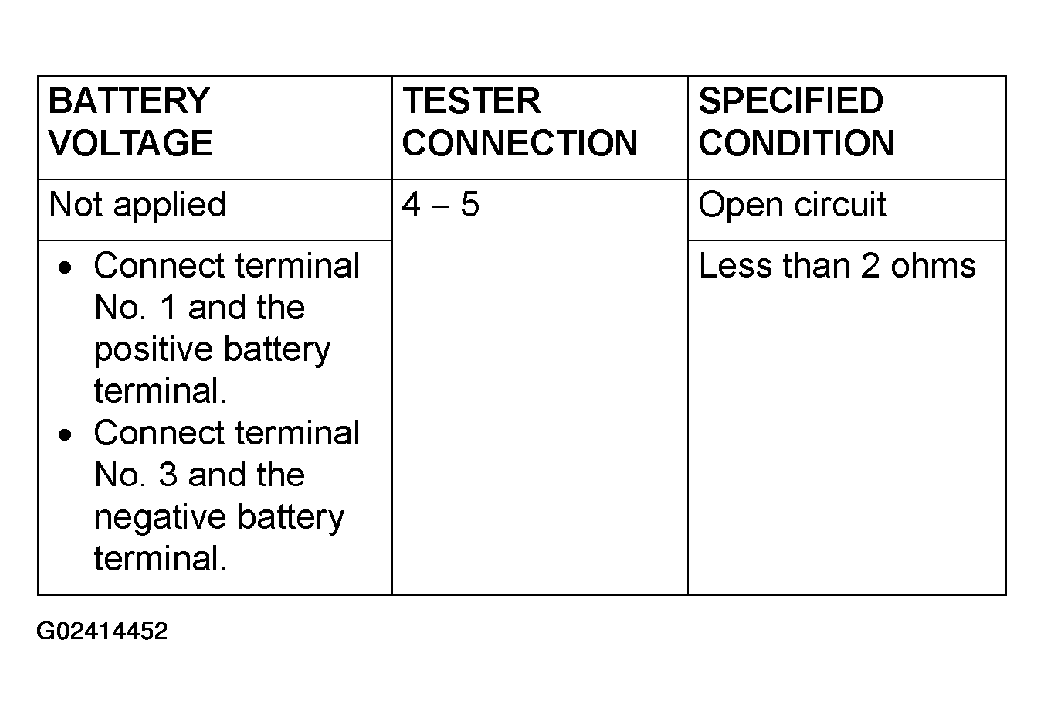

Fig 1: Checking Power Window Relay
G02414452Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Connector Terminal Voltage Specification Chart
G02414453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
