Section 26 (Overhaul)
>>
Second Brake
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes
WARNING:
This page is about a different variant/trim than selected.

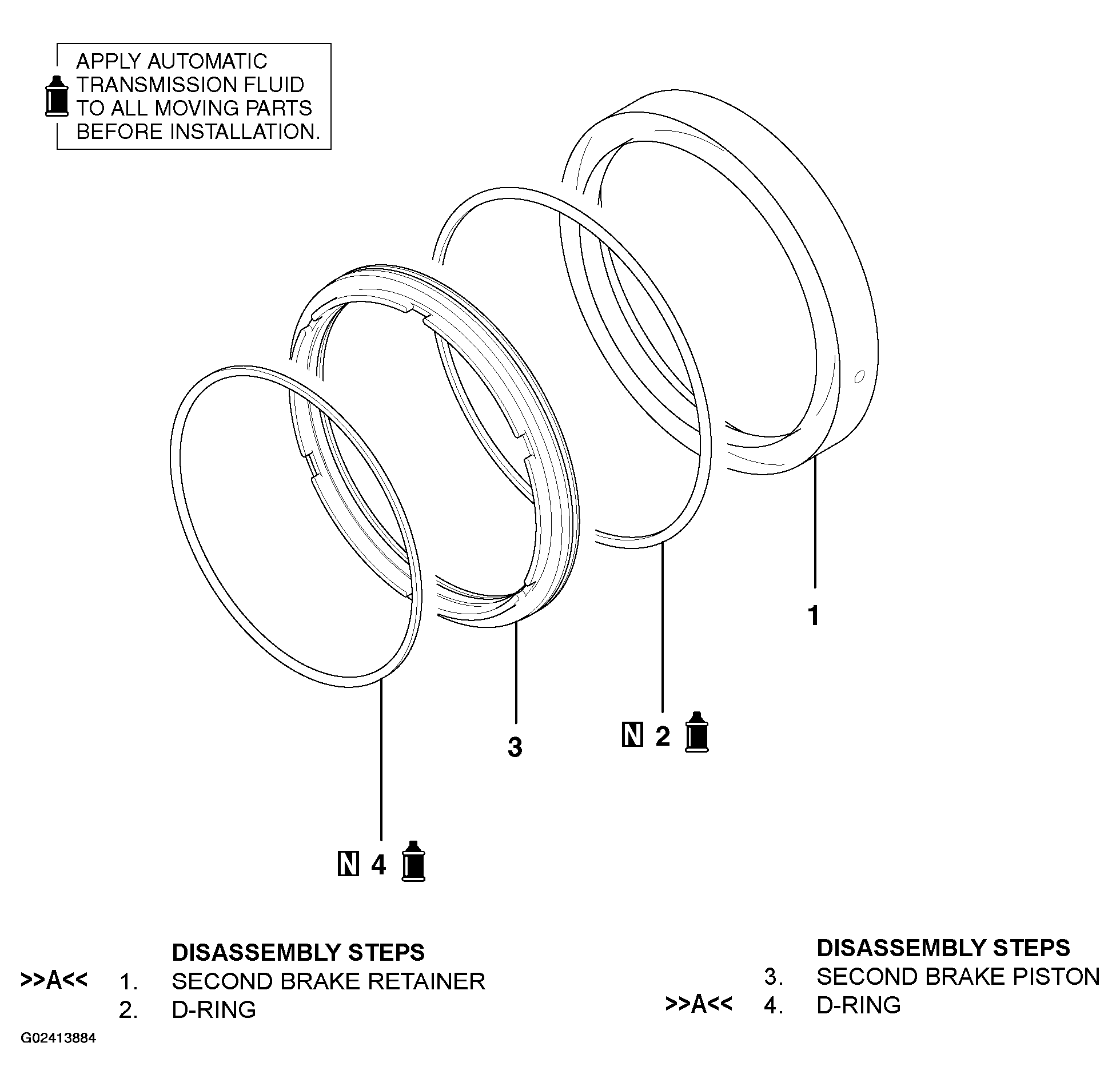

Fig 1: Exploded View Of Second Brake
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
