Section 24 (Basic Brake System -- Except Evolution)
>>
Rear Disc Brake Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

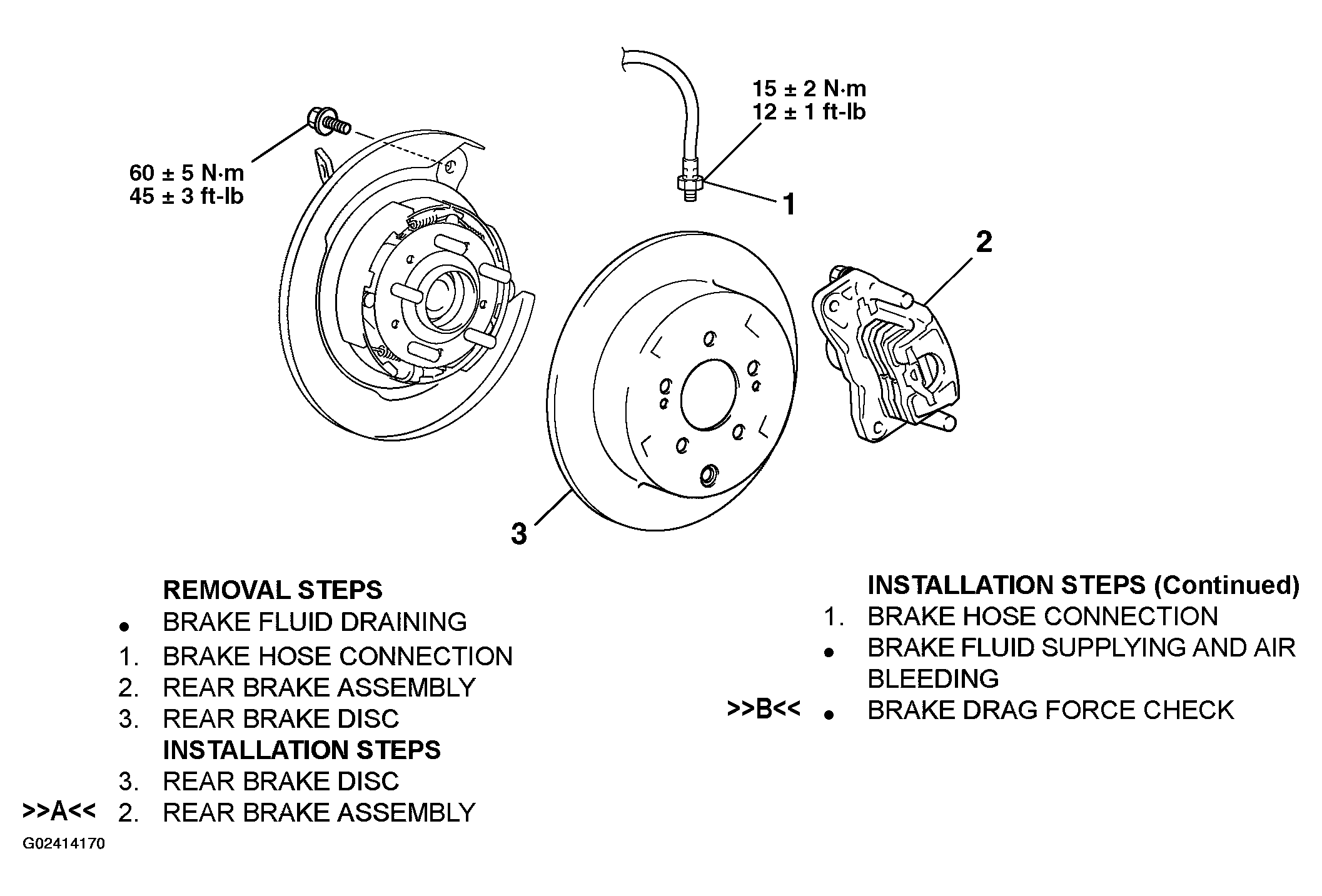

Fig 1: Removing Rear Disc Brake Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
