Lubrication Points

WARNING: This page is about a different variant/trim than selected.

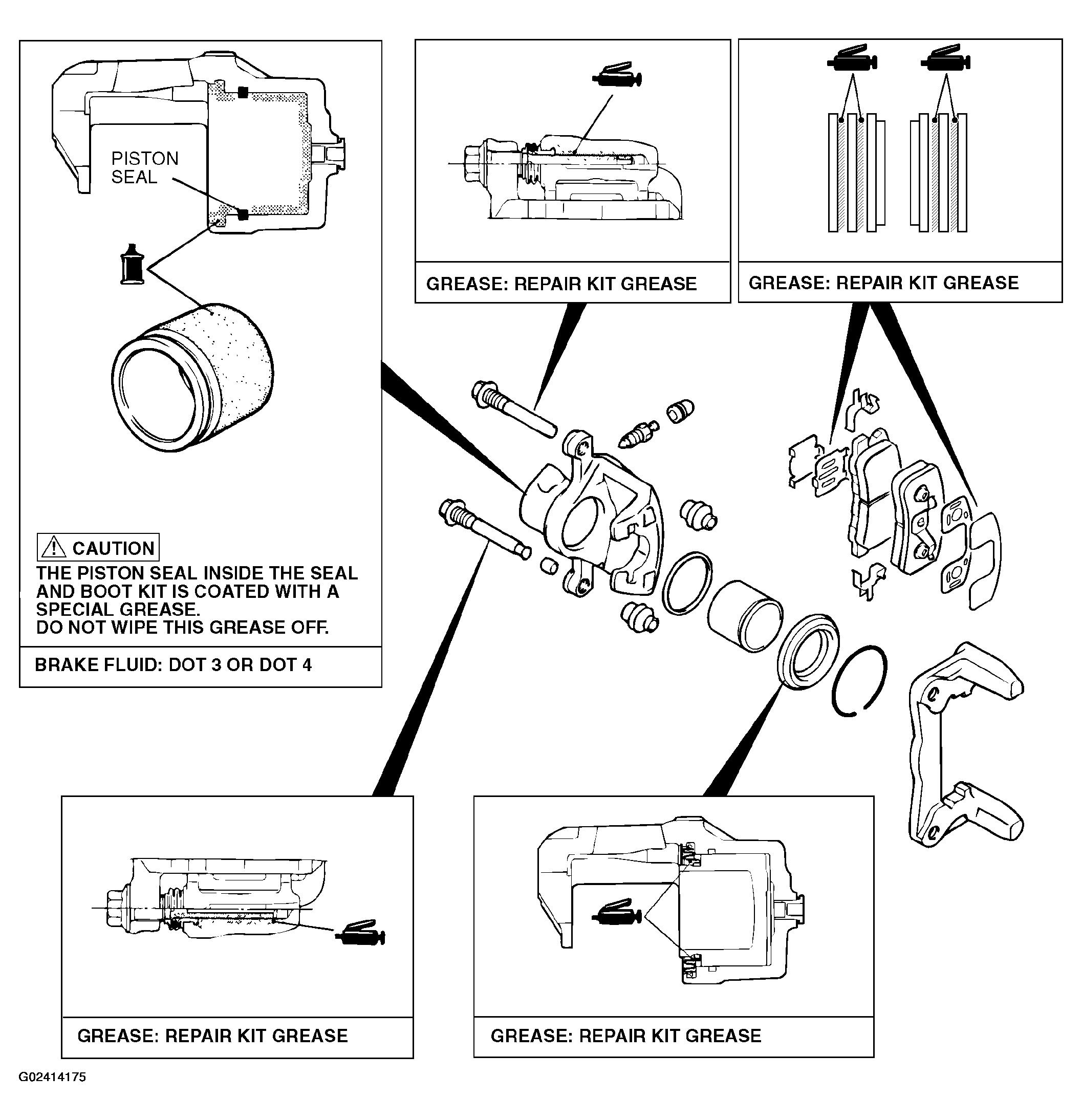

Fig 1: Identifying Lubrication Points Of Rear Disc Brake Assembly
G02414175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
