Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

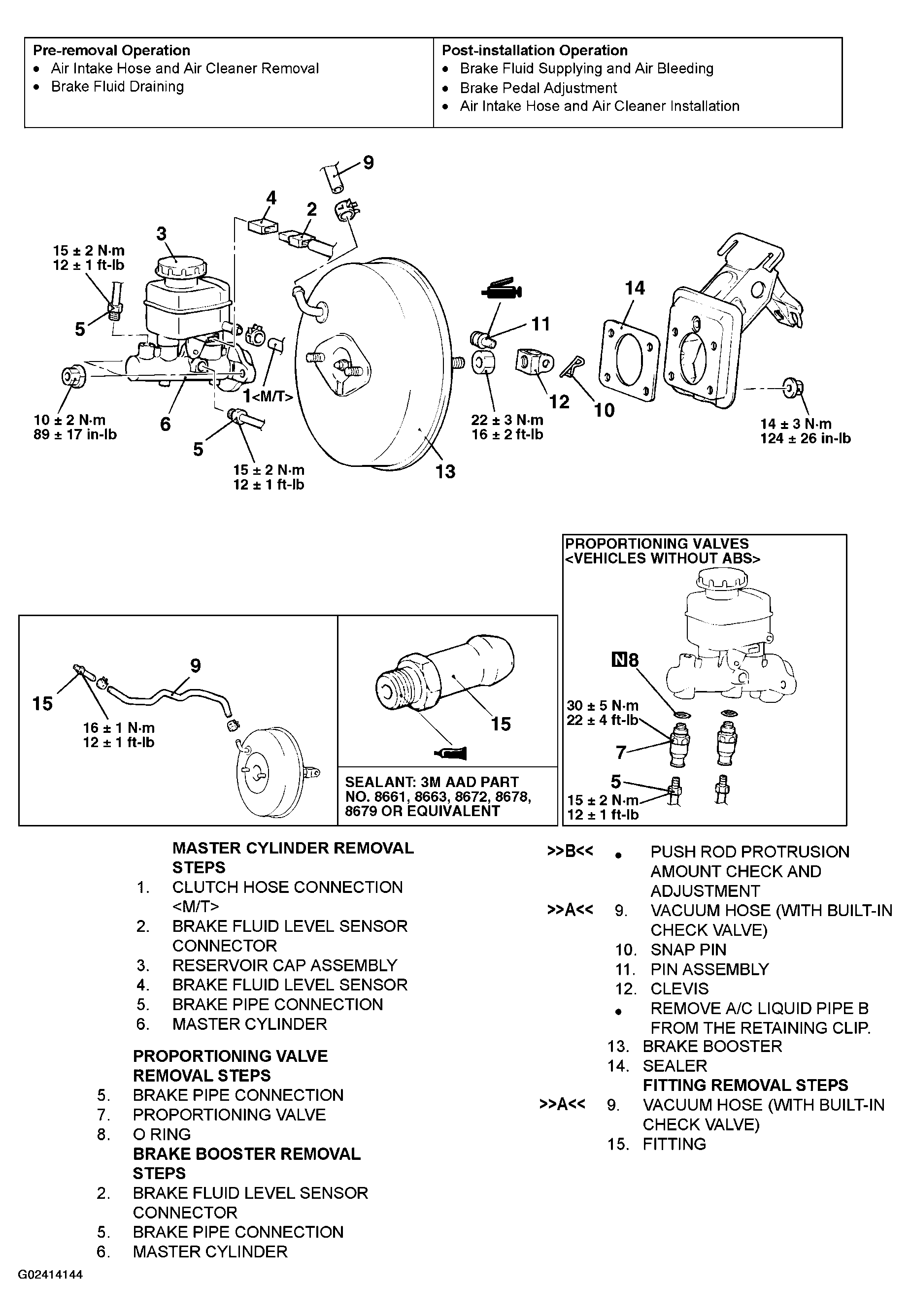

Fig 1: Removing Master Cylinder Assembly And Brake Booster
G02414144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
