Disassembly And Assembly <2.4 L>: Notes

WARNING: This page is about a different variant/trim than selected.

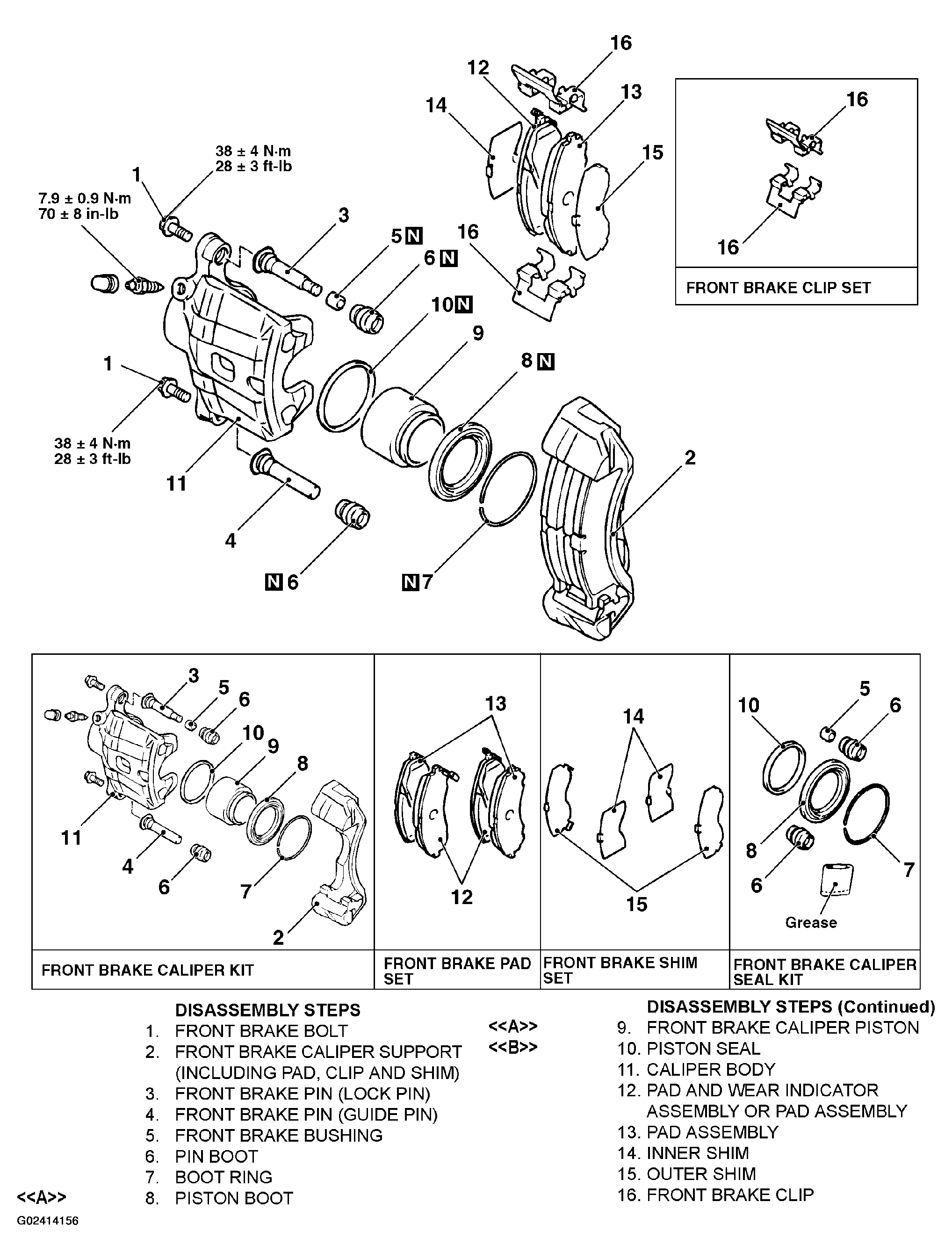

Fig 1: Disassembling View Of Disc Brake Assembly (2.4L)
G02414156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
