>> A << Stop Ring And Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.

Using a suitable pulling tool, pull the overrunning clutch stop ring over the snap ring.

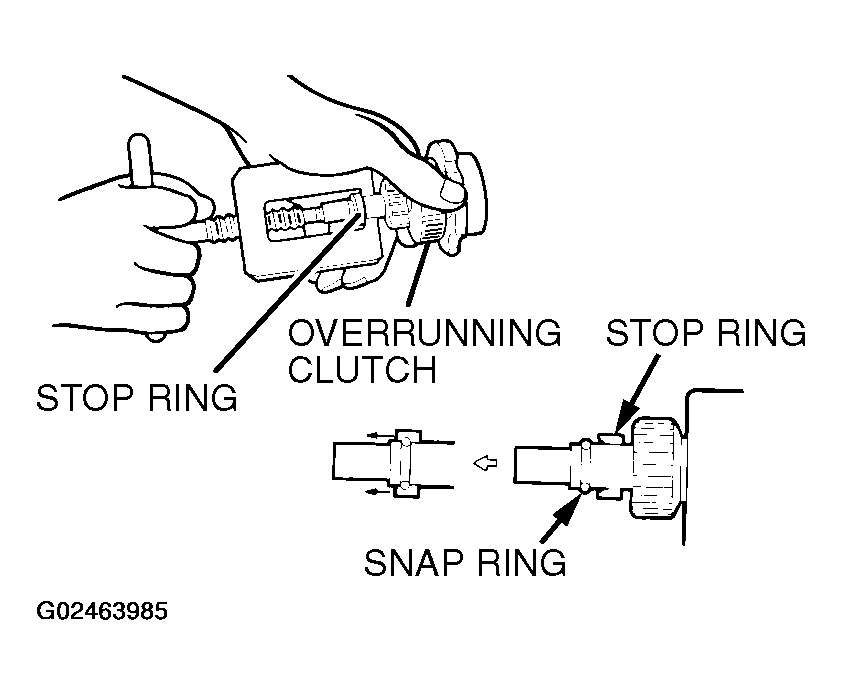

Fig 1: Pulling Overrunning Clutch Stop Ring Over Snap Ring
G02463985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
