Section 20 (Starting System -- Except Evolution)
>>
Starter Motor Assembly
>>
Disassembly And Assembly
>>
< 2.4L Engine >
< 2.4L Engine >
WARNING:
This page is about a different variant/trim than selected.

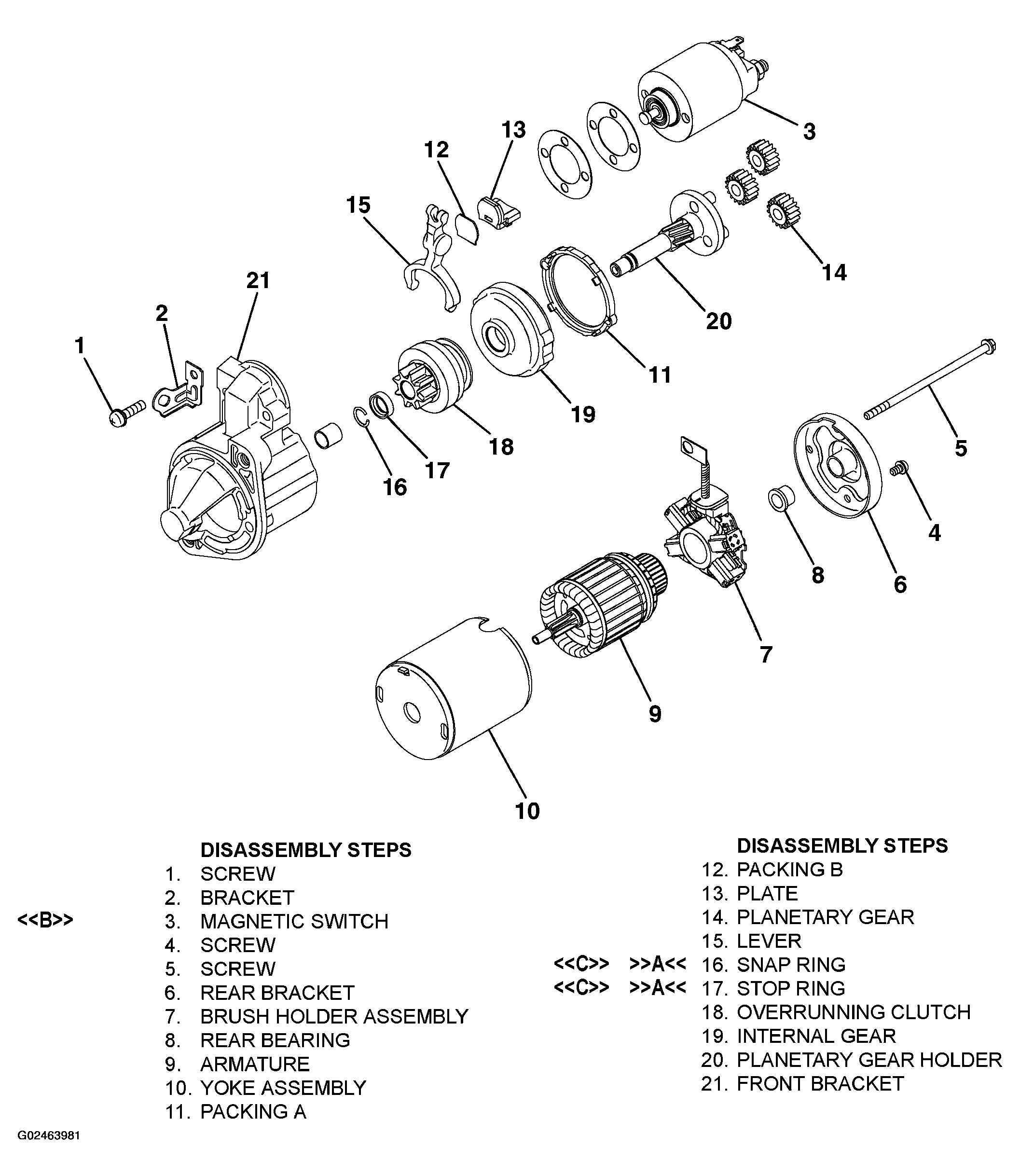

Fig 1: Identifying Components Of Starting system (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
