Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control -- Evolution >> Exhaust Gas RECIRCULATION (EGR) System >> Removal And Installation >> Notes

Removal And Installation: Notes

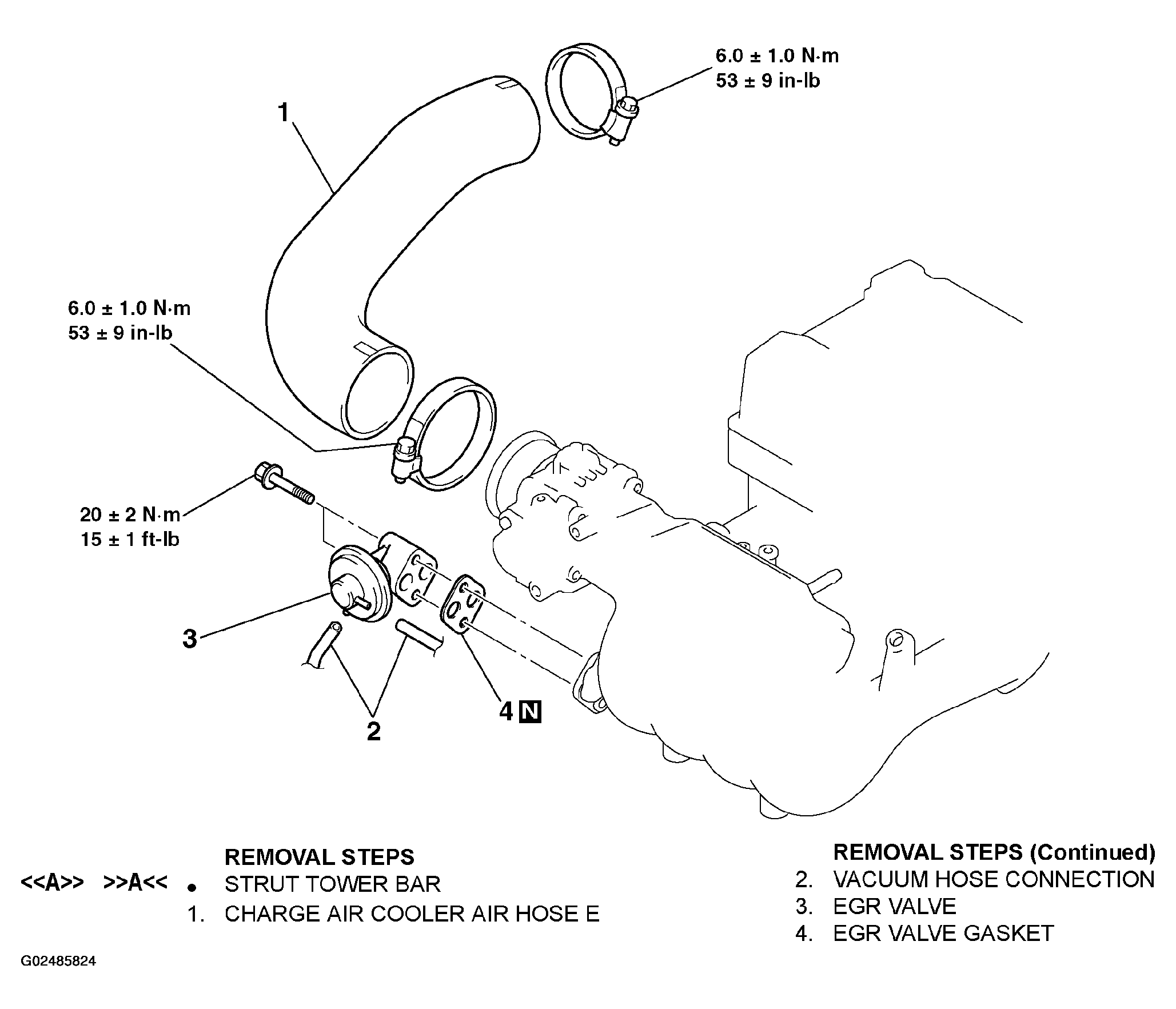

Fig 1: Removing/Installing Engine And Emission Control

G02485824

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
