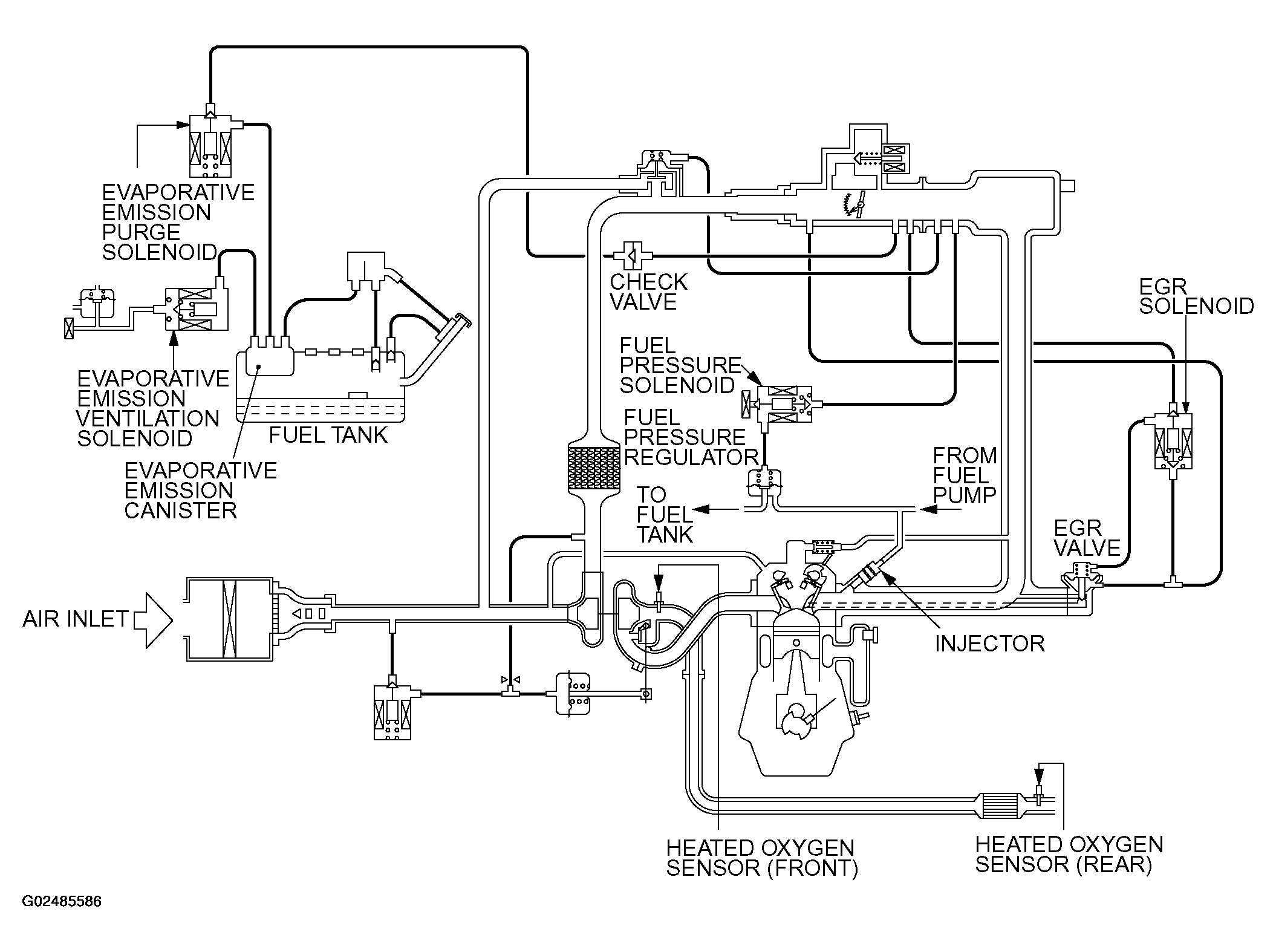

Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine And Emission Control -- Technical Information -- Evolution >> Emission Control >> General Description >> Emission Control System Diagram
