Removal And Installation: Notes

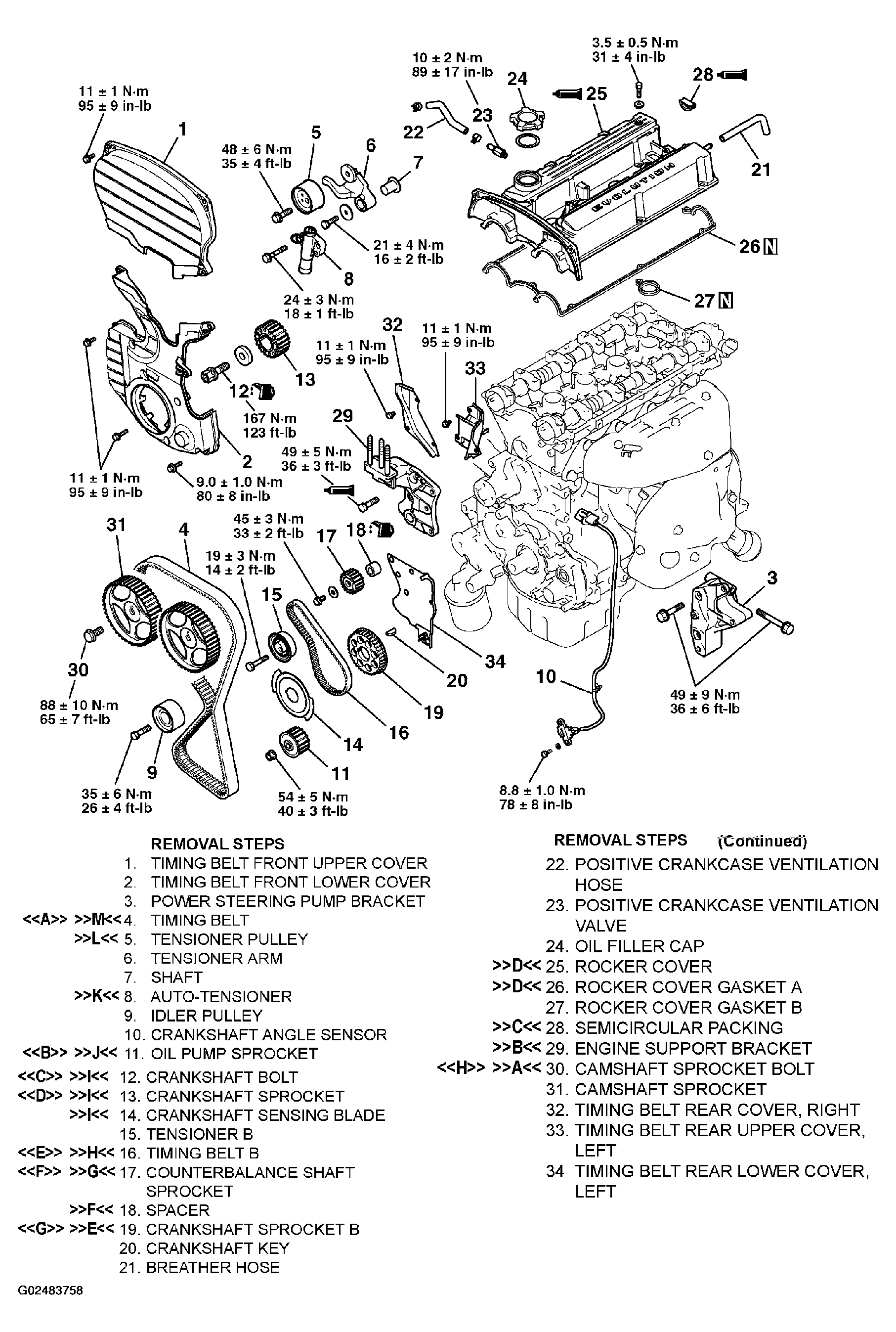

Fig 1: Exploded View Of Timing Belt Components
G02483758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
