Engine Diagnosis

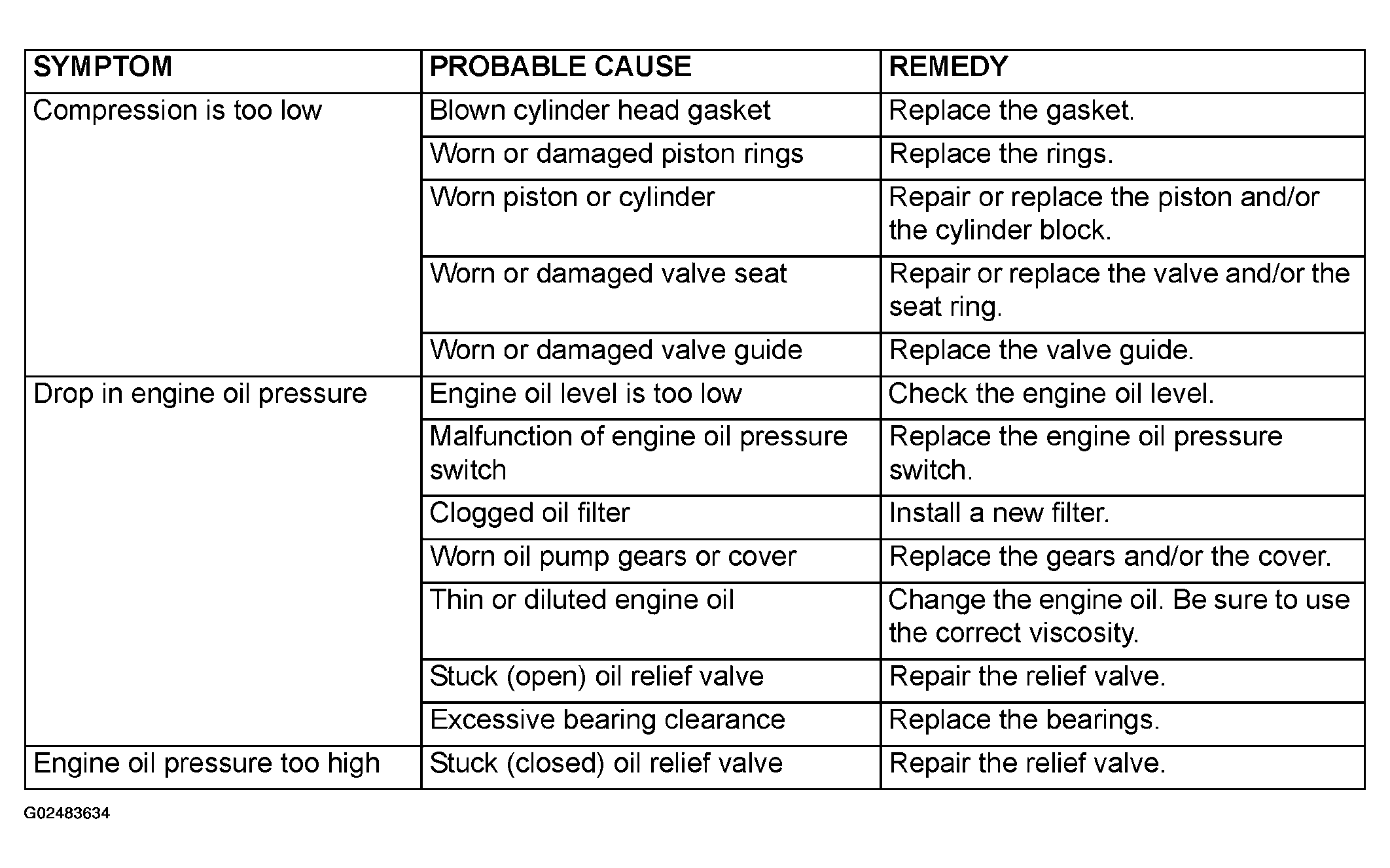

Fig 1: Engine Diagnosis Chart (1 Of 2)

G02483634

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

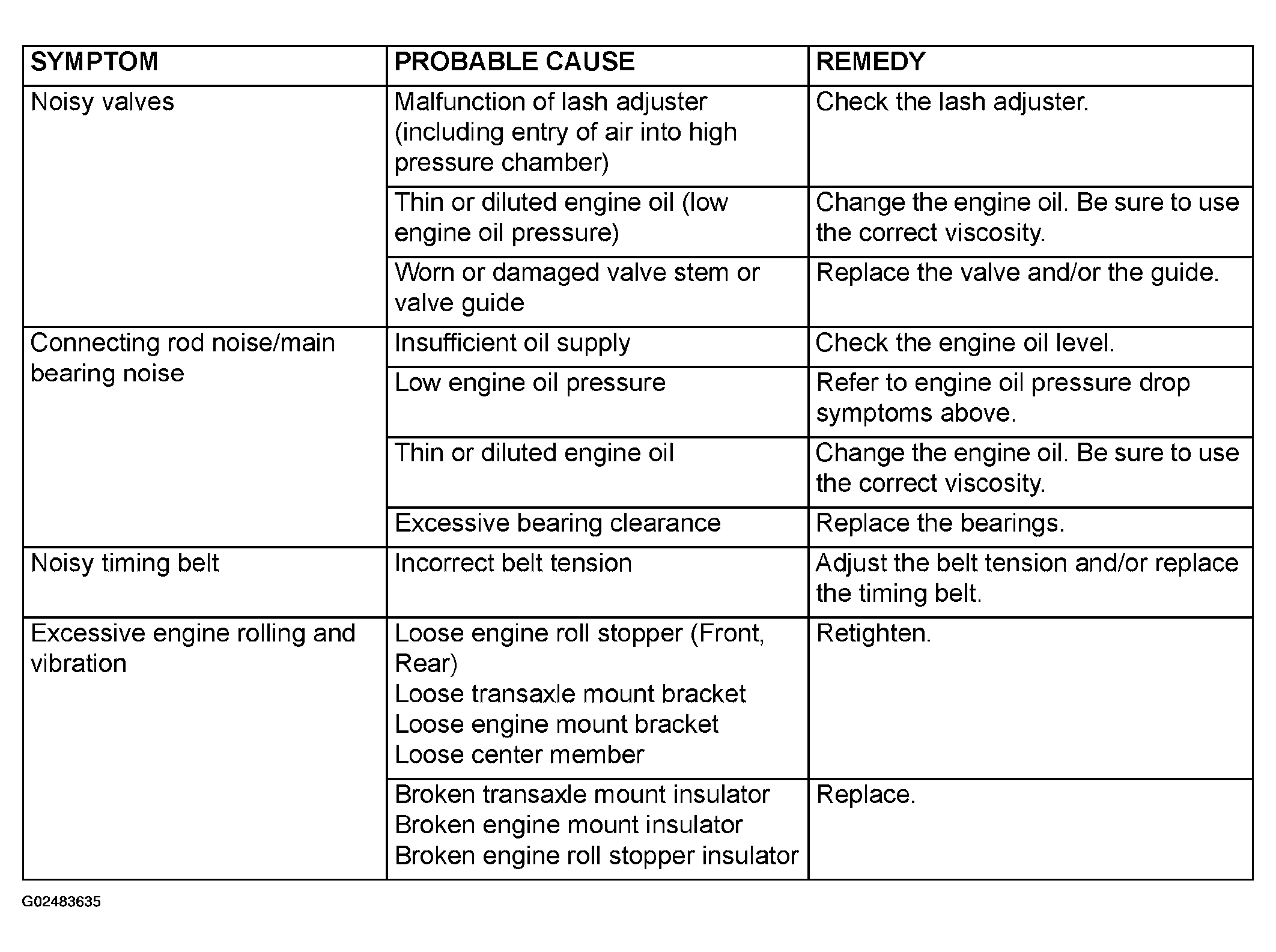

Fig 2: Engine Diagnosis Chart (2 Of 2)

G02483635

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
