>> C << Transaxle Assembly Installation

  1. Install the transaxle assembly. (Refer to TRANSAXLE ASSEMBLY < W5M51> or < W6MAA> .)
  2. Remove from the car the 2 bolts, to assemble the radiator support upper insulator.

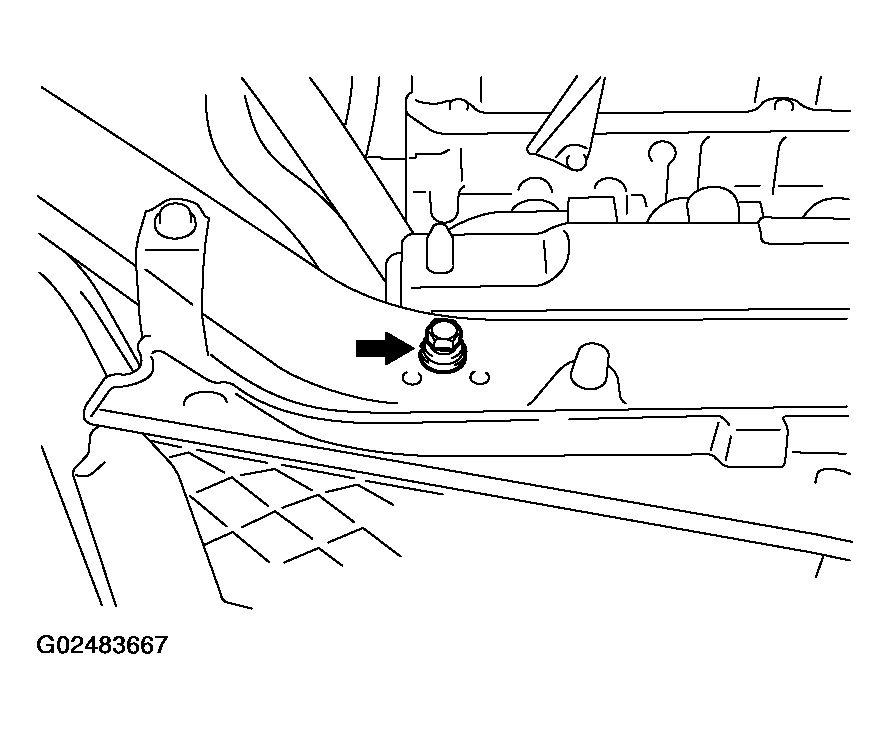

    Fig 1: Removing From Car 2 Bolts To Assembling Radiator Support Upper Insulator
    G02483667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
