General Circuit Diagram For The Keyless Entry System

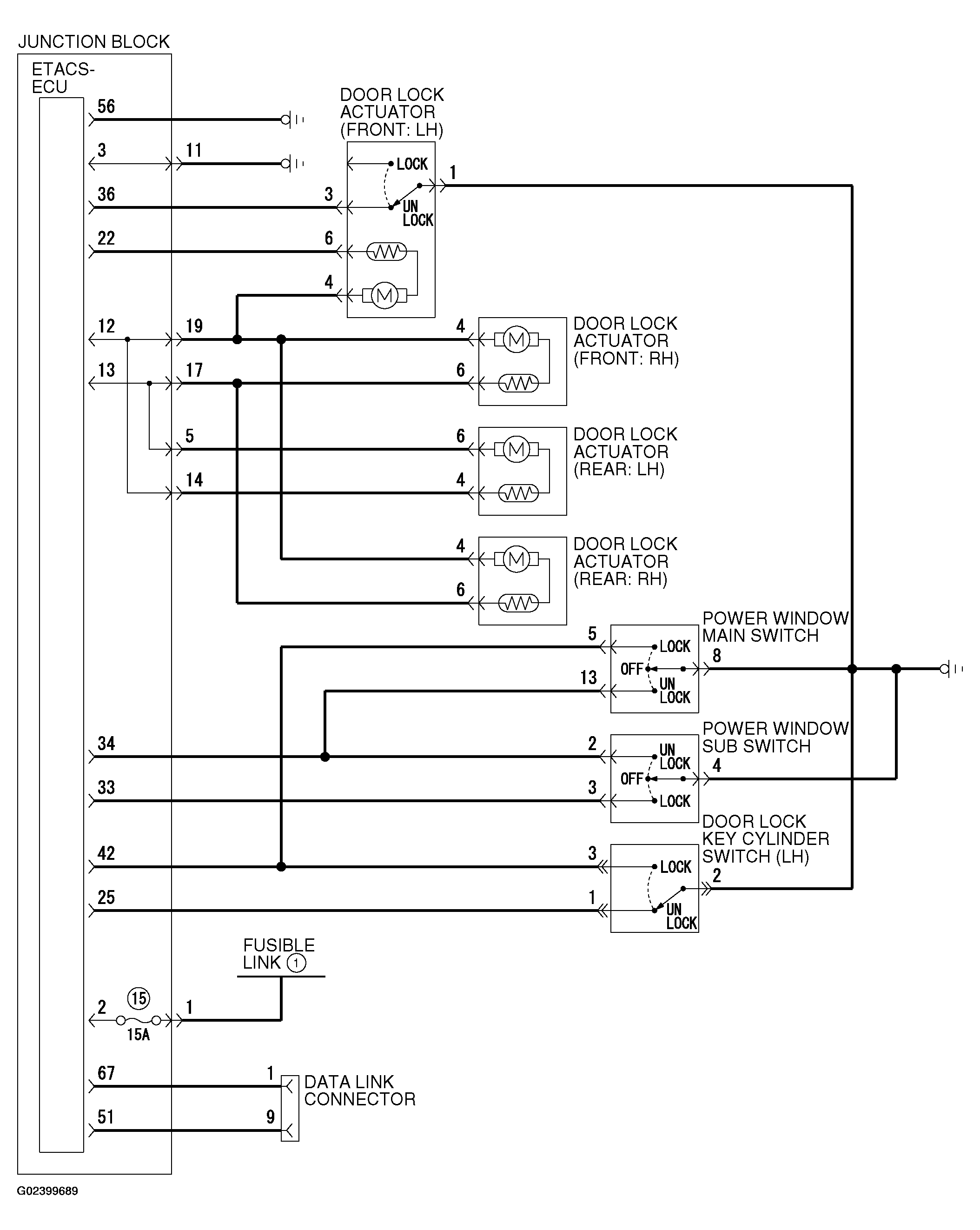

Fig 1: Keyless Entry System Circuit Diagram (1 Of 2)
G02399689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

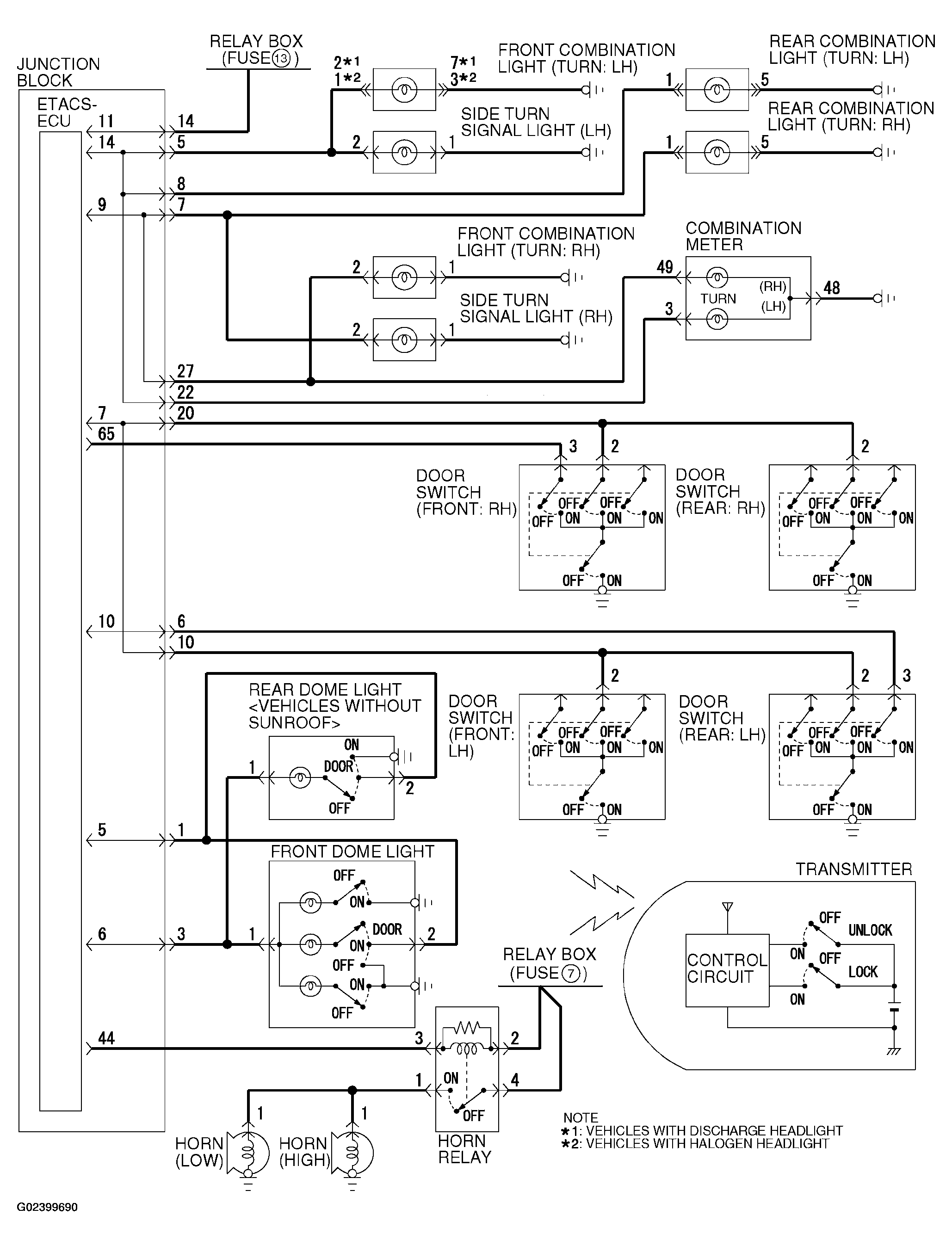

Fig 2: Keyless Entry System Circuit Diagram (2 Of 2)
G02399690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
