SWS Monitor

If a problem is found in the Service Data inspection, observe the following illustrations.

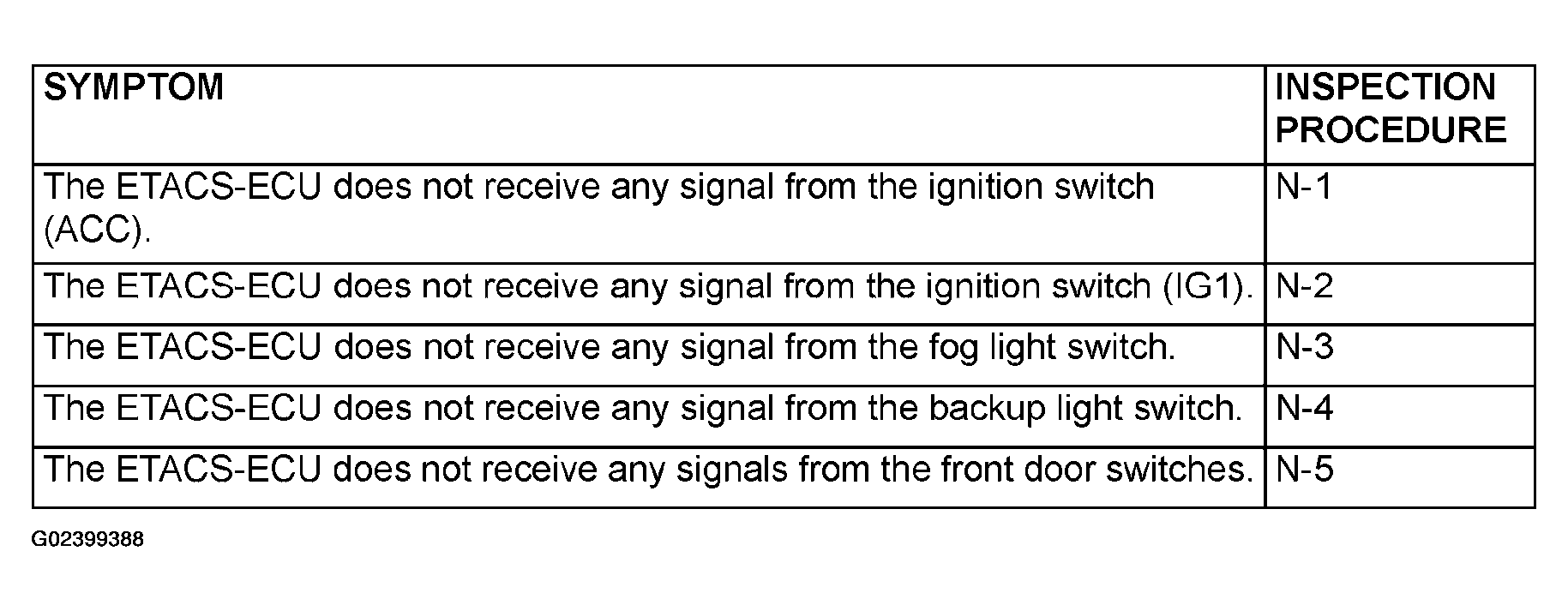

Fig 1: Input Signal Chart - SWS Monitor (1 Of 2)
G02399388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

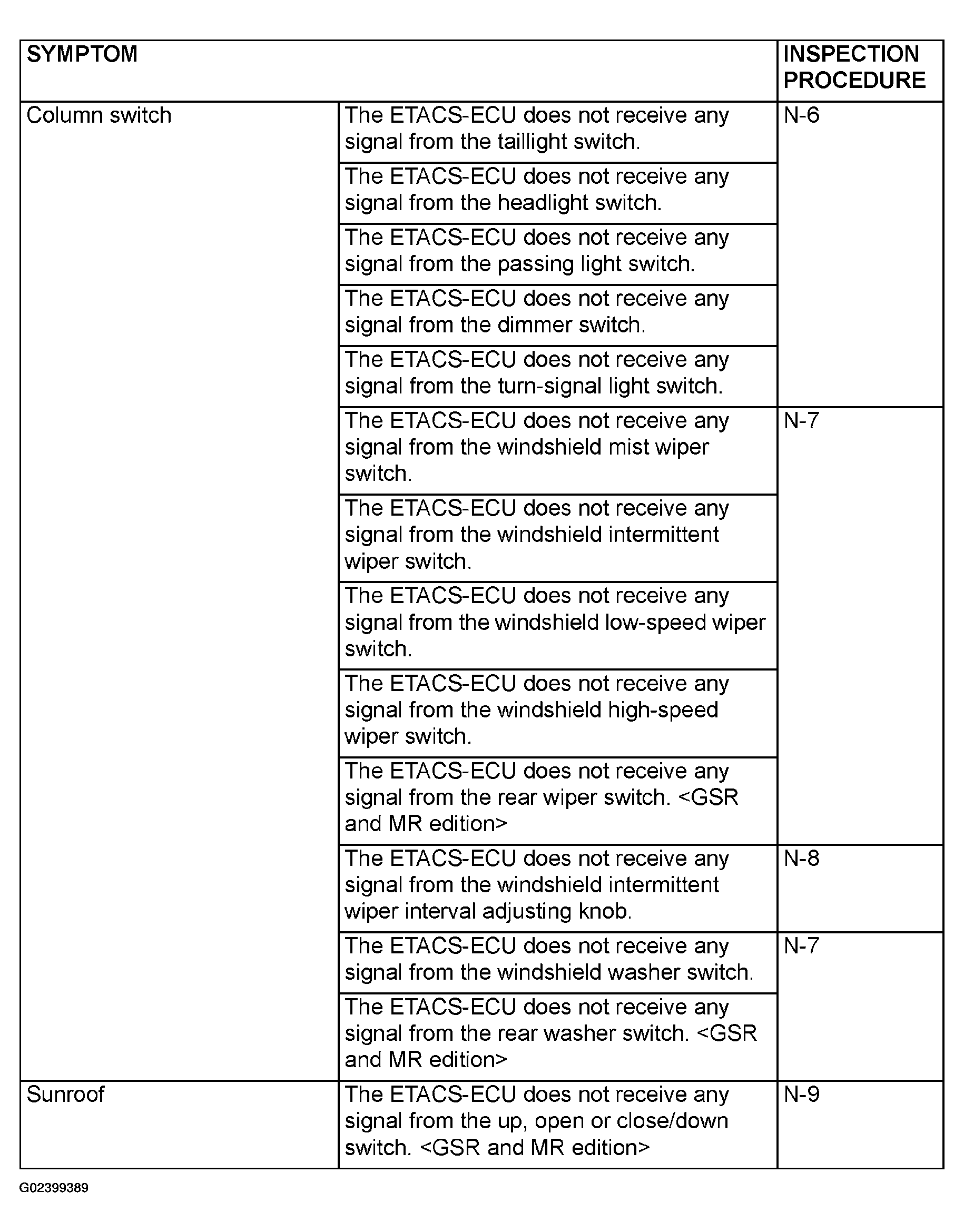

Fig 2: Input Signal Chart - SWS Monitor (2 Of 2)
G02399389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
