Check At Ecu Terminal: Front-Ecu

Fig 1: Identifying Front-ECU Connector Terminals
G02400412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Terminal voltages cannot be measured, as the front-ECU is installed directly on the relay box. Therefore, this information is only for reference.

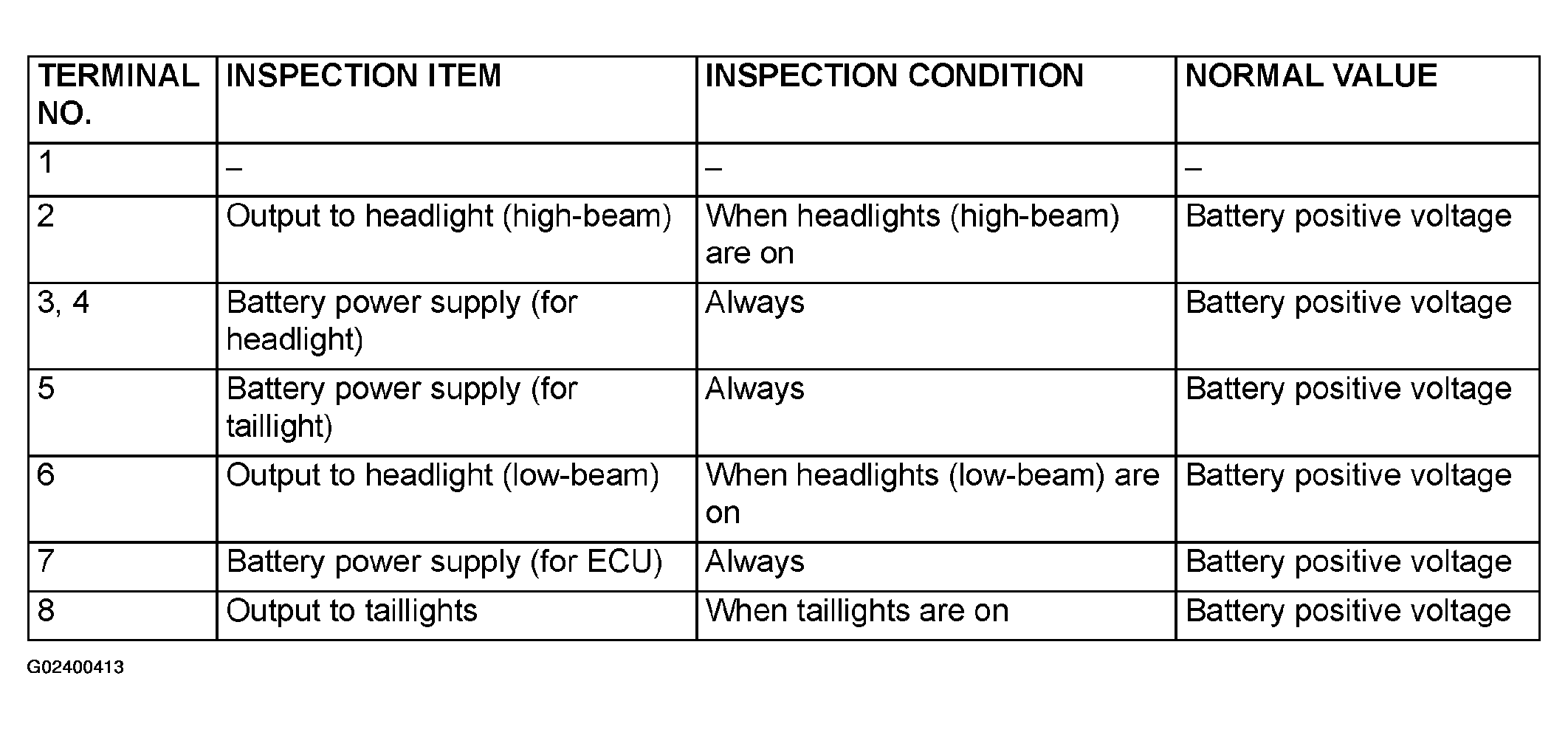

Fig 2: Front-ECU Connector Terminals Reference Chart (1 Of 2)
G02400413Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

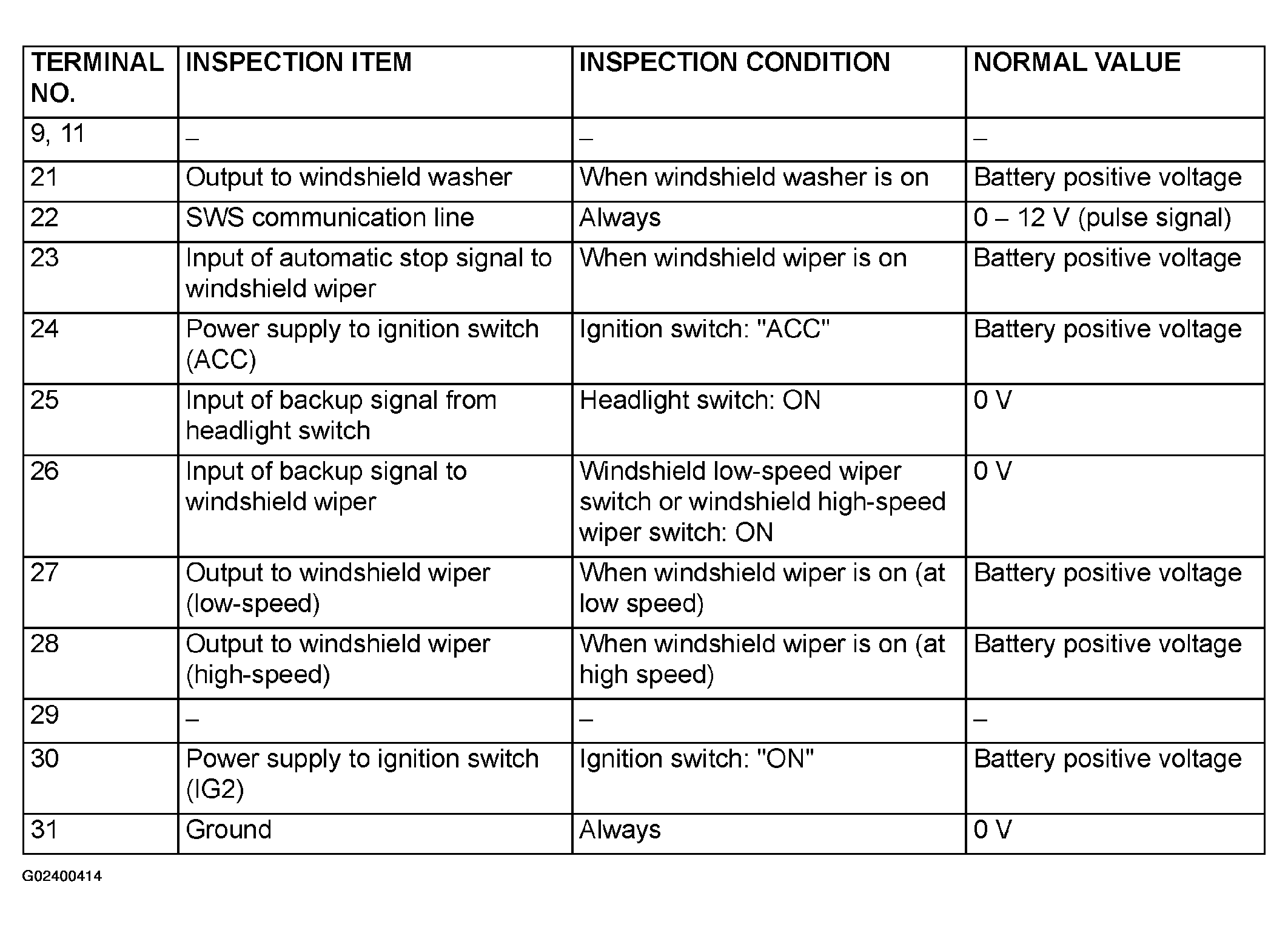

Fig 3: Front-ECU Connector Terminals Reference Chart (2 Of 2)
G02400414Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
