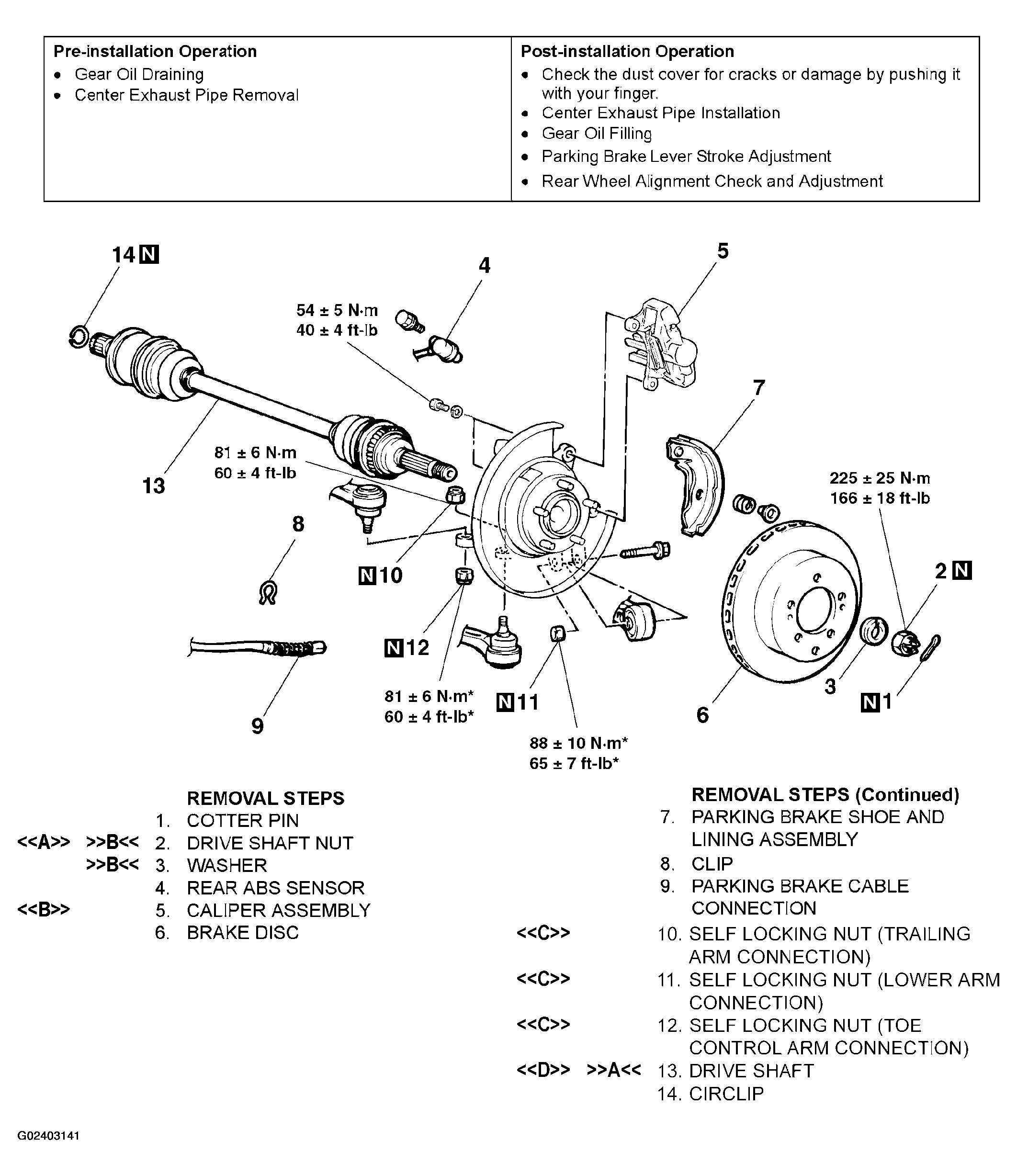

Removal And Installation: Notes
CAUTION:
- Do not strike the ABS rotors installed to the EBJ outer race of drive shaft against other parts when removing or installing the drive shaft. The ABS rotors will be damaged.
- Be careful not to strike the pole piece at the tip of the rear ABS sensor with tools during servicing work.
- During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.
Required Special Tools:
MB990767: Front Hub and Flange Yoke Holder
MB991354: Puller Body
MB990241: Axle Shaft Puller
MB991017: Front Hub Remover and Installer
MB990998: Front Hub Remover and Installer
MB991897: Ball Joint Remover
