Construction Diagram

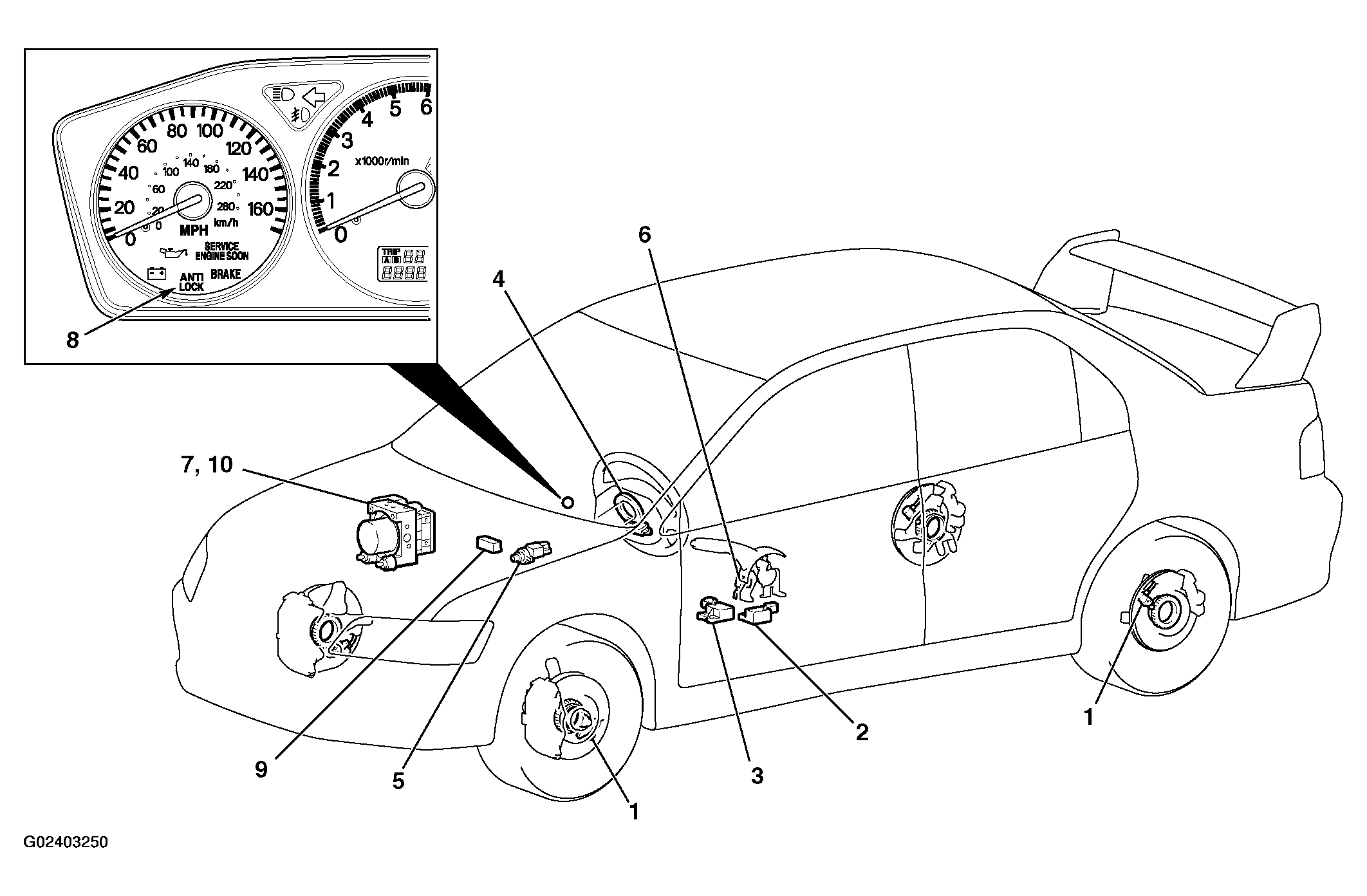

Fig 1: Identifying Anti-Lock Braking System Electrical Components Location
G02403250Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

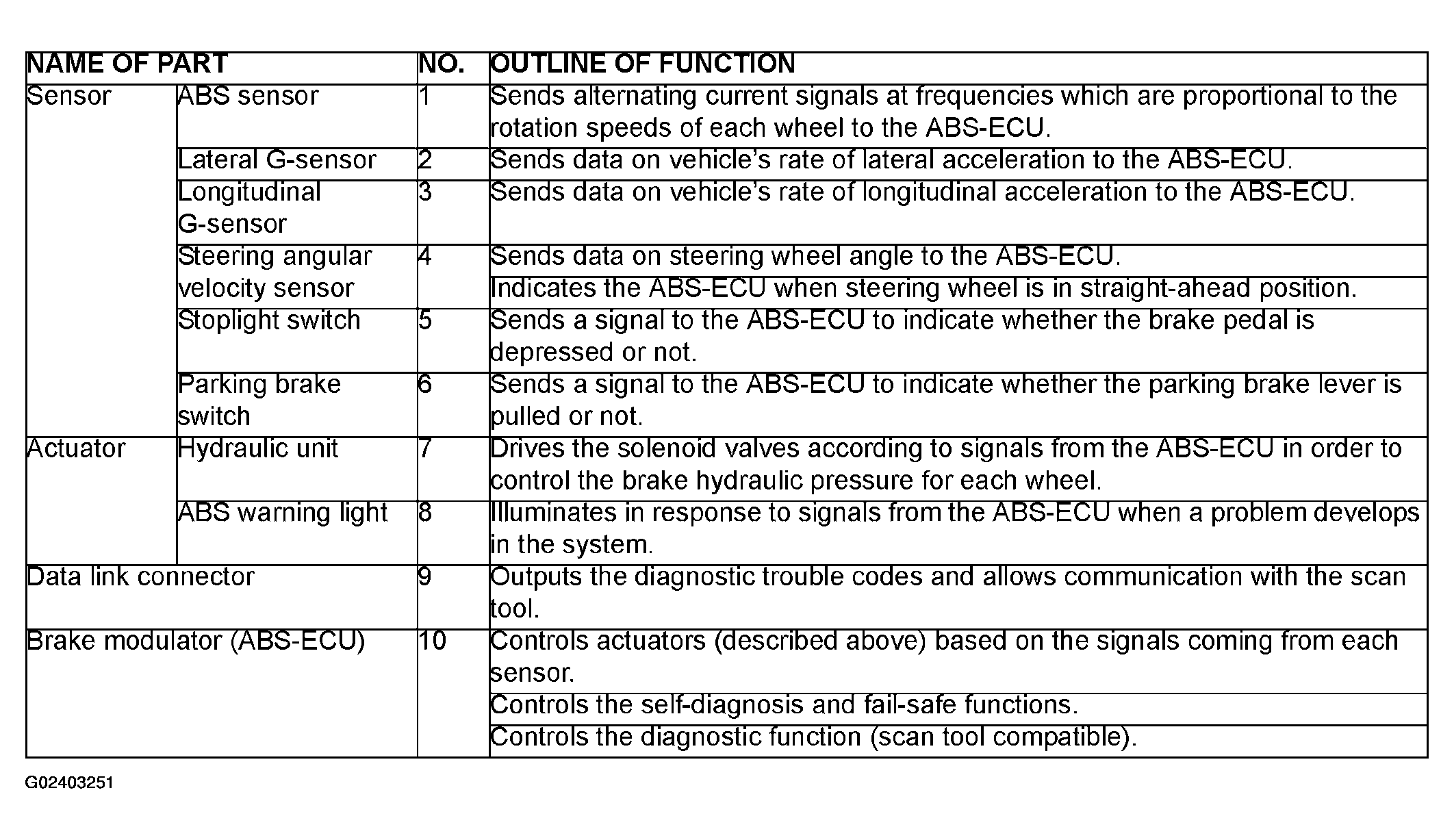

Fig 2: Anti-Lock Braking System Electrical Components Function Chart
G02403251Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
