Adjustment Of Hood Height

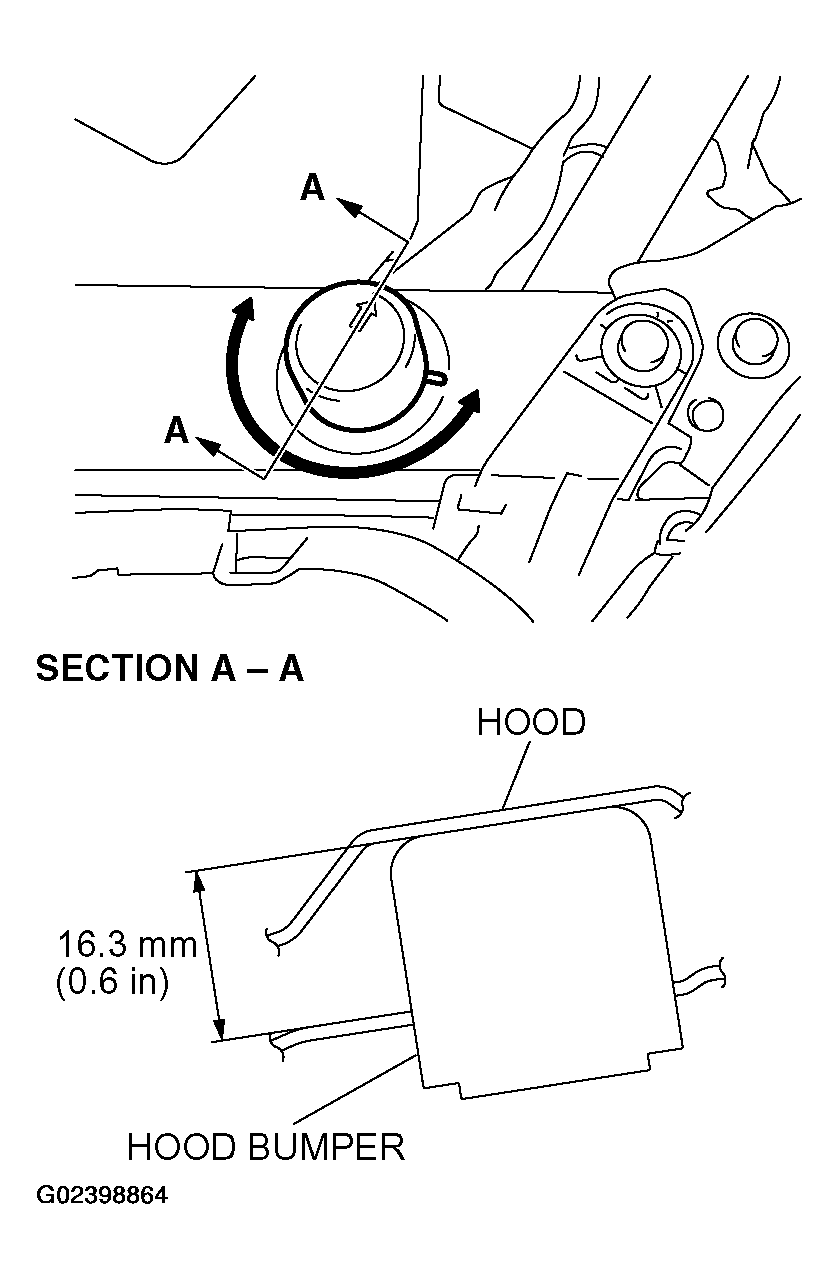

Fig 1: Adjusting Of Hood Height

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Rotate the hood bumper by using arrow mark on the hood bumper as a guide to adjust the hood height. If the hood bumper is rotated just one turn, the hood height changes by approximately 3 mm (0.1 inch).

Fig 2: Identifying Hood Height

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
