Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Exterior -- Evolution >> Rear Bumper Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

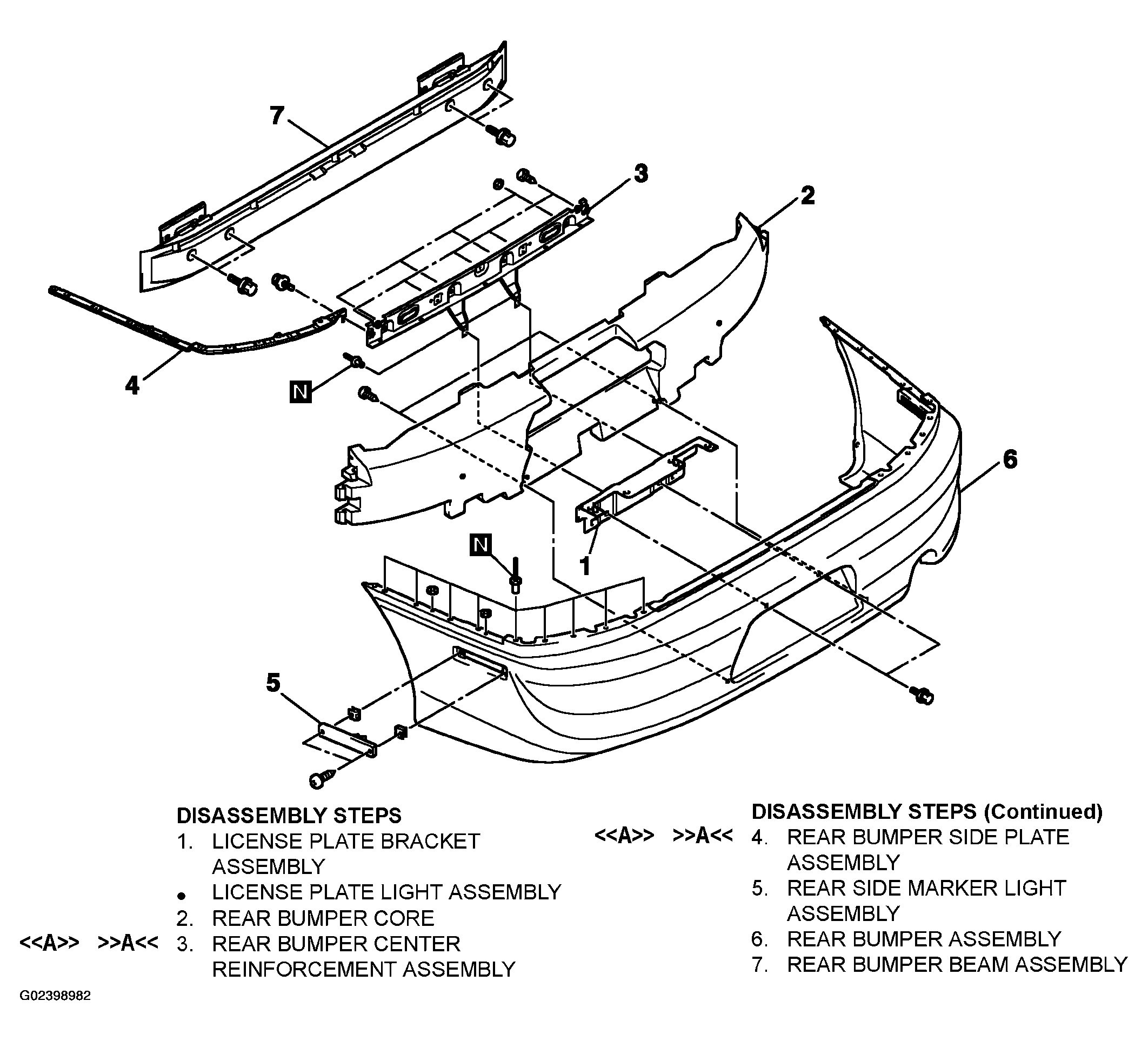

Fig 1: Exploded View Of Rear Bumper Assembly

G02398982

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
