Disassembly And Assembly: Notes

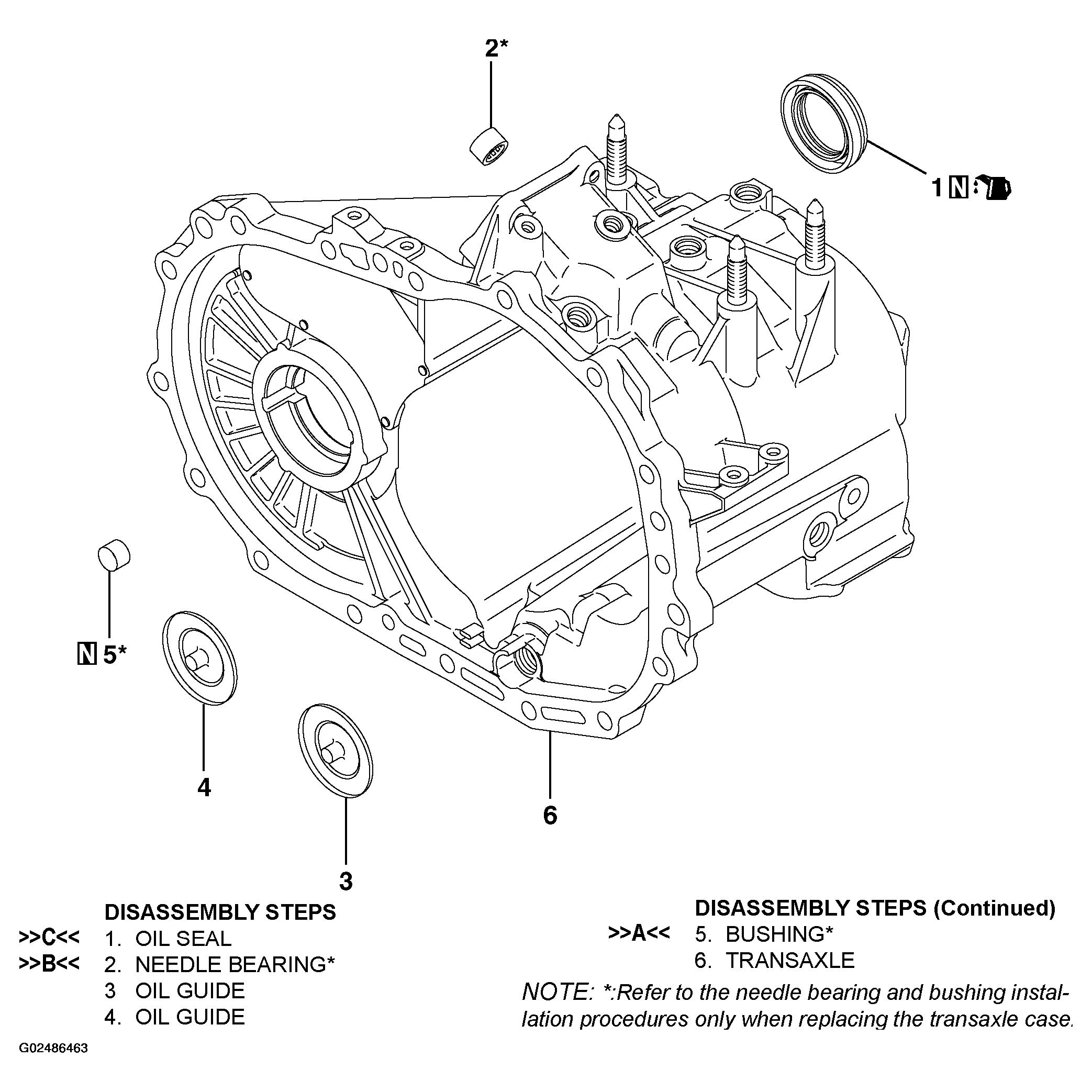

Fig 1: Disassembling/Assembling Transmission Case
G02486463Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
