Disassembly And Assembly: Notes

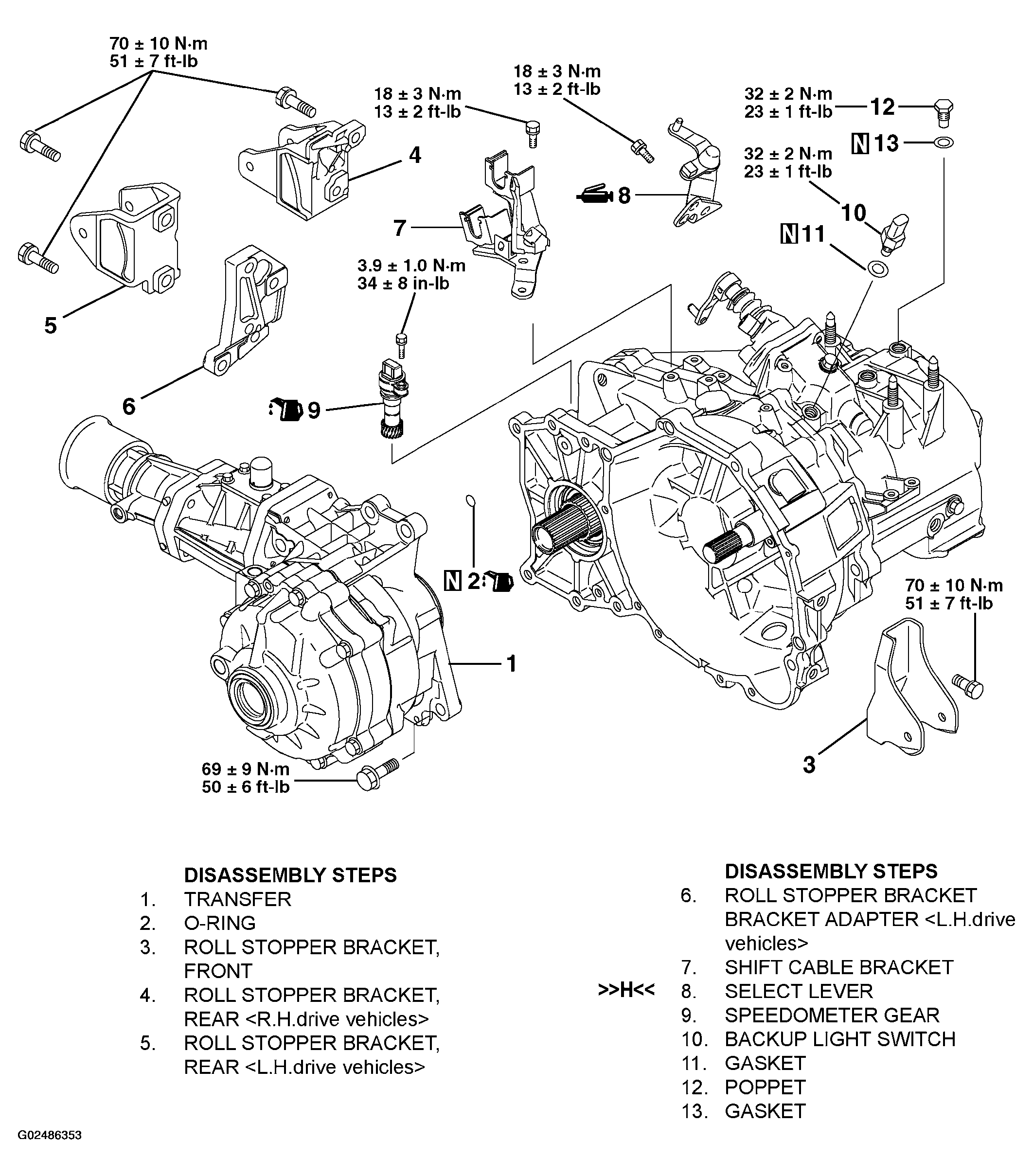

Fig 1: Disassembling/Assembling Transaxle (Transmission) (1 Of 3)
G02486353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

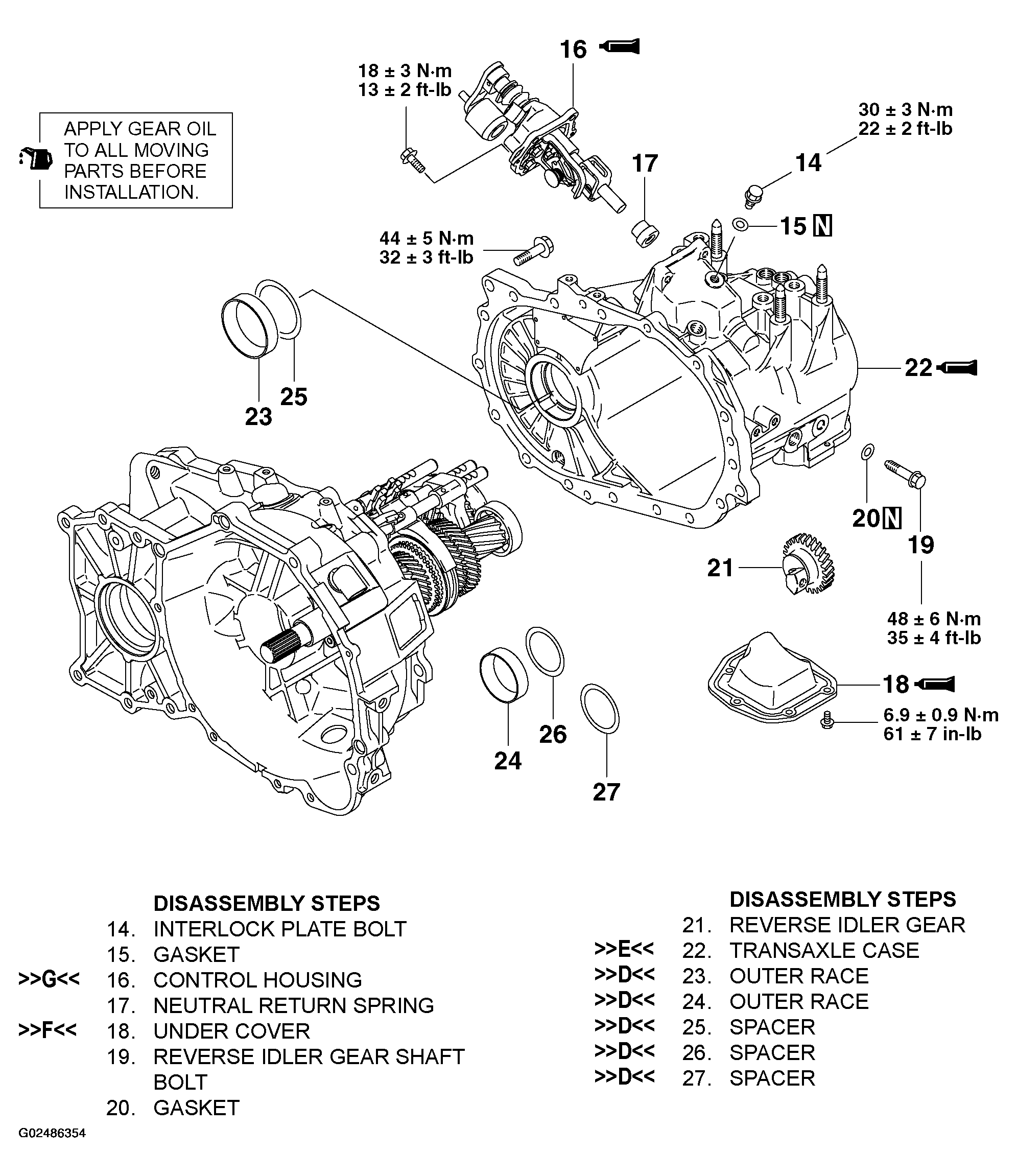

Fig 2: Disassembling/Assembling Transaxle (Transmission) (2 Of 3)
G02486354Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

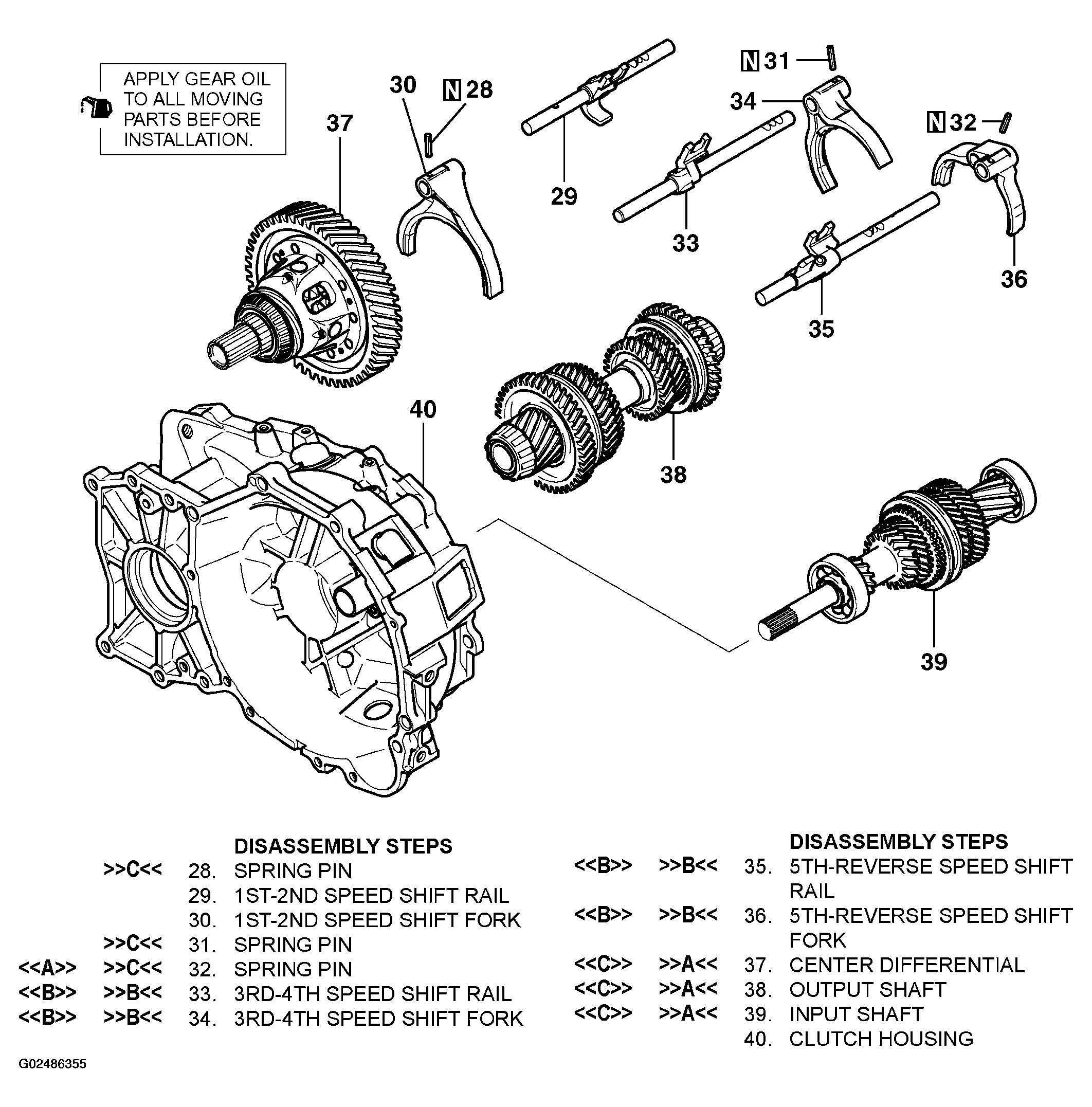

Fig 3: Disassembling/Assembling Transaxle (Transmission) (3 Of 3)
G02486355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
