DTC 61: Stoplight Switch System: Notes

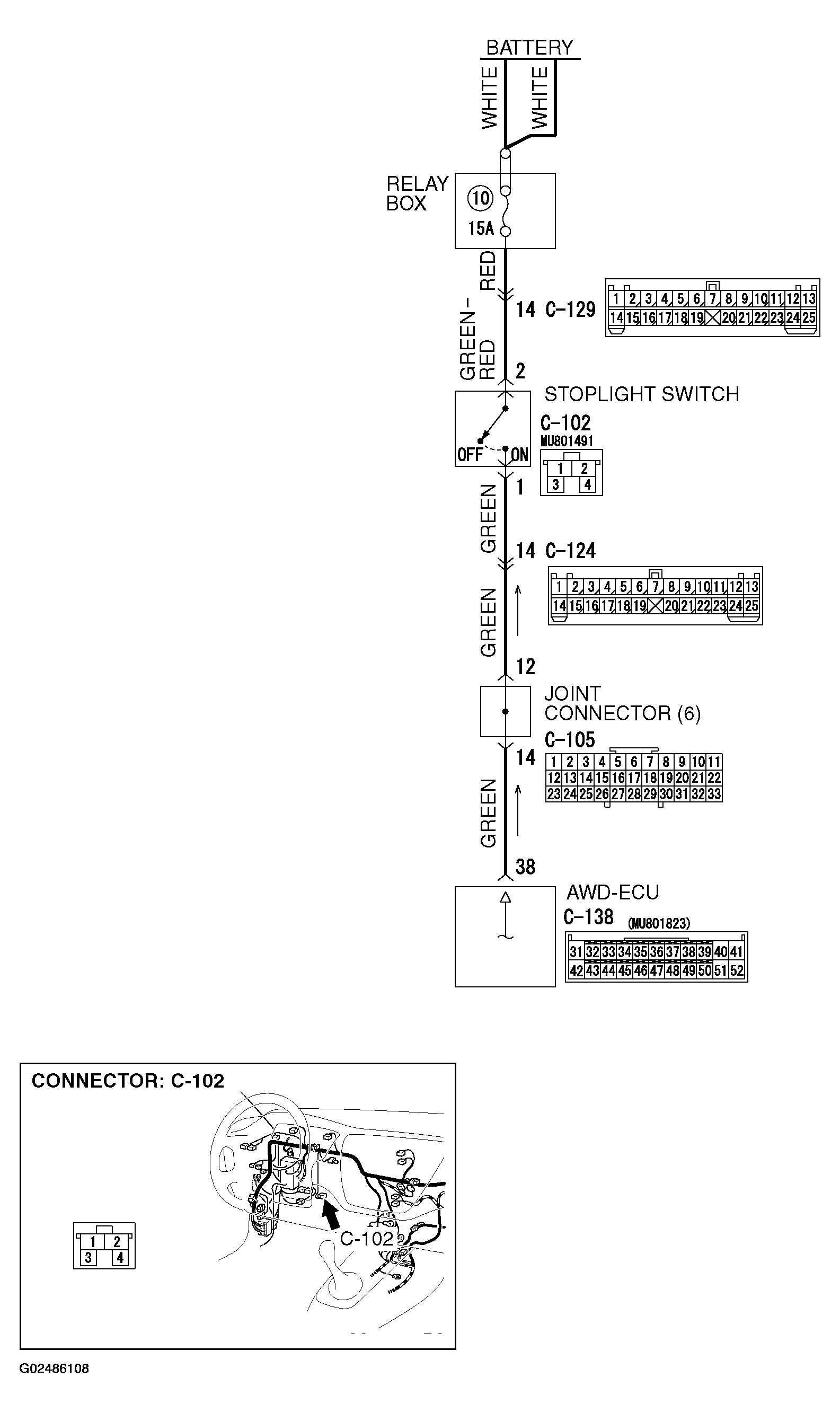

Fig 1: Stoplight Switch System Circuit - Wiring Diagram (1 Of 2)
G02486108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

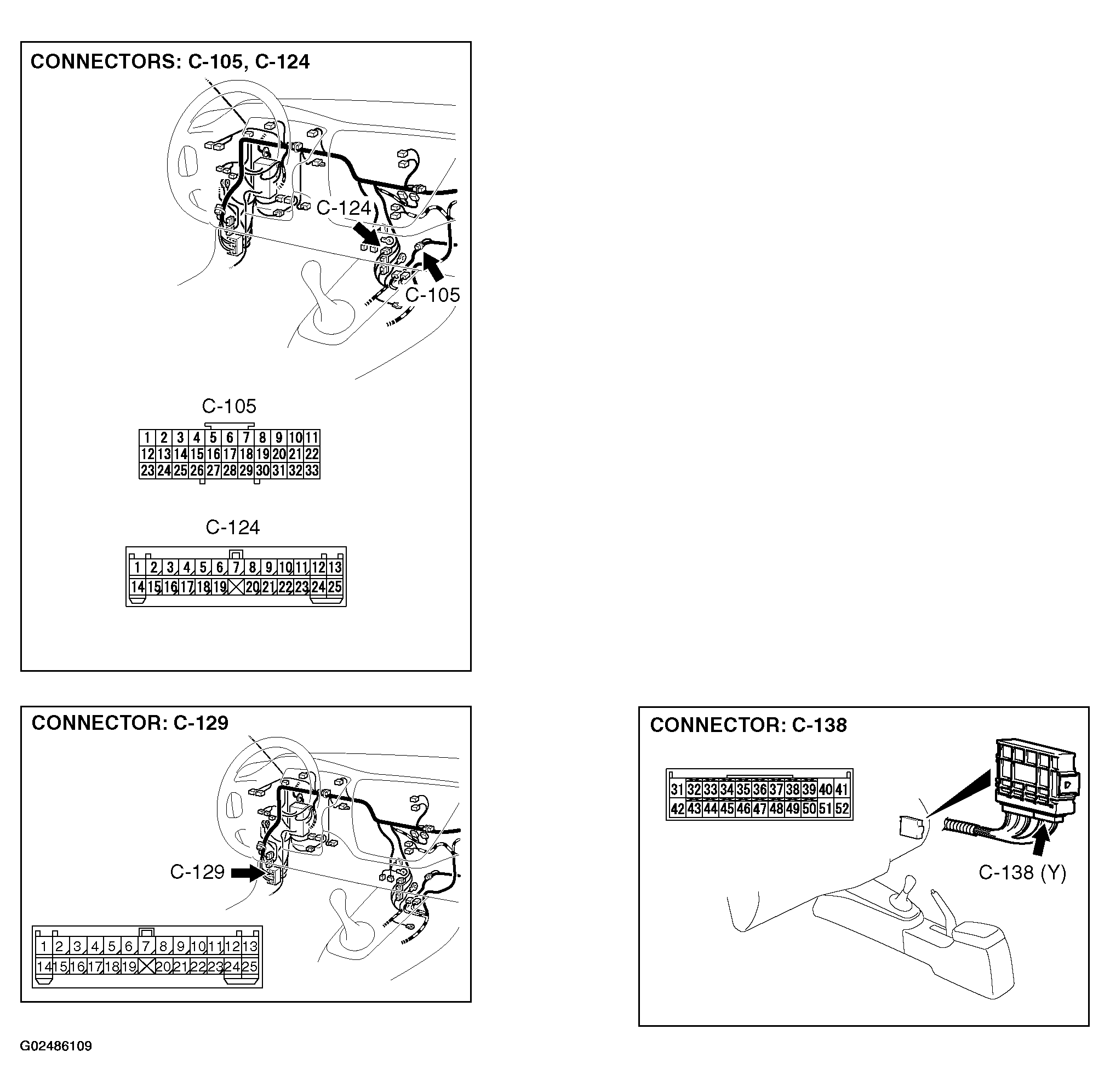

Fig 2: Stoplight Switch System Circuit - Wiring Diagram (2 Of 2)
G02486109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
