DTC 41, 42: Throttle Position Sensor System: Notes

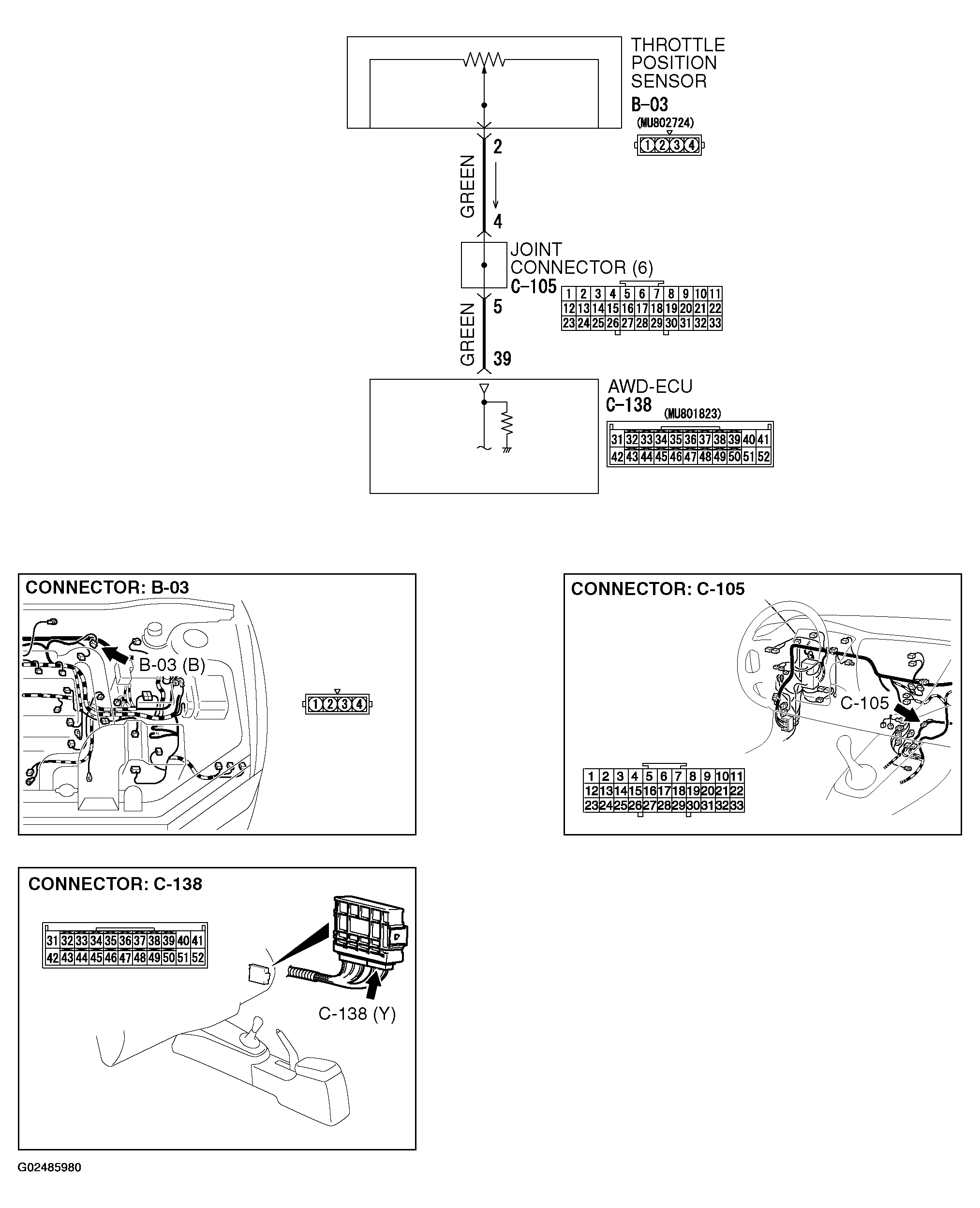

Fig 1: Throttle Position Sensor System Circuit - Wiring Diagram

G02485980

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
