Disassembly And Assembly: Notes

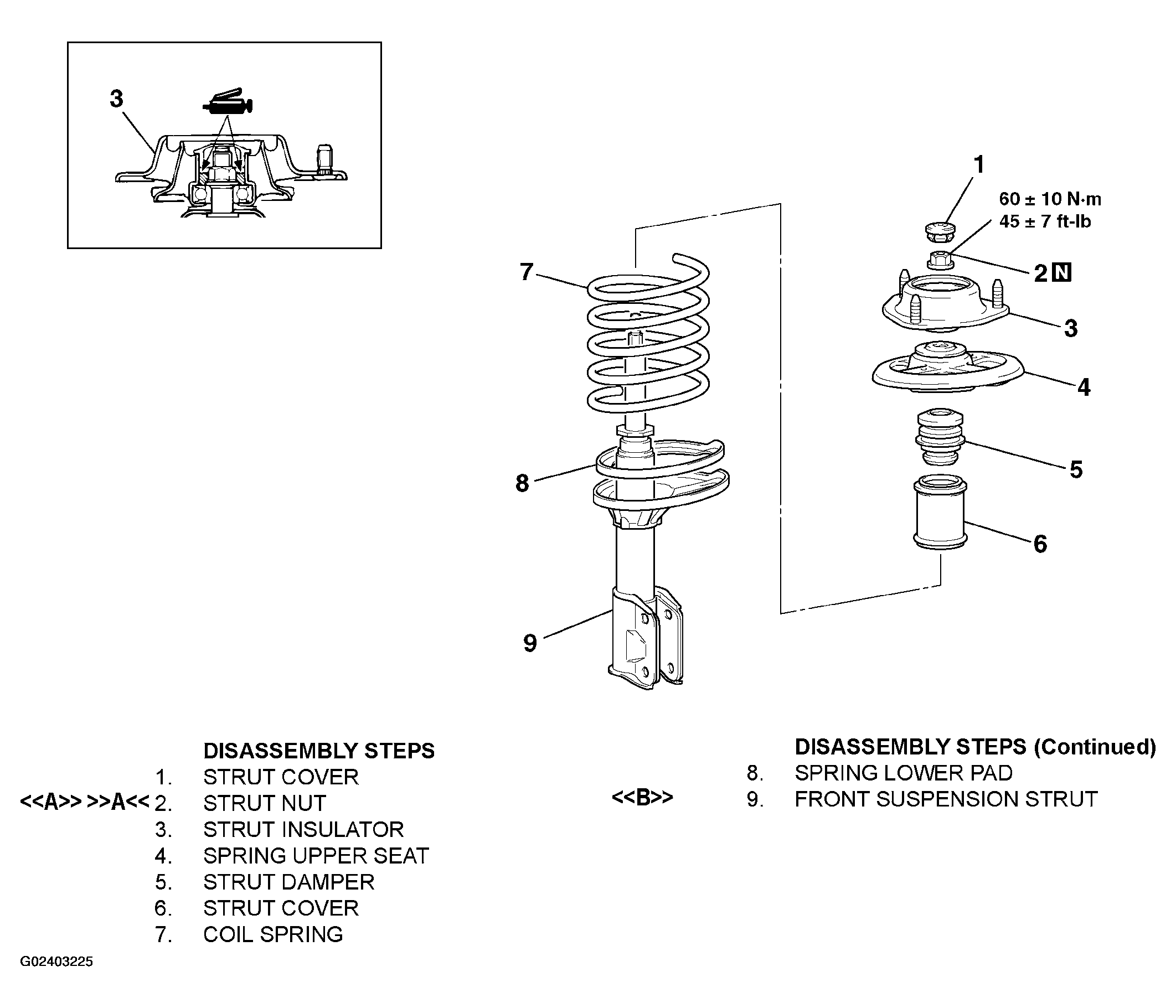

Fig 1: Disassembling/Assembling Strut Assembly
G02403225Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
