DTC 22: Driver's Air Bag Module (Squib) System Fault 2 (Open in the Squib Circuit): Notes

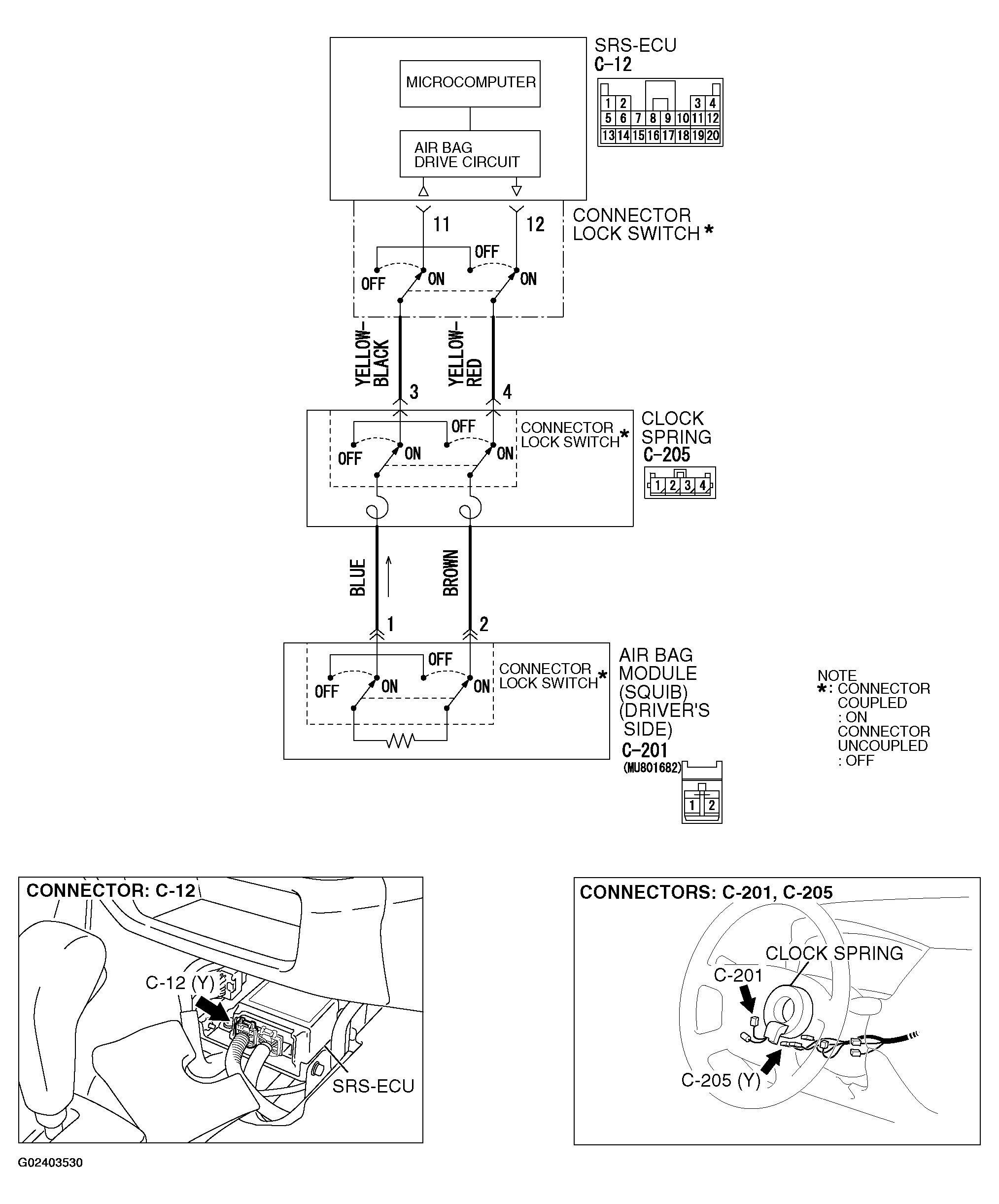

Fig 1: Driver's Air Bag Module (Squib) Circuit

G02403530

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
