Left Front Impact Sensor Connector End View (A-33)

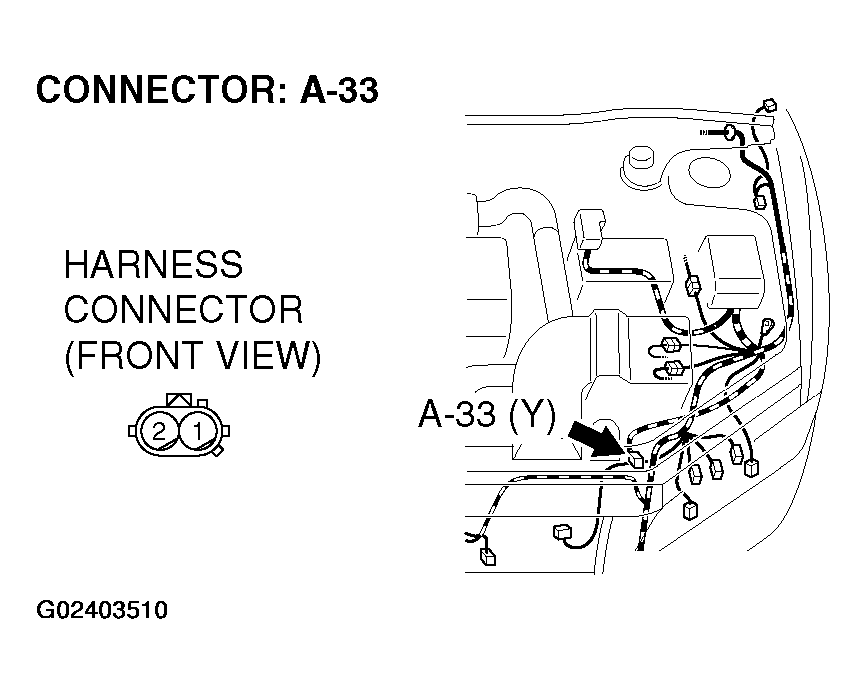

Fig 1: Left Front Impact Sensor Connector End View (A-33)

G02403510

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
