Door Lock Switch (Power Window Sub Switch) Connector End View

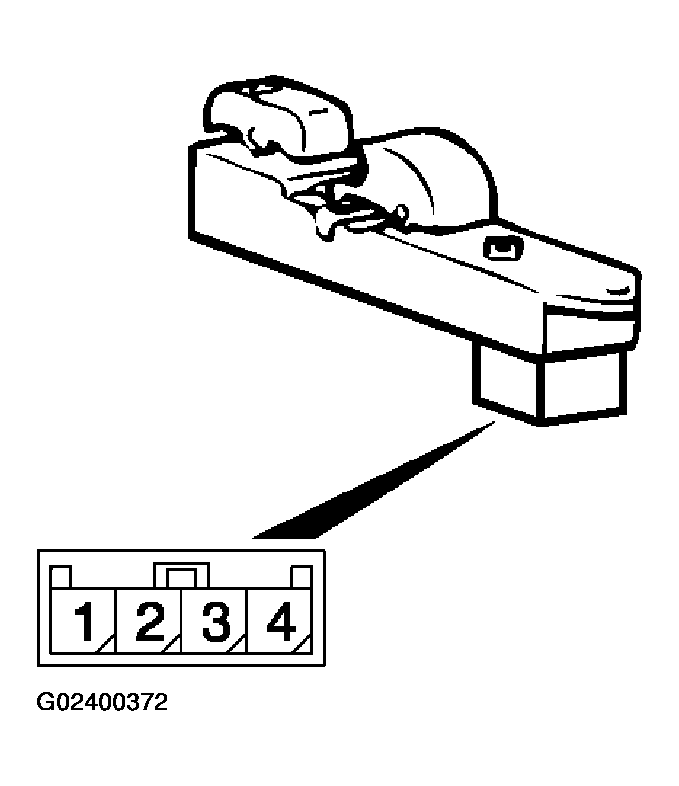

Fig 1: Door Lock Switch (Power Window Sub Switch) Connector End View

G02400372

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
