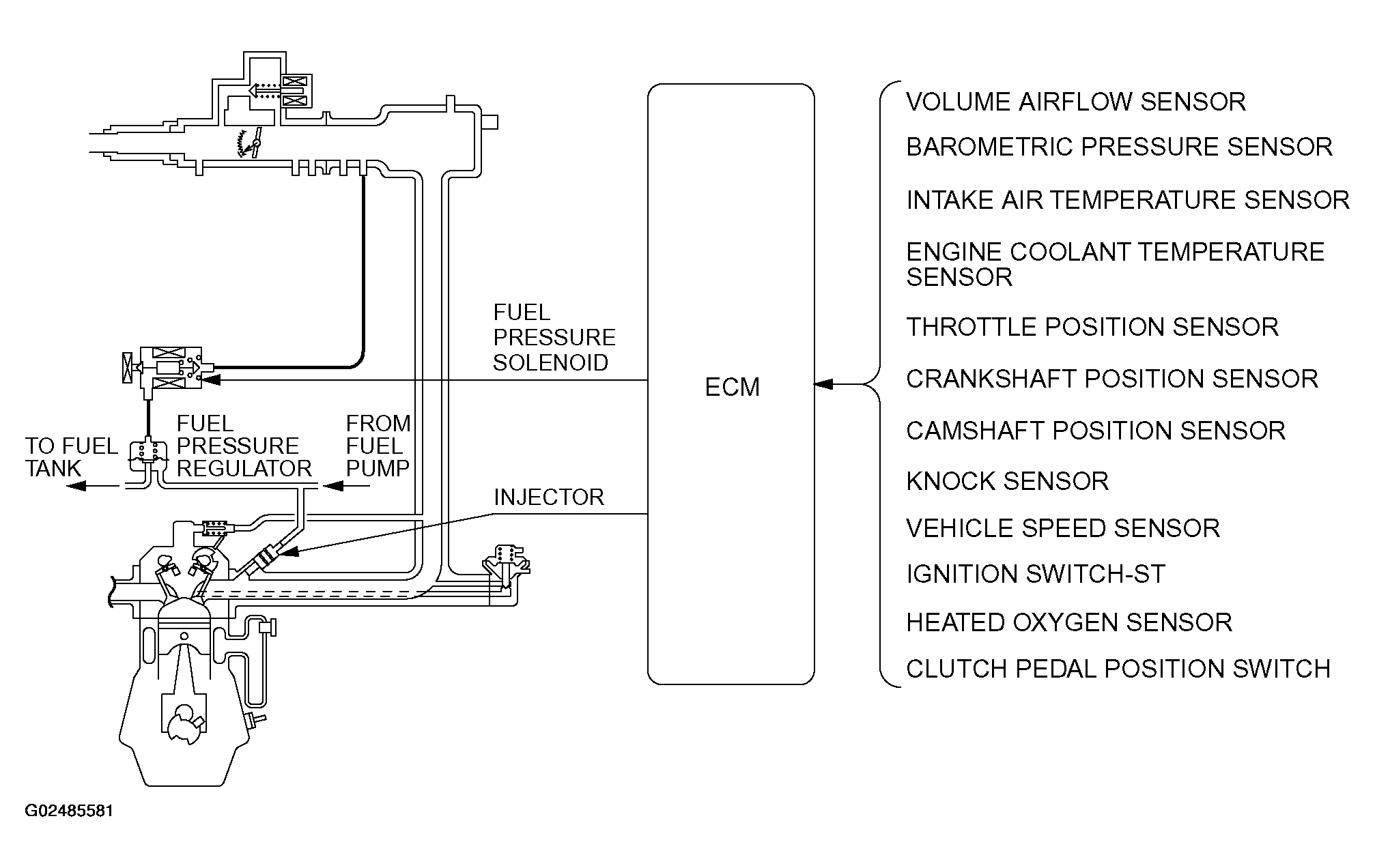

Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Fuel System >> Fuel -- Technical Information -- Evolution >> Fuel Injection Control >> System Configuration Diagram
