A/T Control Relay Connector End View (B-11X)

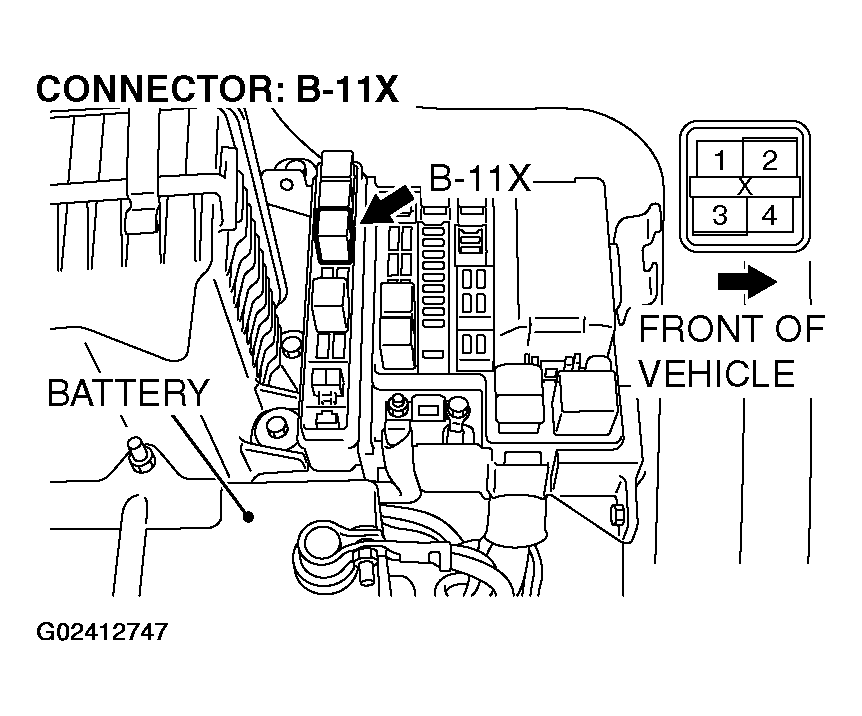

Fig 1: A/T Control Relay Connector End View (B-11X)

G02412747

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
