>> C << TJ Boot Band(Small)/TJ Boot Band(Large) Installation

Set the TJ boot bands at the specified distance in order to adjust the amount of air inside the TJ boot, and then tighten the TJ boot band(large) and TJ boot band(small) securely.

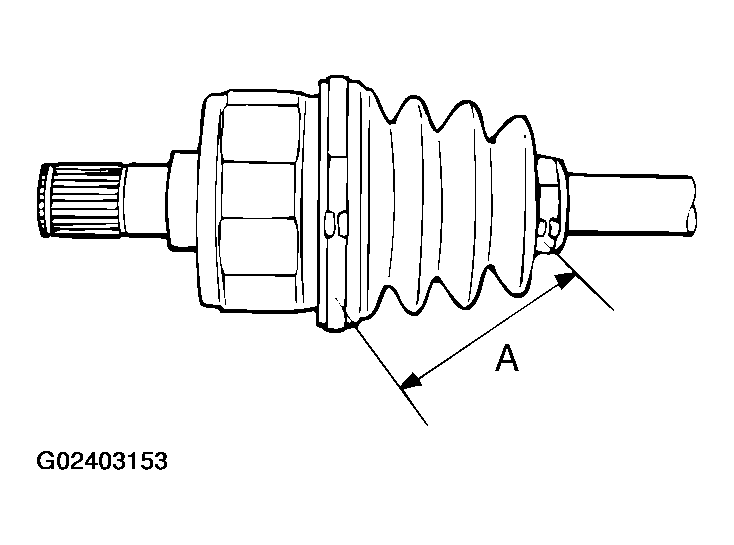

Fig 1: Setting TJ Boot Bands
G02403153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
