Brakes
>>
Traction Control
>>
Abs (Anti-Lock Brake System) - Evolution
>>
Anti-Lock Braking System (Abs) Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC 32: Longitudinal G-Sensor System
>>
Notes
DTC 32: Longitudinal G-Sensor System: Notes

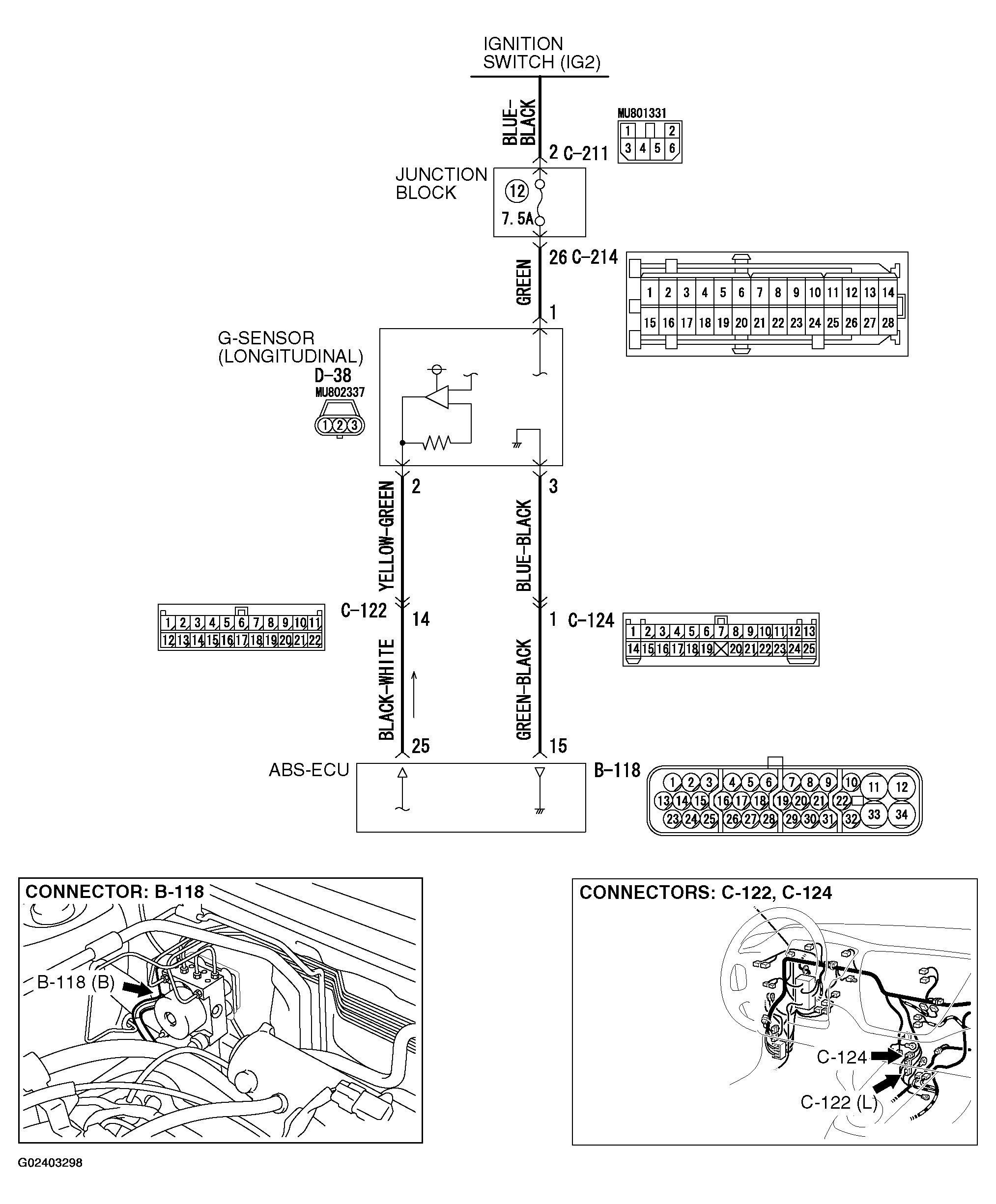

Fig 1: Longitudinal G-Sensor Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

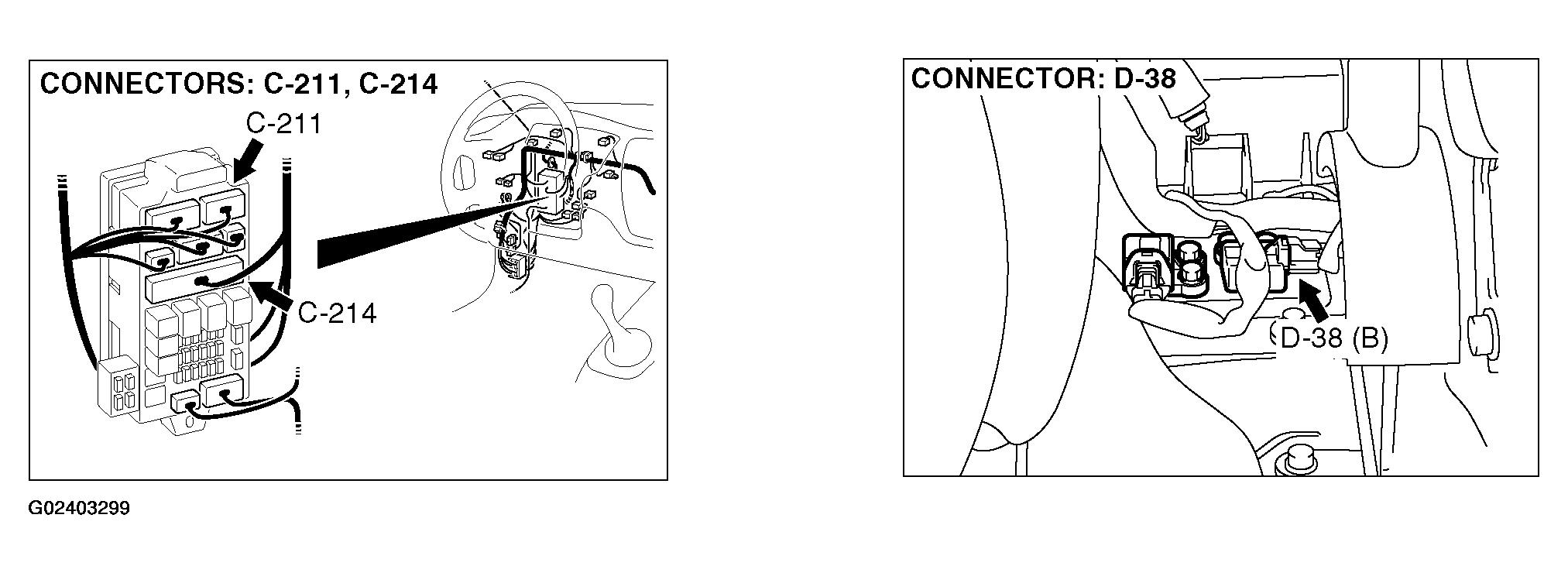

Fig 2: Identifying Connector Terminal Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
