Abs (Anti-Lock Brake System) - Evolution
>>
Abs Sensor
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

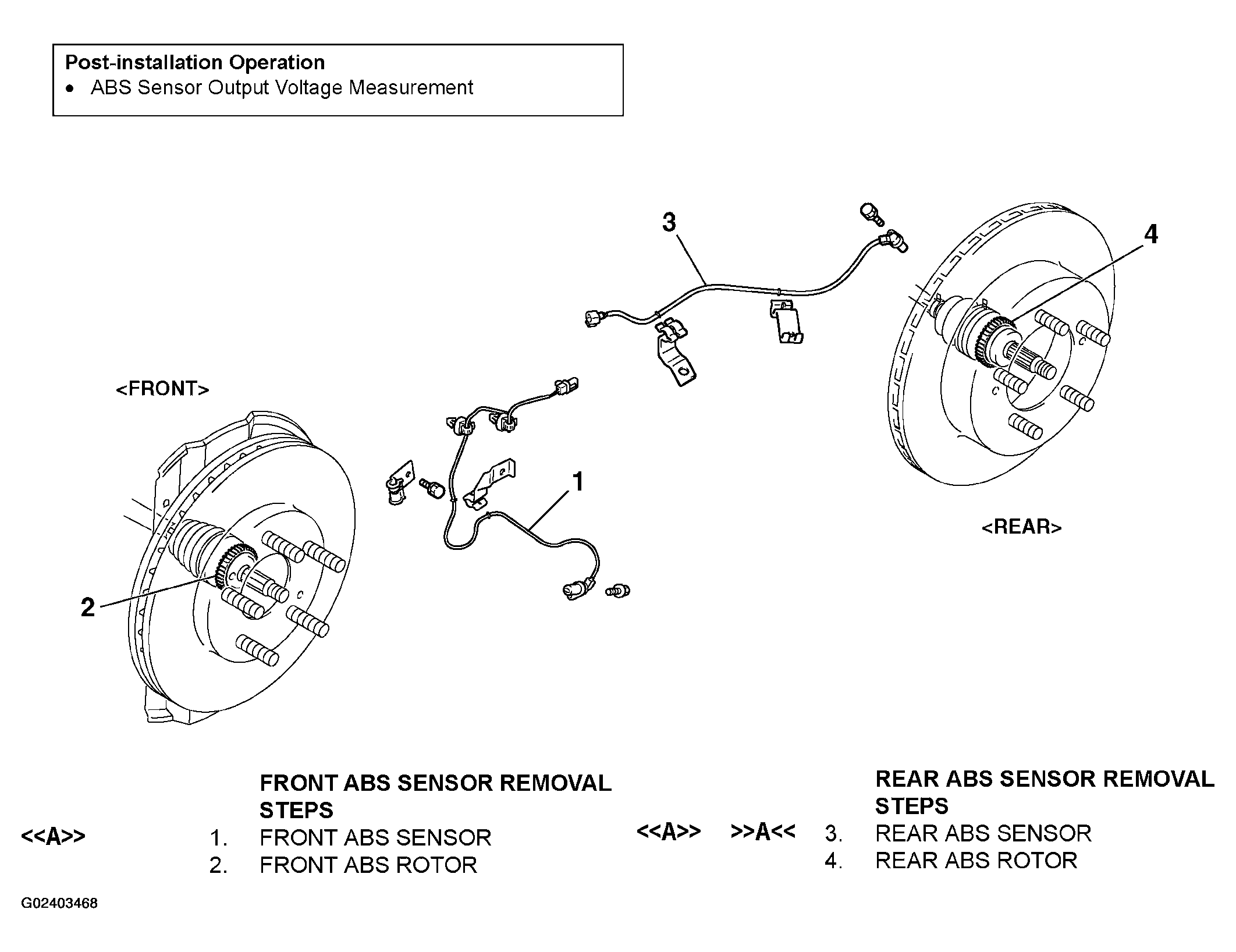

Fig 1: Removing/Installing ABS Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
The ABS rotors are integrated with the drive shaft and cannot be disassembled.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
