INSPECTION PROCEDURE 3: Fuel Gauge does not Work.: Notes

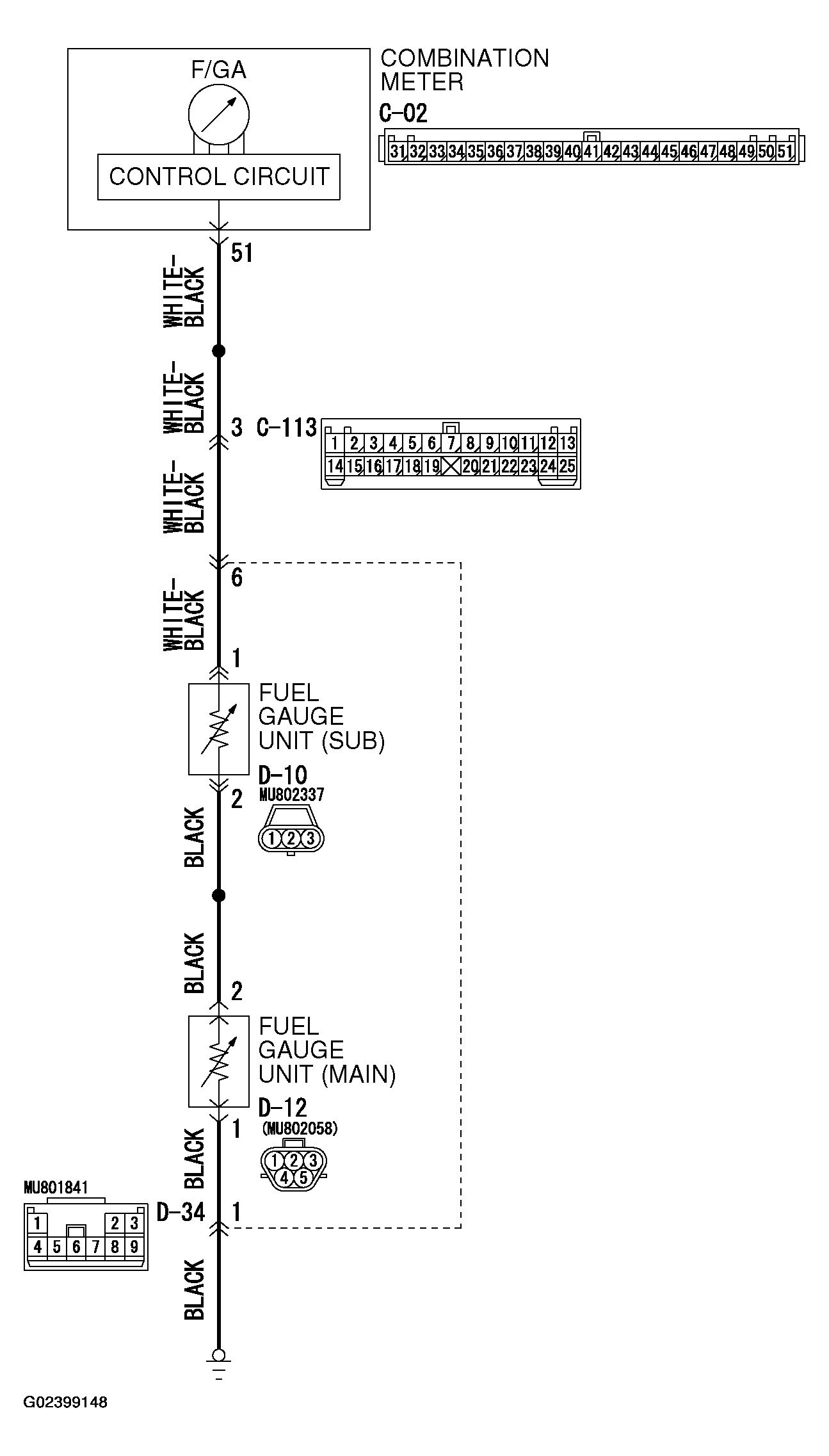

Fig 1: Fuel Gauge Not Work - Circuit Diagram
G02399148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

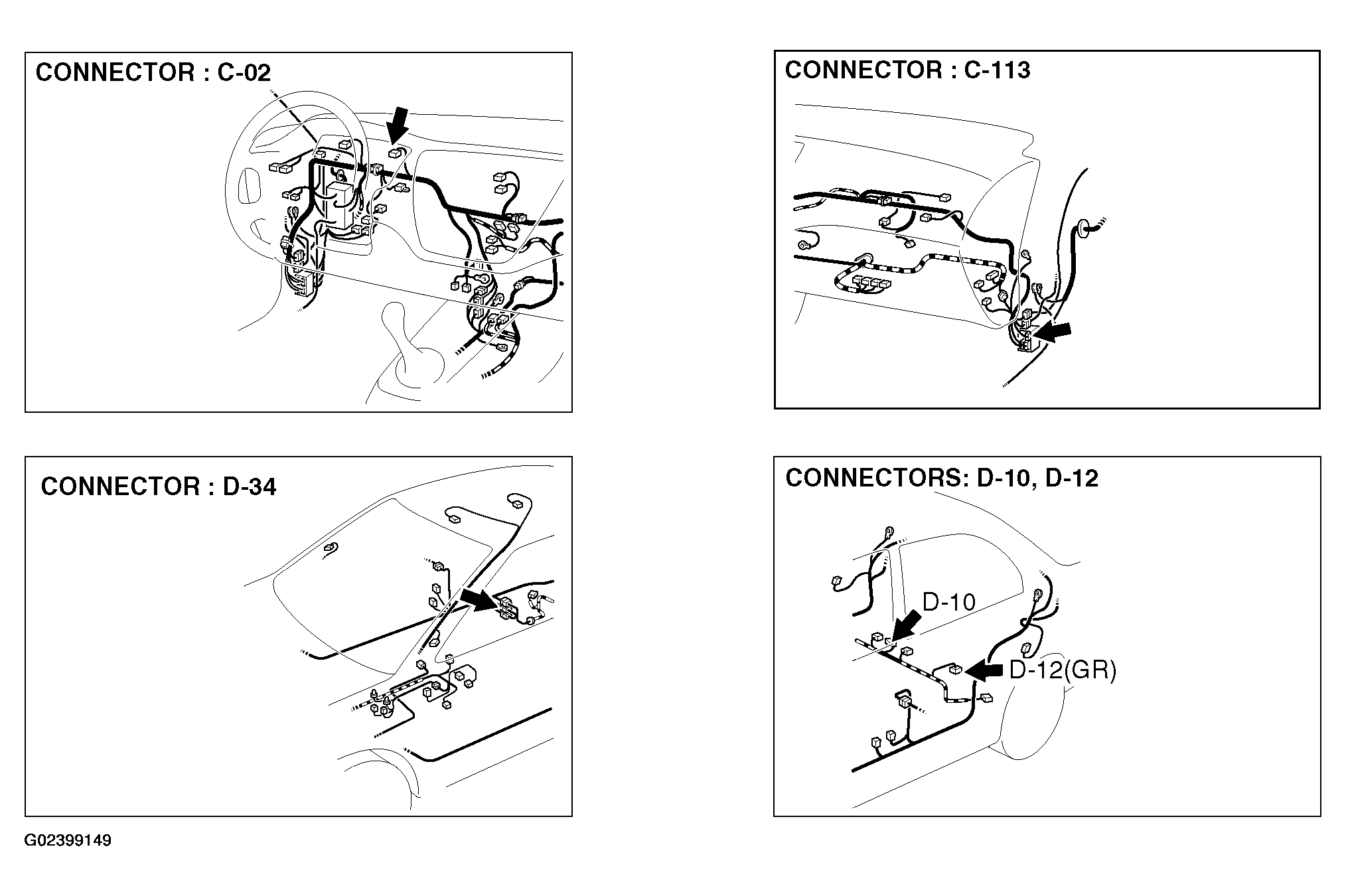

Fig 2: Identifying Connector Terminal Location
G02399149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
