Inspection Procedure O-10: The ETACS-Ecu Does Not Receive Any Interior Light Loaded Signal.: Notes

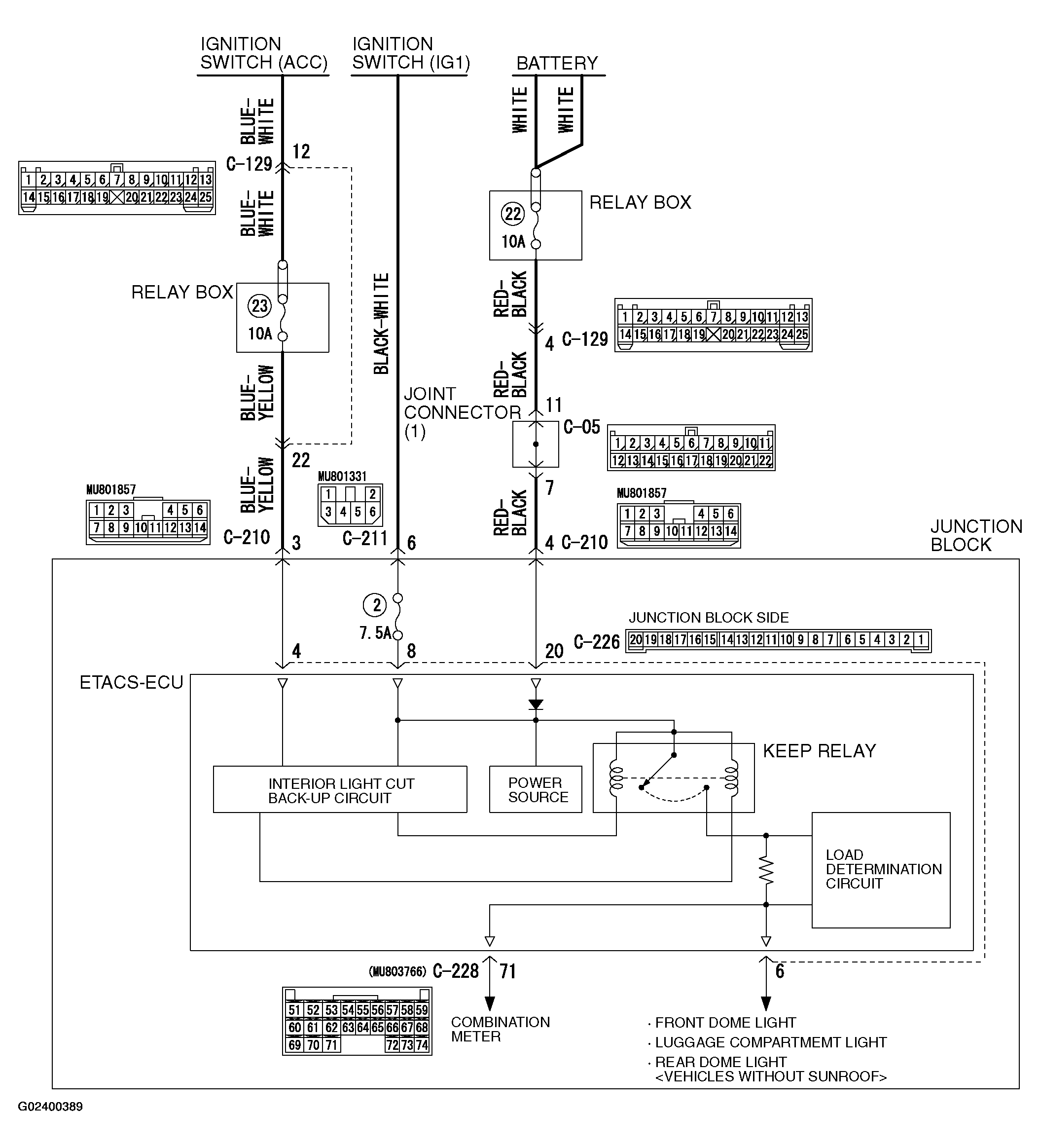

Fig 1: Interior Light Automatic Shutdown Function Circuit Diagram
G02400389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

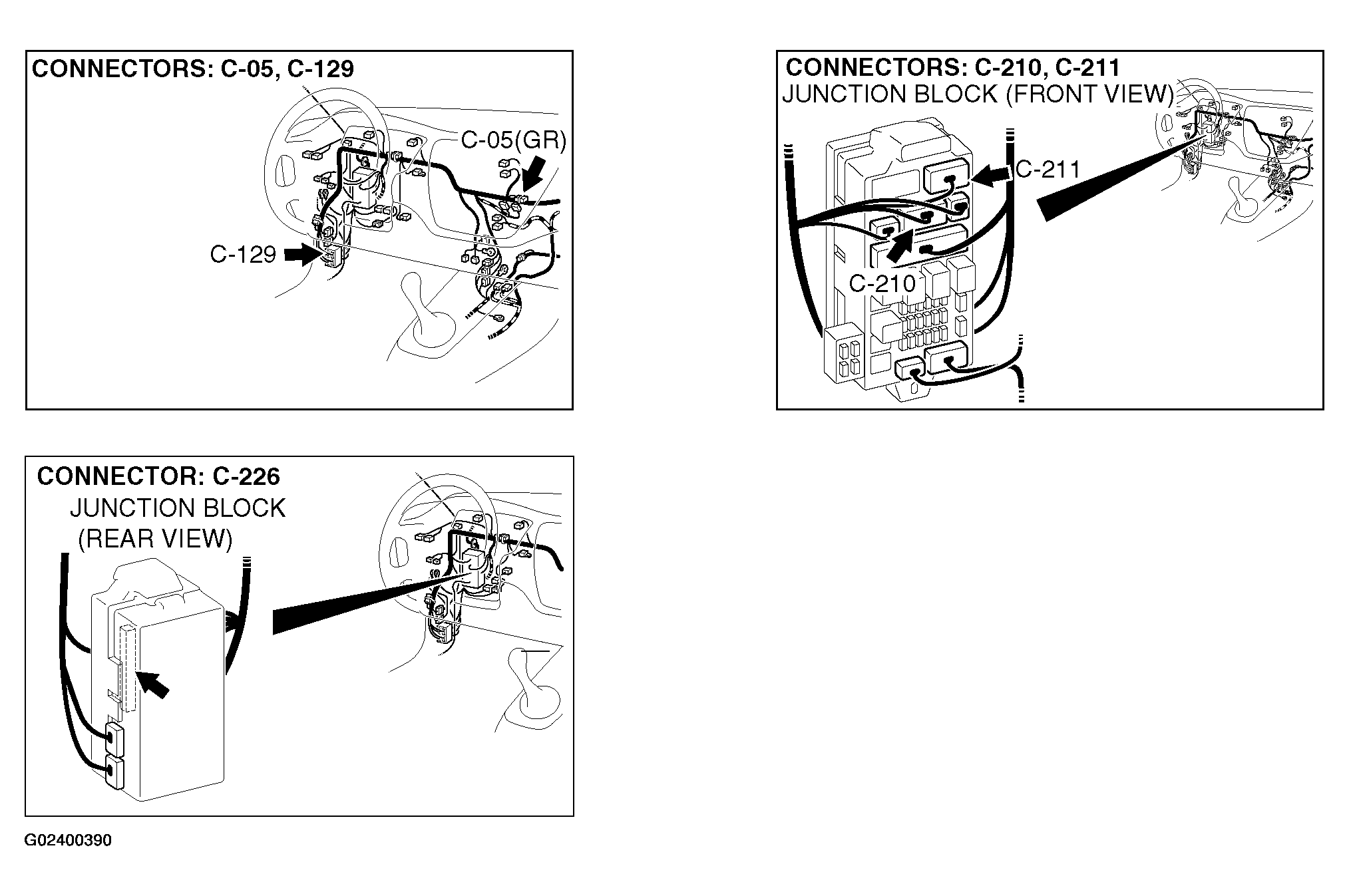

Fig 2: Identifying Connectors
G02400390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
