Inspection Procedure N-3: The ETACS-Ecu Does Not Receive Any Signal From The Fog Light Switch.: Notes

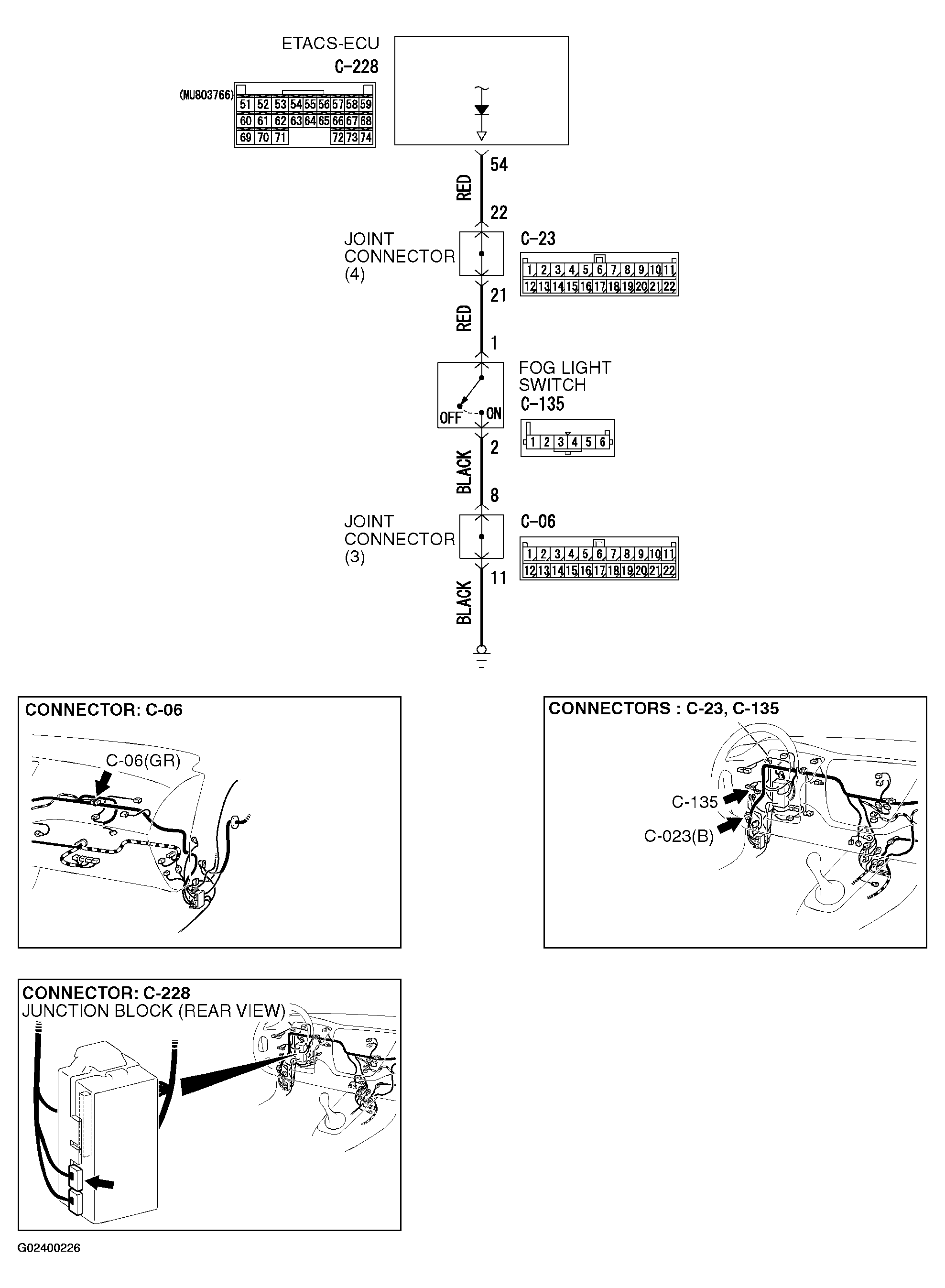

Fig 1: Fog Light Switch Input Circuit Diagram

G02400226

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
