Speed Gears

  1. Check that the helical and clutch gear tooth surfaces are not damaged or worn.
  2. Check that the synchronizer cone surfaces are not roughened, damaged or worn.
  3. Check that the gear inside diameter and front and rear surfaces are not damaged or worn.

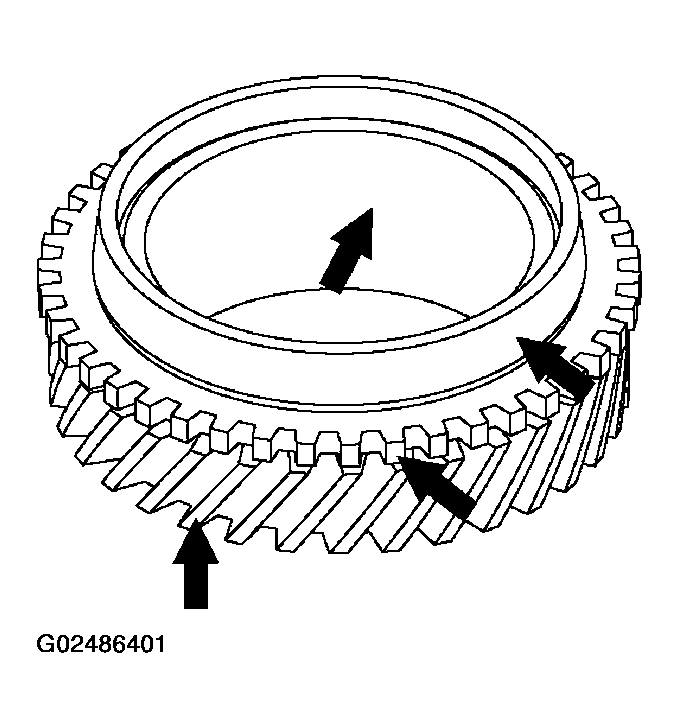

    Fig 1: Checking Speed Gears
    G02486401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
