Removal And Installation

CAUTION: For vehicles with ABS, be careful when handling the pole piece at the tip of the speed sensor so as not to damage it by striking against other parts.

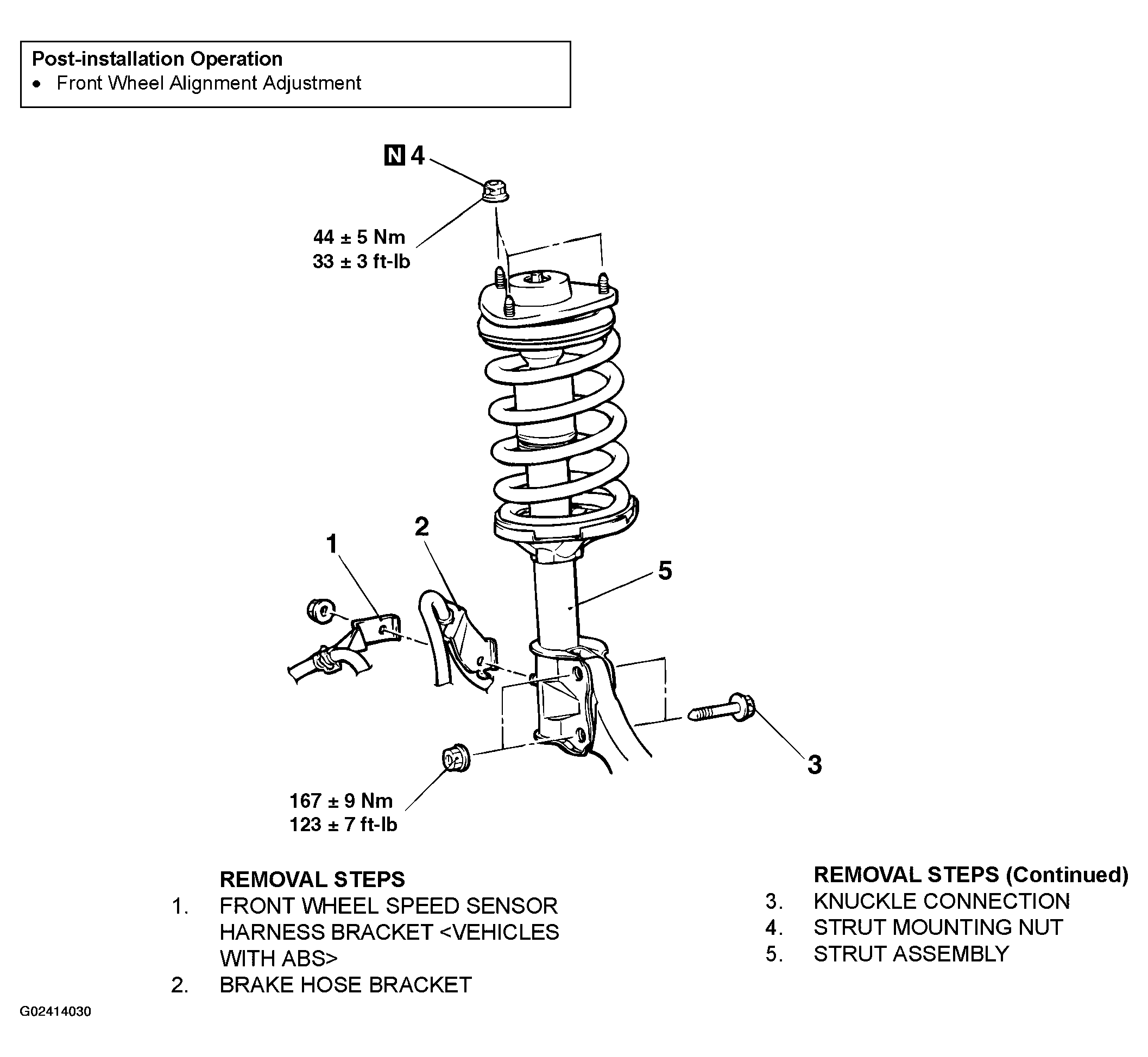

Fig 1: Removing Strut Assembly
G02414030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
