Air Bag Modules

WARNING: This page is about a different variant/trim than selected.
  1. Check the pad cover for dents, cracks or deformation.
  2. Check the connector for damage, terminals deformities, and the harness for binding.
  3. Check the air bag inflator case for dents, cracks or deformities.
  4. Install the air bag module (driver's side) to the steering wheel to check fit or alignment with the steering wheel.
  5. Install the air bag module (front passenger's side) to the instrument panel and front deck crossmember to check fit or alignment.

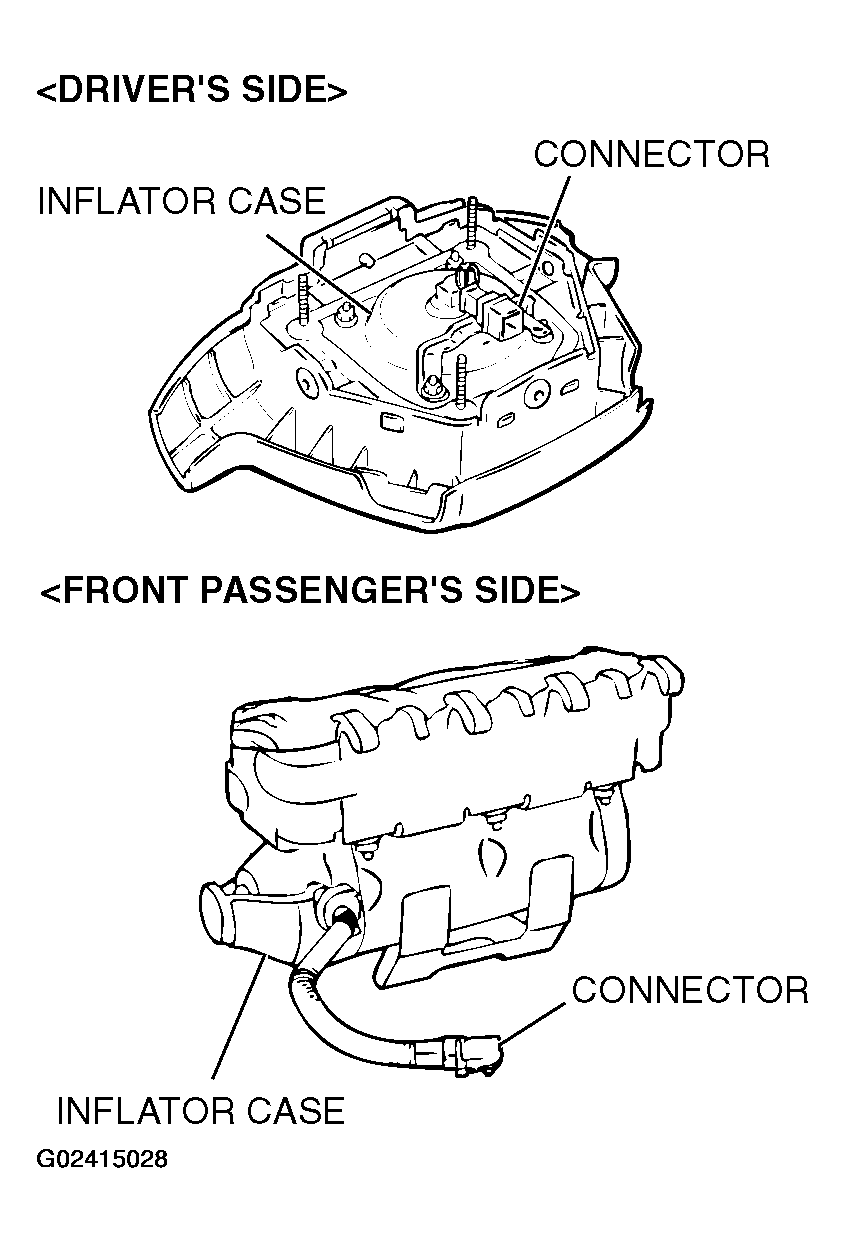

    Fig 1: Identifying Air Bag Modules Terminals
    G02415028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
