NOTE:
*: The terminal 1 to 20 connectors cannot be measured, as the ETACS-ECU is installed directly on the junction block. Therefore, this information is only for reference.

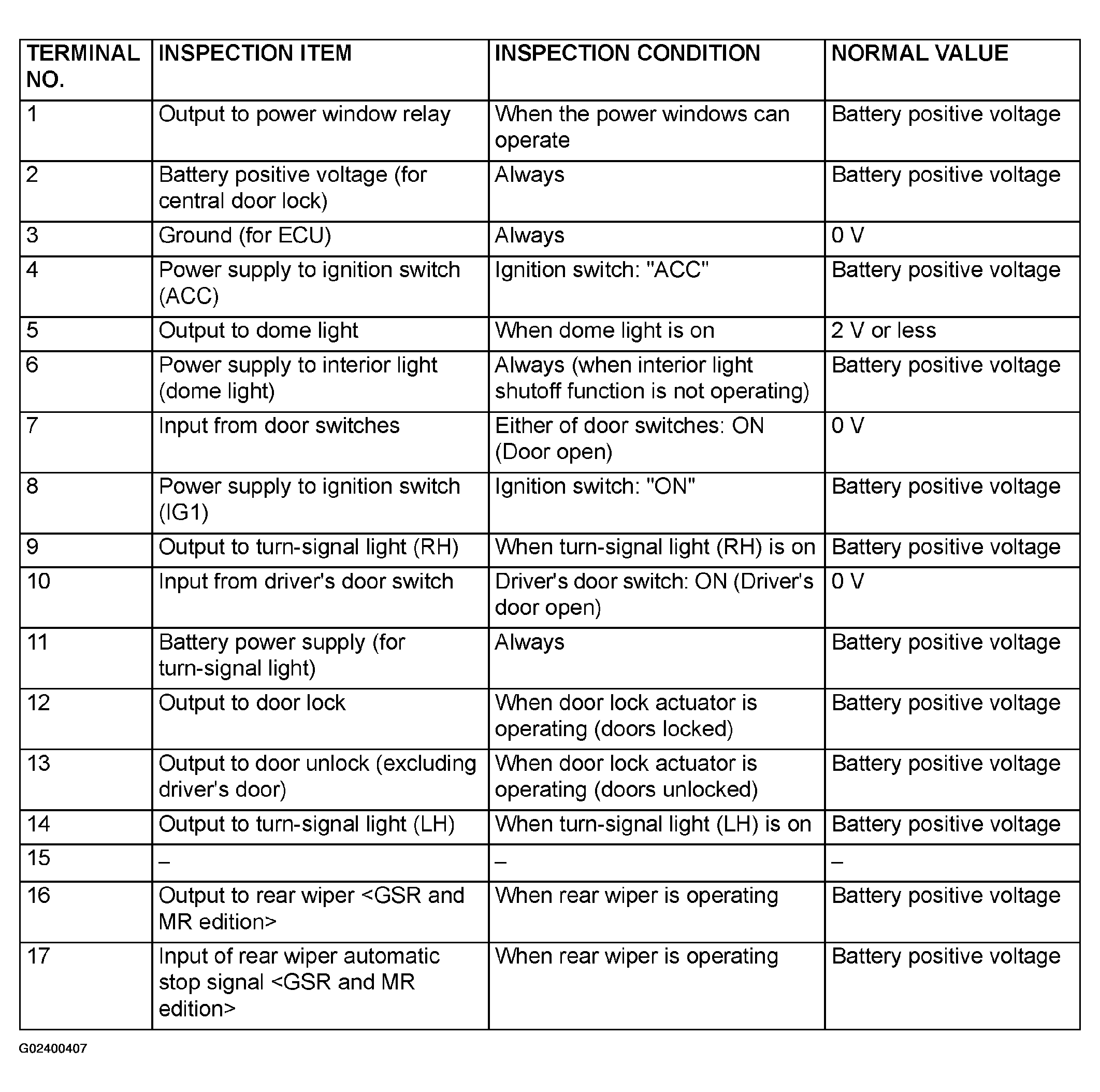

Fig 2: ETACS-ECU Terminals Reference Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

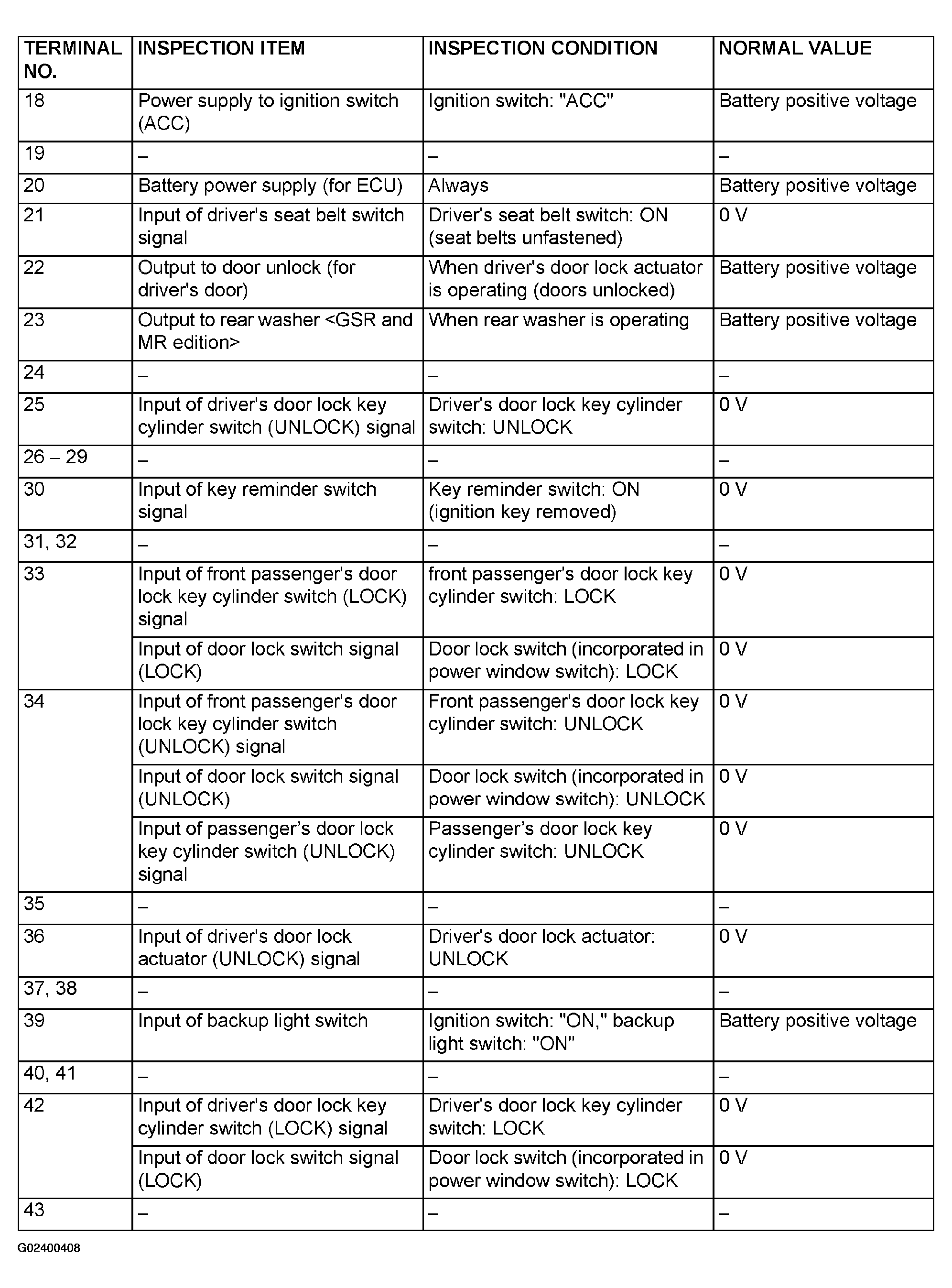

Fig 3: ETACS-ECU Terminals Reference Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

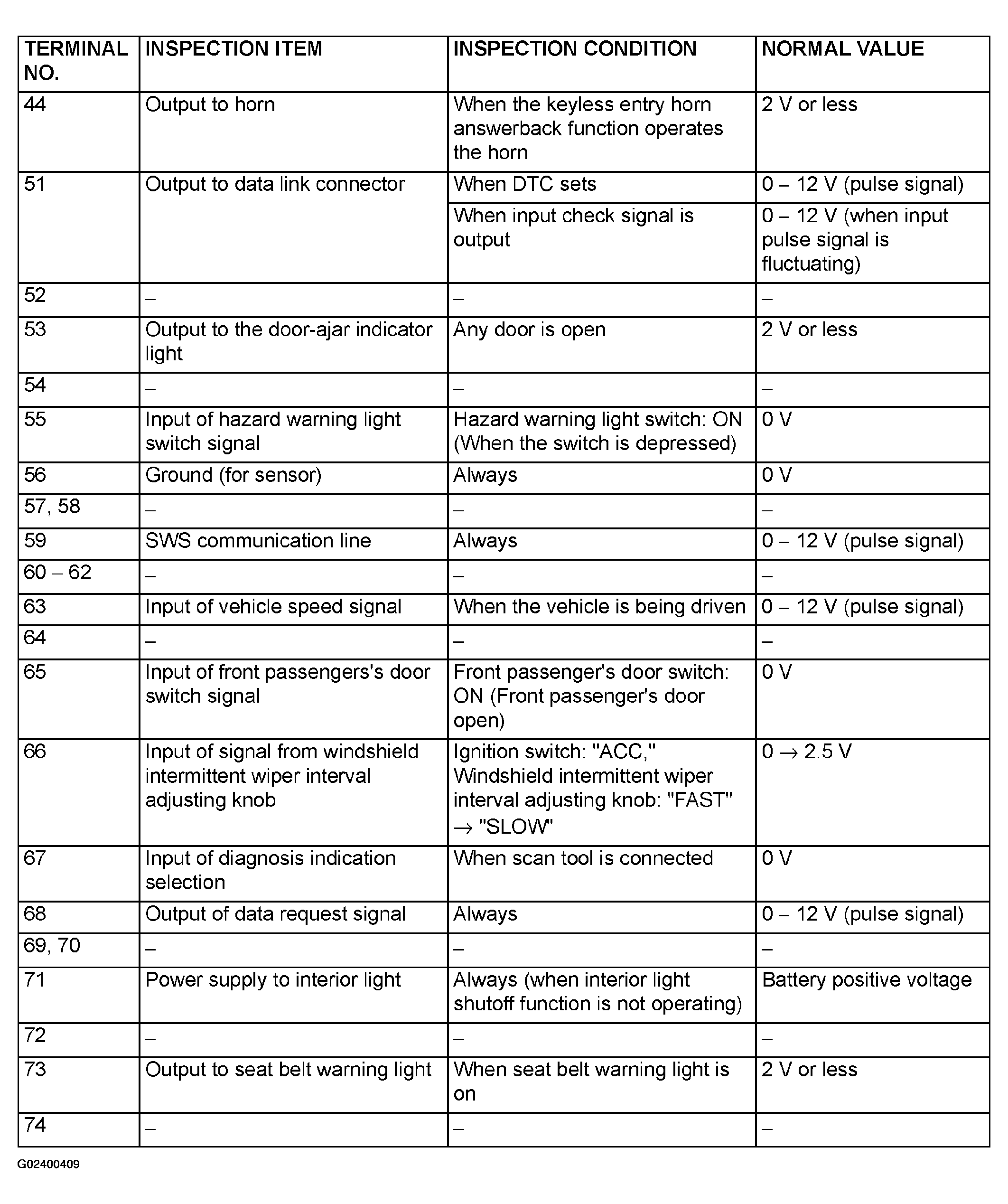

Fig 4: ETACS-ECU Terminals Reference Chart (3 Of 3)
