>> H << Control Housing Installation

CAUTION: Squeeze sealant onto the case. Do not leave gaps or excess amounts, otherwise oil leaks are likely.

Apply a 0.2 mm (0.08 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD997740 or equivalent) as illustrated onto the control housing.
NOTE: Be sure to install the housing to the case quickly while the sealant is still wet (within 15 minutes).
Install the control housing to the transaxle case and tighten the bolts to specified torque.

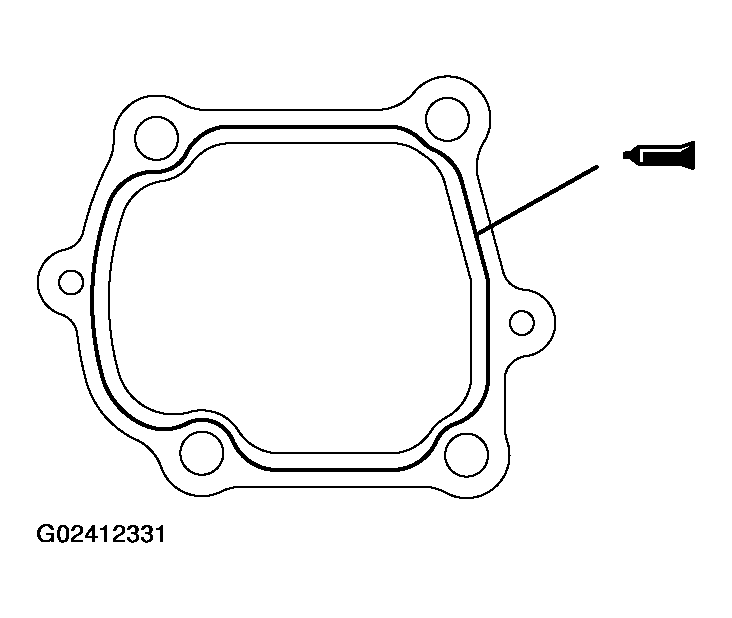

Fig 1: Applying Bead Of Sealant (Mitsubishi Genuine Part Number MD997740) Onto Control Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Tightening torque: 19 +/- 3 N.m (14 +/- 2 ft-lb)
  NOTE: After installation, keep the sealed area away from the oil for approximately one hour.
