>> E << Synchronizer Ring Installation

CAUTION: There are 3rd speed and 4th speed synchronizer rings, if the wrong one is installed it will effect the shift feeling.
  1. Ascertain whether or not there are identification notches on the synchronizer ring.
    • Two notches: 3rd speed synchronizer ring
    • No notches: 4th speed synchronizer ring
  2. Install the synchronizer ring so that it completely fits over the machined cone of the gear.

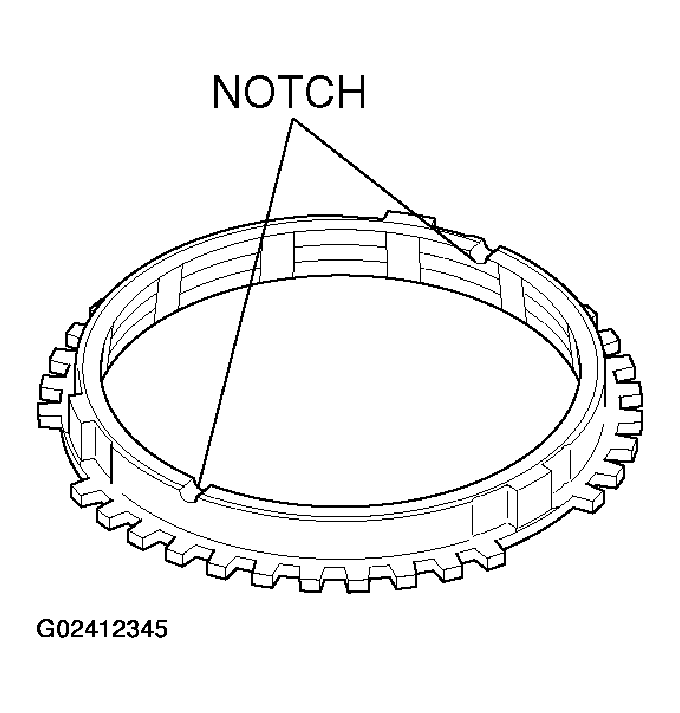

    Fig 1: Identifying Notches On Synchronizer Ring
    G02412345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
