<< A >> Lock Pin Removal

Drive out the lock pin from the direction shown in illustration.

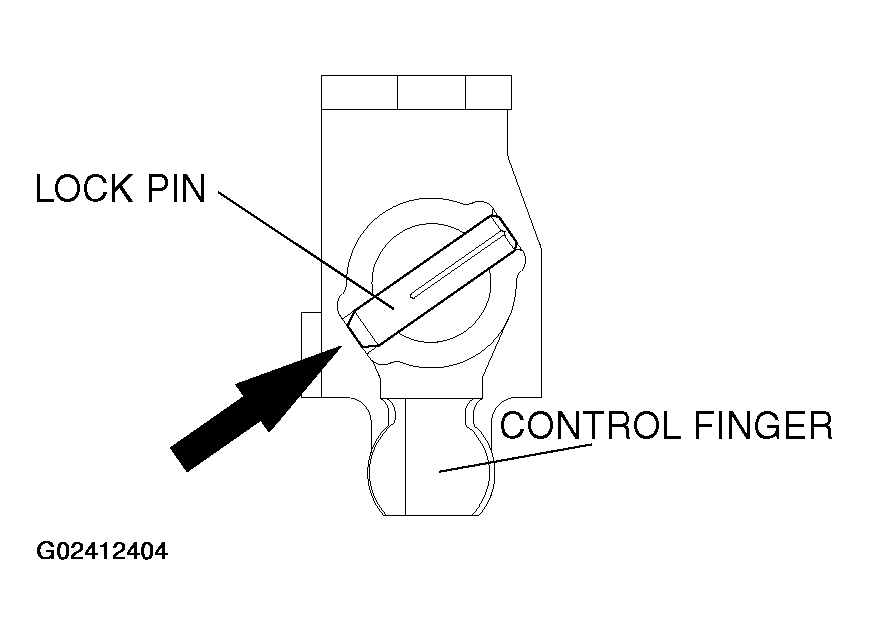

Fig 1: Identifying Lock Pin Removal Direction

G02412404

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
