>> E << Lock Pin Installation

Drive the lock pin in from the direction shown in the illustration.

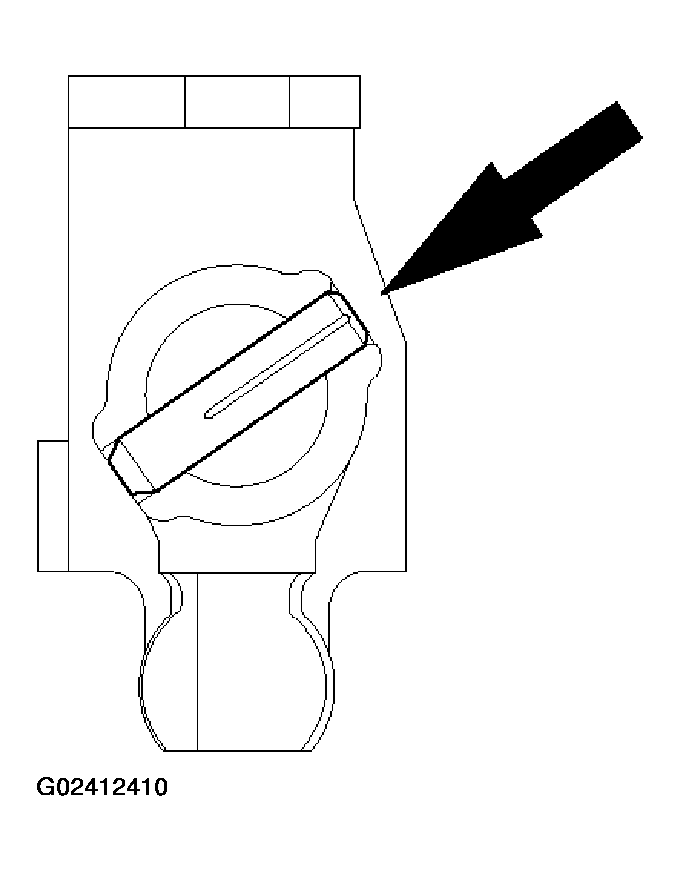

Fig 1: Identifying Lock Pin Drive Direction

G02412410

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
