Rear Wheel Alignment Check And Adjustment: Toe-In

• Standard value: 3 +/- 2 mm (0.12 +/- 0.08 inch)

If toe-in is not within the standard value, adjust by following procedures.

1. Be sure to adjust the camber before making toe adjustment.
2. Carry out adjustment by turning the toe adjusting bolt (control link mounting bolt which is located on the inner side of the body).
   NOTE:

   • LH: Clockwise viewed from the rear --> Toe-out
   • RH: Clockwise viewed from the rear --> Toe-in
   • Toe adjustment can be made at graduations of approximately 2.6 mm (0.10 inch).

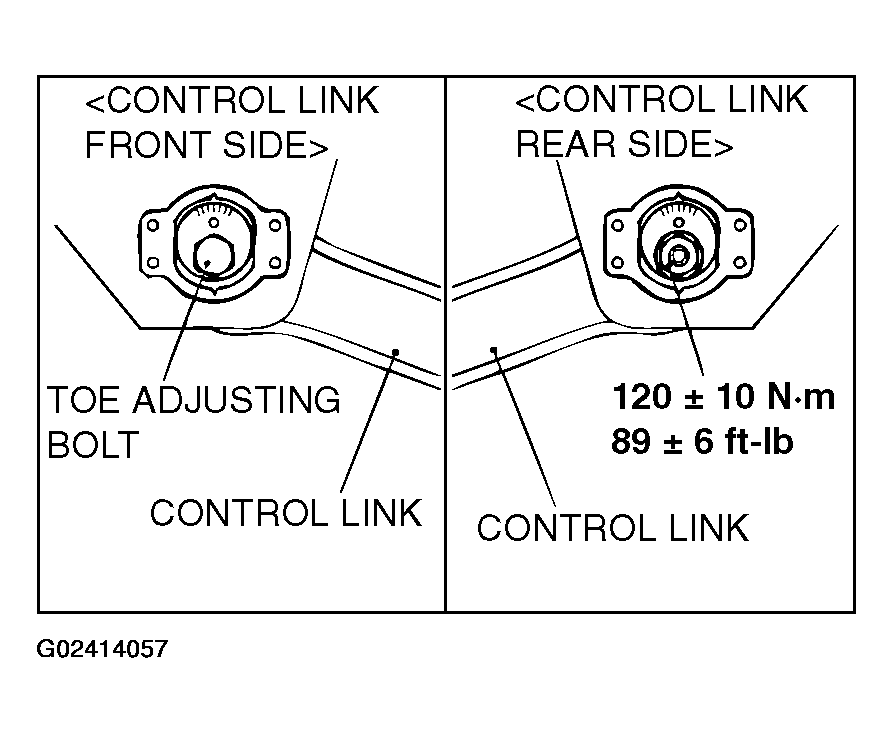

   Fig 1: Identifying Toe Adjusting Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
