Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

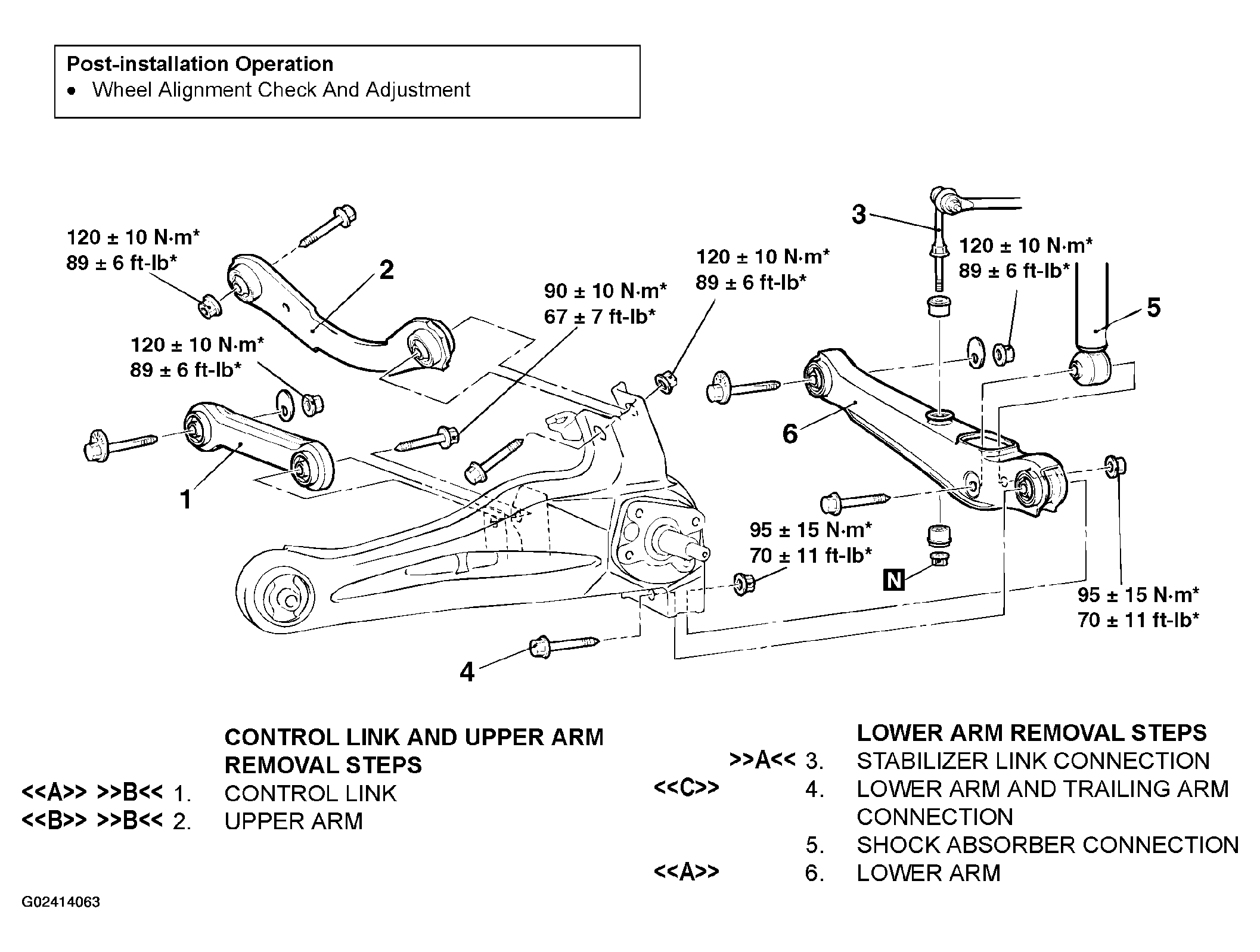

Fig 1: Removing Control Link, Upper Arm And Lower Arm
G02414063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
