Service Specifications

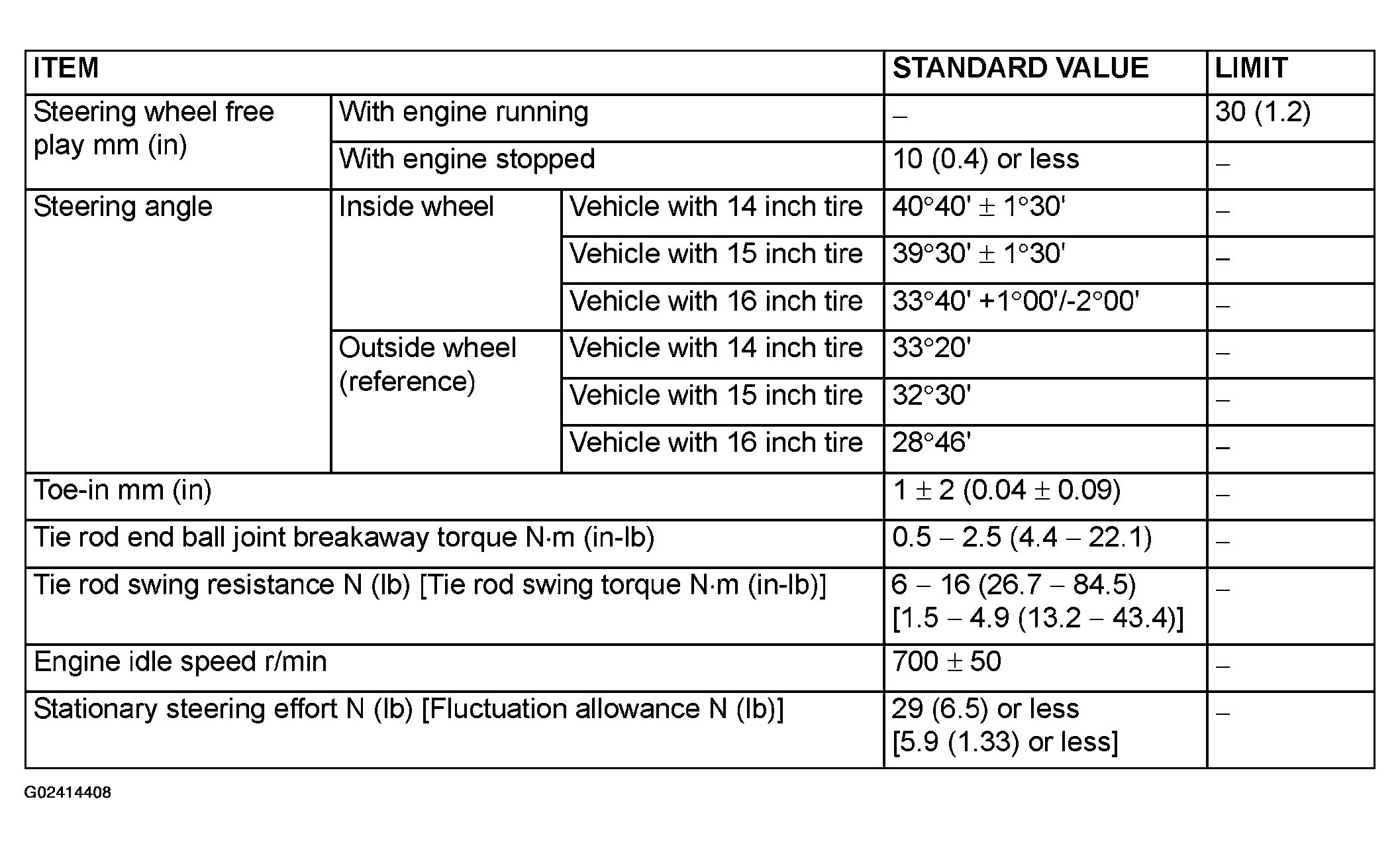

Fig 1: Service Specifications Chart (1 Of 2)
G02414408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

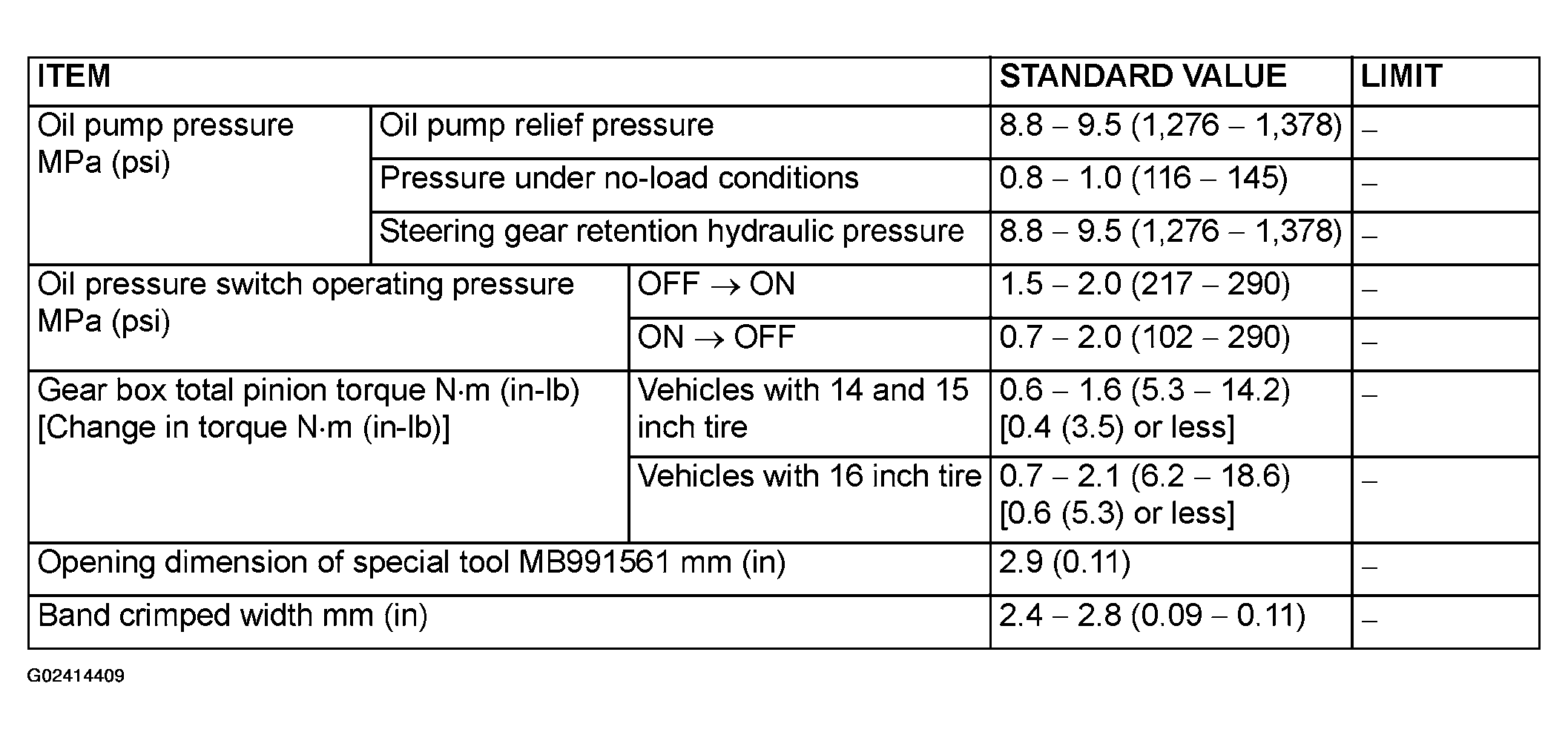

Fig 2: Service Specifications Chart (2 Of 2)
G02414409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
