Home
>>
Mitsubishi
>>
2005
>>
Lancer ES, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Power Steering -- Except Evolution
>>
Special Tools
Special Tools

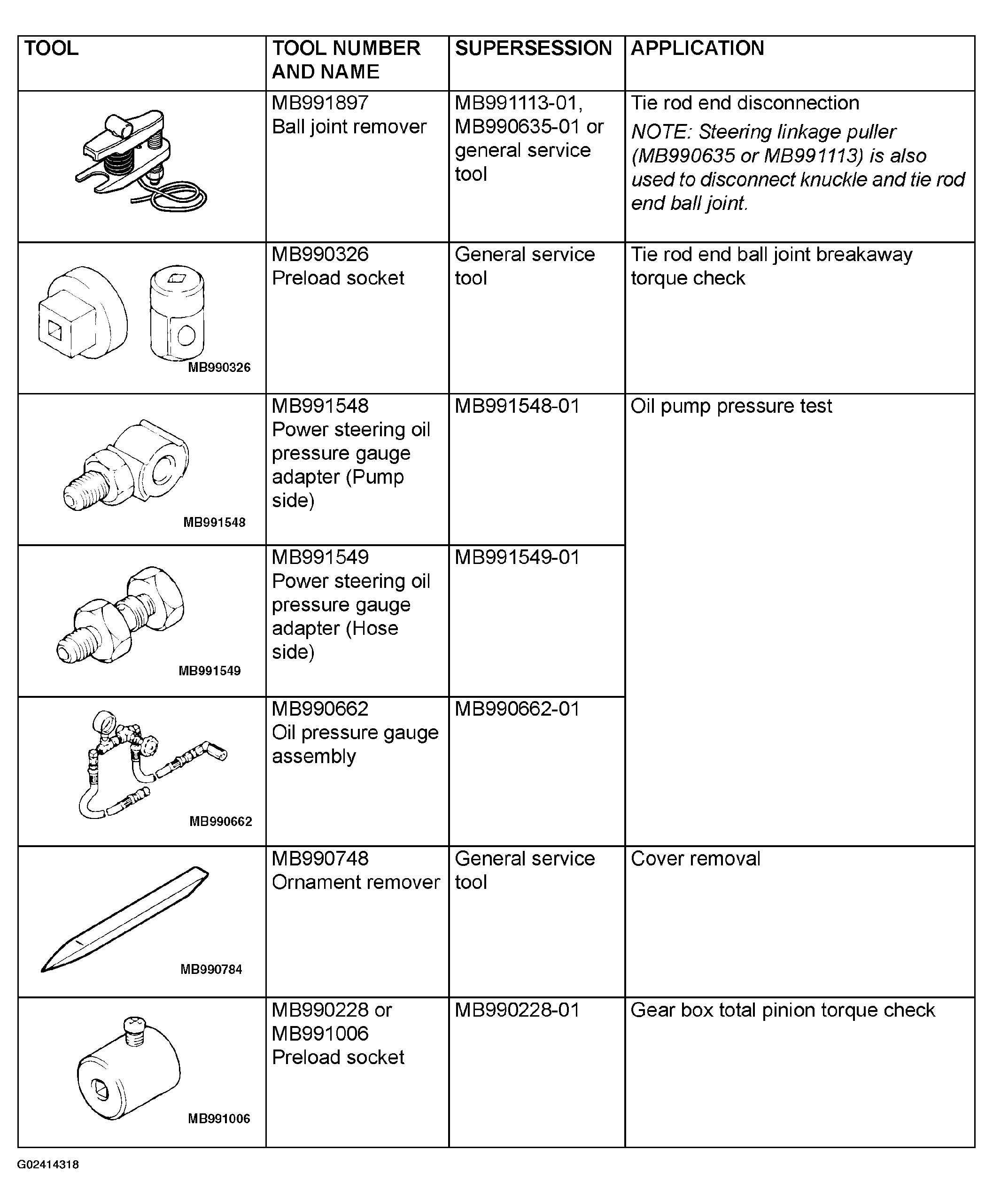

Fig 1: Special Tools Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

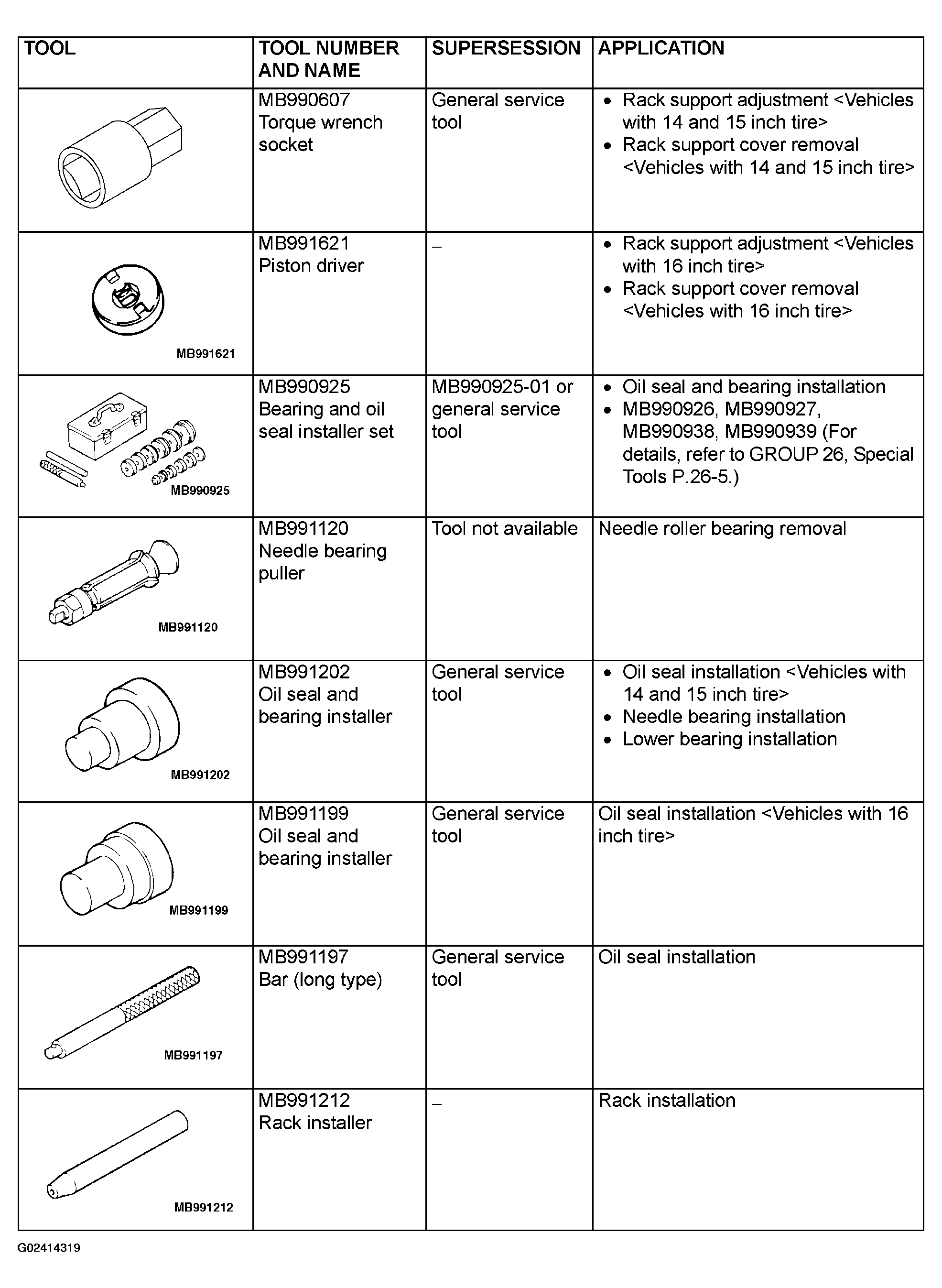

Fig 2: Special Tools Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

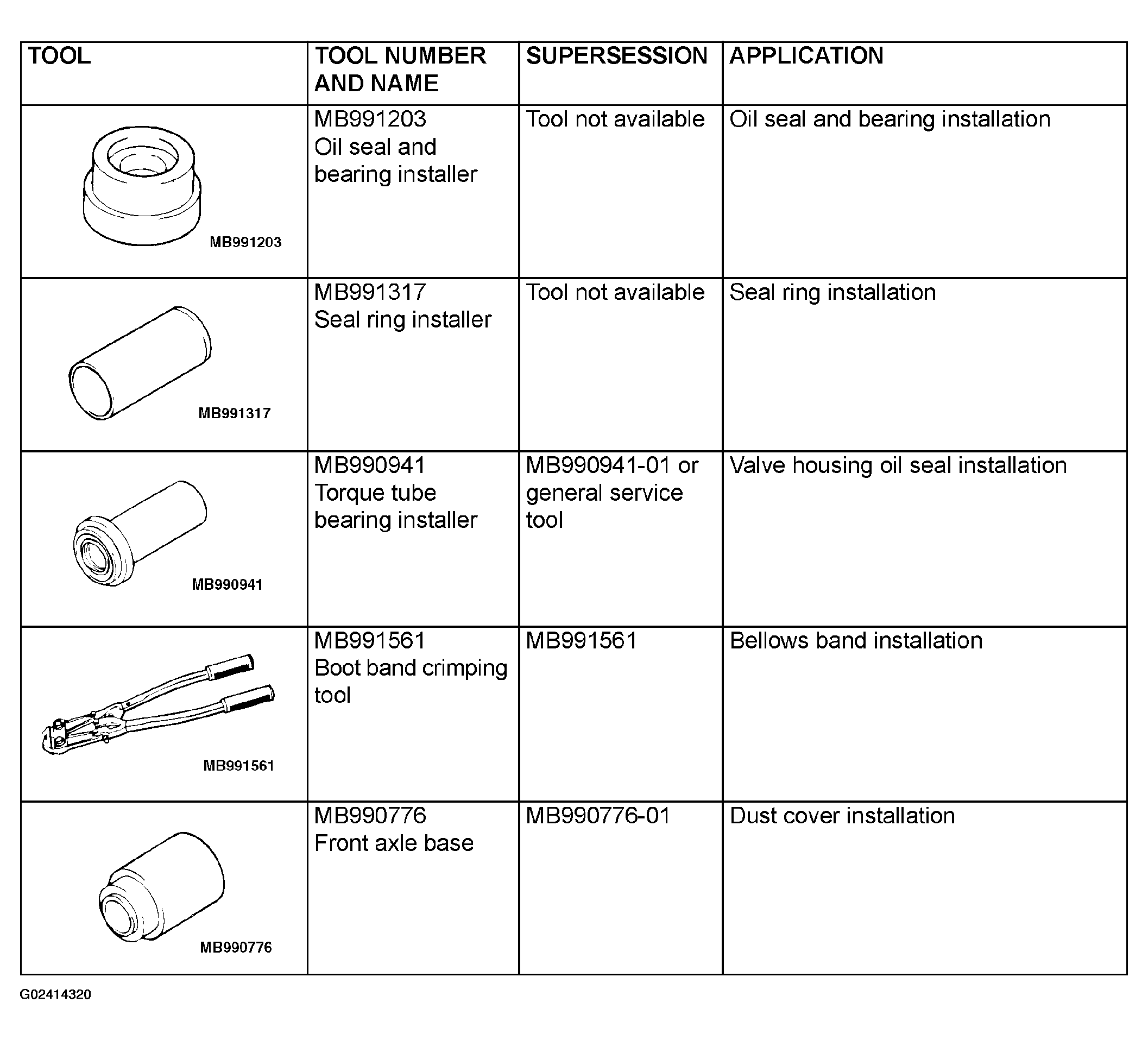

Fig 3: Special Tools Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
