Removal And Installation: Notes

WARNING:

Before removing the air bag module, Refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
When removing and installing the steering wheel, do not let it bump against the air bag module.

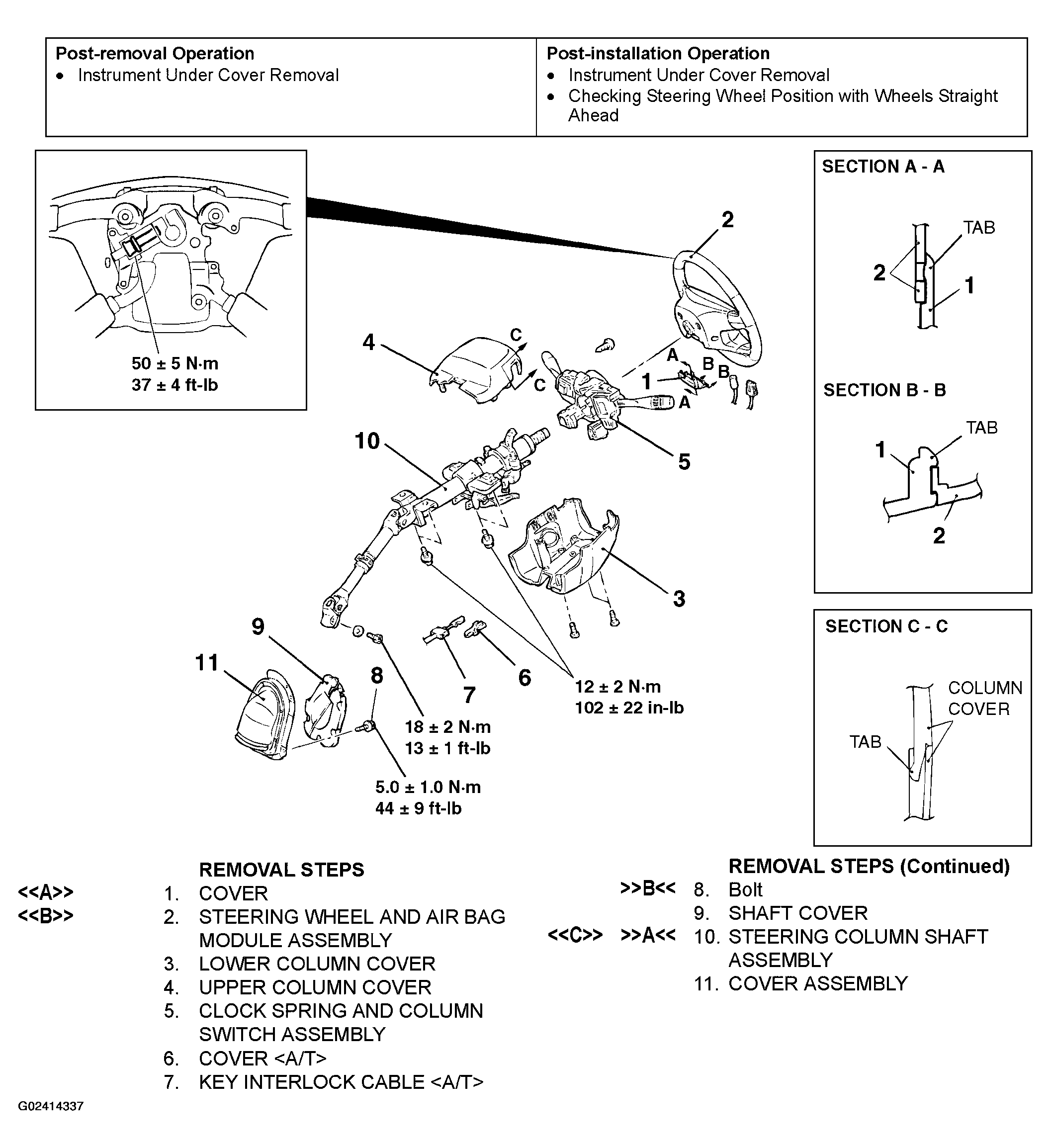

Fig 1: Removing Steering Wheel And Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
